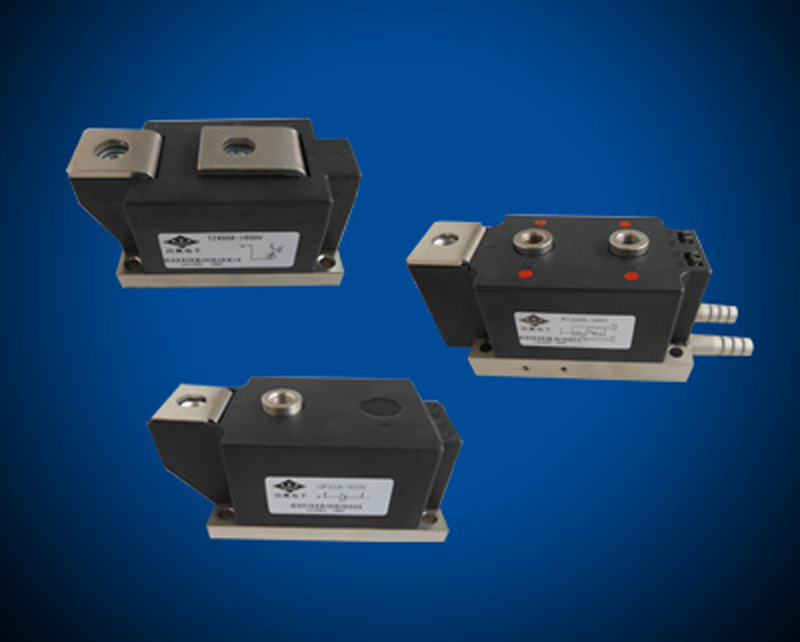

High Quality Power Semiconductor Module for Power Control (Thyristors Module)

Name: High Quality Power Semiconductor Module for Power Control (Thyristors Module)
Brand: all-electronics-online.com
SKU: 706808382
Availability: InStock
Rating: 5 (33 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Thyristors Module

Product Description

Name: Power Semiconductor Module
AC-DC motor control,various rectifier power,industrial heating,soft starter,ect.

Thyristors Module

Model	I_T_(AV)@TC		V_DRM	V_TM@ I_TM		I_DRM	I_GT	V_GT	I_H	dv/dt	di/dt	I_TSM	V_TO	rT	Rjc	T_jm	V_iso	Outline
	I_T_(AV)@TC		V_RRM	V_TM@ I_TM		_IRRM	I_GT	V_GT	I_H	dv/dt	di/dt	I_TSM	V_TO	rT	Rjc	T_jm	V_iso
	A	ºC	V	V	A	mA	mA	V	mA	v/μs	A/μs	A*1K	V	mΩ	ºC	ºC	V(A.C)
MTC MTX MTK MTA	26	80	600-1800	1.7	80	5	100	1.5	150	800	50	0.55	0.85	9.68	0.0950	125	2500	M220Y3
	40	80	600-1800	1.7	120	5	100	1.5	150	800	50	1.0	0.85	5.57	0.0650	125	2500	M220Y3
	55	80	600-1800	1.7	170	5	100	1.5	150	800	50	1.25	0.85	3.47	0.0530	125	2500	M220Y3
	70	80	600-1800	1.7	210	8	100	1.5	150	800	50	1.6	0.80	2.64	0.410	125	2500	M220Y3
	90	85	600-1800	1.7	270	8	100	1.5	150	800	100	2.0	0.80	3.01	0.280	125	2500	M220Y3
	110	85	600-1800	1.7	330	10	100	1.5	150	800	100	2.4	0.80	2.29	0.250	125	2500	M220Y3
	135	85	600-1800	1.7	405	15	100	2.5	150	800	100	3.8	0.80	1.85	0.200	125	2500	M234Y3
	160	85	600-1800	1.7	480	20	120	2.5	150	800	100	5.4	0.80	1.69	0.170	125	2500	M234Y3
	182	85	600-1800	1.7	546	20	120	2.5	150	800	100	5.8	0.80	1.26	0.160	125	2500	M234Y3
	200	85	600-1800	1.7	600	25	120	2.5	150	800	100	7.2	0.80	1.27	0.140	125	2500	M453Y3
	250	85	600-1800	1.7	750	25	120	2.5	150	800	100	8.5	0.80	0.85	0.120	125	2500	M453Y3
	300	85	600-1800	1.7	900	25	120	2.5	150	800	100	9.3	0.80	0.72	0.100	125	2500	M453Y3
	350	85	600-1800	1.7	1050	30	120	2.5	150	800	100	11	0.80	0.36	0.090	125	2500	M453Y3
	400	85	600-1800	1.6	1200	35	120	2.5	150	800	100	12	0.80	0.39	0.080	125	2500	M463Y3
	400	55	600-1800	1.6	1200	30	120	2.5	150	800	100	8.5	0.80	0.8	0.110	125	2500	M453S
	500	85	600-1800	1.6	1500	40	120	2.5	150	800	100	16	0.80	0.34	0.065	125	2500	M463Y3
	500	55	600-1800	1.6	1500	40	120	2.5	150	800	100	11	0.80	0.64	0.087	125	2500	M463Y3
	600	85	600-1800	1.6	1800	40	120	2.5	150	800	100	18	0.80	0.23	0.060	125	2500	M466Y3
	600	55	600-1800	1.6	1800	40	120	2.5	150	800	100	13	0.80	0.53	0.073	125	2500	M466S
	800	85	600-1800	1.6	2400	40	120	2.5	150	800	100	20	0.80	0.2	0.054	125	2500	M476Y3
	800	55	600-1800	1.6	2400	40	120	2.5	150	800	100	16	0.80	0.42	0.054	125	2500	M476S
	1000	85	600-1800	1.6	3000	50	120	2.5	150	800	100	22	0.80	0.09	0.053	125	2500	M477Y3

Diodes Modules

Model	I_F(AV)	T_C	V_RRM	V_FM@ I_FM		I_RRM	I_F(RMS)	I_FSM	I²t	V_FO	rF	Rjc	Tjm	Viso	Outline
Model	A	ºC	V	V	A	mA	A/μs	A*1K	A²S*10⁴	V	mΩ	ºC/W	ºC	V(A.C)	Outline
MDC MDK MDA	26	100	600-1800	1.45	80	5	41	0.65	0.21	0.8	9.8	1.30	150	2500	M220Y3
	40	100	600-1800	1.45	120	5	63	1.0	0.51	0.8	5.57	0.90	150	2500	M220Y3
	55	100	600-1800	1.45	170	5	86	1.3	0.86	0.8	3.47	0.70	150	2500	M220Y3
	70	100	600-1800	1.45	210	5	110	1.8	1.65	0.8	2.50	0.57	150	2500	M220Y3
	90	100	600-1800	1.45	270	5	141	2.3	2.69	0.8	1.70	0.47	150	2500	M220Y3
	110	100	600-1800	1.45	330	5	173	2.6	3.44	0.8	1.74	0.35	150	2500	M220Y3
	135	100	600-1800	1.45	405	10	212	3.9	7.75	0.8	1.48	0.31	150	2500	M234Y3
	160	100	600-1800	1.45	480	10	251	6.0	18.4	0.8	1.35,	0.23	150	2500	M234Y3
	182	100	600-1800	1.45	546	10	286	6.4	20.9	0.8	0.96	0.22	150	2500	M234Y3
	200	100	600-1800	1.45	600	20	314	8.0	32.6	0.75	0.88	0.21	150	2500	M234Y3
	250	100	600-1800	1.45	750	20	393	11.0	61.7	0.75	0.76	0.14	150	2500	M453Y3
	300	100	600-1800	1.45	900	20	471	12.5	79.7	0.75	0.55	0.13	150	2500	M453Y3
	350	100	600-1800	1.45	1050	25	550	15.0	115	0.75	0.61	0.11	150	2500	M453Y3
	400	100	600-1800	1.35	1200	30	628	15.8	147	0.75	0.50	0.10	150	2500	M463Y3
	500	100	600-1800	1.35	1500	30	785	16.5	160	0.75	0.32	0.09	150	2500	M463Y3
	600	100	600-1800	1.35	1500	30	942	17.0	174	0.75	0.30	0.085	150	2500	M466Y3
	800	100	600-1800	1.35	2400	40	1256	18.0	182	0.75	0.15	0.08	150	2500	M476Y3
	1000	100	600-1800	1.35	3000	40	1570	20.0	204	0.65	0.10	0.075	150	2500	M477Y3

Thyristors/Diodes Modules

Model	I_T(AV)	TC	V_DRM	V_TM@ I_TM		I_DRM	IGT	VGT	IH	di/dt	ITSM IFSM	VTO	rT	Rjc	Tjm	Viso	Outline
	I_F(AV)	TC	V_RRM	VFM@ I_FM		I_RRM	IGT	VGT	IH	di/dt		VTO	rT	Rjc	Tjm	Viso
	A	ºC	V	V	A	mA	mA	V	mA	A/μs	A*1K	V	mΩ	ºC/W	ºC	V(A.C)
MFC MFX MFK MFA	26	85	600-1800	1.7	80	5	100	1.5	150	50	0.55	0.85	9.68	0.95	125	2500	M220Y3
	40	85	600-1800	1.7	120	5	100	1.5	150	50	1.0	0.85	5.57	0.65	125	2500	M220Y3
	55	85	600-1800	1.7	170	5	100	1.5	150	50	1.25	0.85	3.47	0.53	125	2500	M220Y3
	70	85	600-1800	1.7	210	8	100	1.5	150	100	1.6	0.80	2.64	0.41	125	2500	M220Y3
	90	85	600-1800	1.7	270	8	100	1.5	150	100	2.0	0.80	3.01	0.28	125	2500	M220Y3
	110	85	600-1800	1.7	330	10	100	1.5	150	100	2.4	0.80	2.29	0.25	125	2500	M220Y3
	135	85	600-1800	1.7	405	15	100	2.5	150	100	3.8	0.80	1.85	0.20	125	2500	M234Y3
	160	85	600-1800	1.7	480	20	120	2.5	150	100	5.4	0.80	1.69	0.17	125	2500	M234Y3
	182	85	600-1800	1.7	546	20	120	2.5	150	100	5.8	0.80	1.26	0.16	125	2500	M234Y3
	200	85	600-1800	1.7	600	25	120	2.5	150	100	7.2	0.80	1.27	0.14	125	2500	M453Y3
	250	85	600-1800	1.7	750	25	120	2.5	150	100	8.5	0.80	0.85	0.12	125	2500	M453Y3
	300	85	600-1800	1.7	900	25	120	2.5	150	100	9.3	0.80	0.72	0.1	125	2500	M453Y3
	350	85	600-1800	1.7	1050	30	120	2.5	150	100	11.0	0.80	0.36	0.09	125	2500	M453Y3
	400	85	600-1800	1.6	1200	35	120	2.5	150	100	12.0	0.80	0.39	0.08	125	2500	M463Y3
	500	85	600-1800	1.6	1500	40	120	2.5	150	100	16.0	0.80	0.34	0.065	125	2500	M463Y3
	600	85	600-1800	1.6	1800	40	120	2.5	150	100	18.0	0.80	0.23	0.06	125	2500	M466Y3
	800	85	600-1800	1.6	2400	40	120	2.5	150	100	20.0	0.80	0.20	0.054	125	2500	M476Y3
	1000	85	600-1800	1.6	3000	50	120	2.5	150	100	22.0	0.80	0.09	0.053	125	2500	M477Y3

High reliability Thyristors Modules

Model	I_T(AV)@85	V_RRM V_DRM(max)	I_DRM I_RRM(max)	V_TM(max)	I_GT@ 25ºC (max)	VGT@25ºC (max)	IH@ 25ºC (max)	dv/dt(min)	V_ISO(min)	T_jm	Overall
Model	A	V	mA	V	mA	V	mA	V/μs	V	ºC
TT TT-K TT-A	57A	800-2200	5	1.5	25-80	0.8-1.5	25-70	1000	3000	125	T1
	92A	800-2200	7	1.5	25-80	0.8-1.5	25-70	1000	3000	125	T1
	106A	800-2600	10	1.6	30-80	0.8-2.0	25-70	1000	3000	125	T2
	162A	800-2600	10	1.6	30-80	0.8-2.0	25-70	1000	3500	125	T2
	200A	800-3000	10	1.65	30-85	0.8-2.0	30-80	1000	3500	125	T2
	250A	800-3000	10	1.65	30-85	0.8-2.0	30-100	1000	3500	125	T3
	300A	800-3000	10	1.7	30-85	0.8-2.0	30-100	1000	4500	125	T4
	400A	800-3600	15	1.7	30-85	0.8-2.0	30-100	1000	4500	125	T5
	450A	800-3600	15	1.7	30-85	0.8-2.0	30-100	1000	4500	125	T6
	500A	800-3600	20	1.8	30-90	0.8-2.0	30-100	1000	4500	125	T7
	570A	800-3600	20	1.8	30-90	0.8-2.0	30-100	1000	4500	125	T8

High reliability Diodes Modules

Model	IF(AV)@85ºC	VRRM	IRRM(max)	VFM(max)	VISO(min)	Tjm	Overall
Model	A	V	mA	V	V	ºC	Overall
DD DD-K DD-A	57A	800-2600	4	1.3	3000	150	T1
	92A	800-2600	4	1.3	3000	150	T1
	106A	800-2600	5	1.5	3000	150	T1
	162A	800-2600	5	1.5	3000	150	T2
	200A	800-2600	5	1.5	3500	150	T2
	250A	800-3000	7	1.5	3500	150	T3
	300A	800-3600	7	1.5	3500	150	T3
	400A	800-3600	7	1.5	4500	150	T4
	450A	800-3600	10	1.5	4500	150	T4
	500A	800-3600	10	1.5	4500	150	T4
	570A	800-3600	15	1.5	4500	150	T4

Thyristors/Diodes Modules

Model	I_T(AV)@85ºC	V_DRM V_RRM	I_DRM I_RRM(max)	V_TM/V_FM(max)	IGT@ 25ºC(max)	VGT@ 25ºC(max)	IH@ 25ºC(max)	dv/dt(min)	V_ISO(min)	Tjm	Overall
Model	A	V	mA	V	mA	V	mA	V/μS	V	ºC	Overall
TD DT TD-A TD-K	57	800-2000	5	1.5/1.3	25-80	0.8-1.5	25-70	500	3000	125	T1
	92	800-2000	7	1.5/1.3	25-80	0.8-1.5	25-70	500	3000	125	T1
	106	800-2000	10	1.6/1.5	30-80	0.8-2.0	25-70	500	3000	125	T1
	162	800-2000	10	1.6/1.5	30-80	0.8-2.0	25-70	500	3000	125	T2
	200	800-2600	15	1.7/1.5	30-85	0.8-2.0	30-80	500	3000	125	T2
	250	800-3000	15	1.7/1.5	30-85	0.8-2.0	30-100	500	3500	125	T3
	300	800-3000	15	1.7/1.5	30-85	0.8-2.0	30-100	500	3500	125	T3
	400	800-3600	15	1.7/1.5	30-85	0.8-2.0	30-100	500	4500	125	T4
	450	800-3600	15	1.7/1.5	30-85	0.8-2.0	30-100	500	4500	125	T4
	500	800-3600	20	1.8/1.5	30-90	0.8-2.0	30-100	500	4500	125	T4
	570	800-3600	20	1.8/1.5	30-90	0.8-2.0	30-100	500	4500	125	T4

PV Diode Module

Model	I_FAV	V_RRM	R_THj-c(ºC/W)	Overall
Model	A	V	ºC/W	MM
MD160-1600	160	1600	0.21	943436
MD250-1600	250	1600	0.14	1155353
MD300-1600	300	1600	0.09	1155353
MD400-1600	400	1600	0.07	1155353
