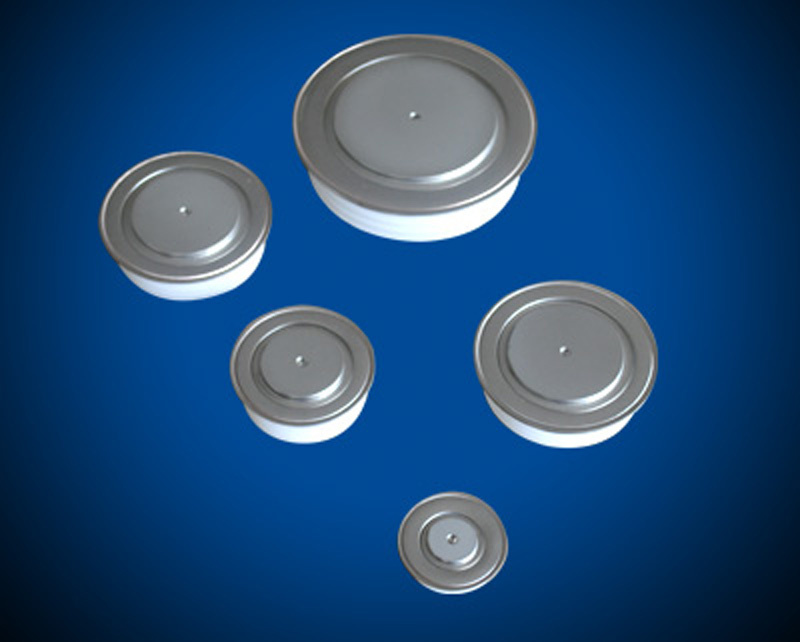

High Quality General Purpose Diode Thyristor (ZP Series)

Name: High Quality General Purpose Diode Thyristor (ZP Series)
Brand: all-electronics-online.com
SKU: 706807132
Availability: InStock
Rating: 4.8 (96 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZP Series

Product Description

Name: General Purpose Diode
Locomotive,traction,HVDC,TSC,VAR, high current power,soft starter,induction heat

ZP Series

Type	VRRM	IF(AV)	IFSM@ TVJM&10ms	IRRM(max)&Tj=Tjmax	VFM(max)@			Rthjc	F±10%	Outline
Type	V	A	KA	mA	A	V	ºC	K/W	KN	Outline
ZP300	1000-1800	300	4.8	30	900	1.6	150	0.11	5	ZT26
ZP200	2000-3000	200	3.2	30	600	1.6	150	0.11	5	ZT26
ZP500	1000-1800	500	8.0	30	1500	1.5	150	0.06	10	ZT30
ZP300	2000-3200	300	5.1	30	900	1.6	150	0.06	10	ZT30
ZP200	3500-4500	200	3.4	30	600	1.7	150	0.06	13	ZT30
ZP600	1000-1800	600	9.6	35	1800	1.5	150	0.05	13	ZT33
ZP500	2000-3200	500	8.5	35	1500	1.6	150	0.05	13	ZT33
ZP400	3500-4500	400	6.6	35	1200	1.7	150	0.05	15	ZT33
ZP1000	1000-1800	1000	18	40	3000	1.5	150	0.04	15	ZT40
ZP800	2000-3200	800	15	40	2400	1.6	150	0.04	15	ZT40
ZP500	3500-4500	500	12.8	50	1800	1.8	150	0.04	15	ZT40
ZP500	5200-6500	500	12.8	50	1500	1.9	150	0.04	25	ZT40
ZP2000	1000-1800	2000	32	50	3000	1.45	150	0.02	25	ZT55
ZP1500	2000-3000	1500	24	50	3000	1.6	150	0.02	25	ZT55
ZP1000	3200-4500	1000	16	50	3000	1.9	150	0.02	25	ZT55
ZP800	4600-6500	800	13.6	80	2400	2.0	150	0.02	30	ZT55
ZP3000	1000-1800	3000	48	100	3000	1.4	150	0.018	30	ZT70
ZP2500	2000-3200	2500	40	100	3000	1.5	150	0.018	30	ZT70
ZP2000	3200-4500	2000	33	100	3000	1.6	150	0.018	30	ZT70
ZP1500	4600-6500	1500	25.5	100	3000	1.7	150	0.018	36	ZT70
ZP6000	400-800	6000	84	100	6000	1.2	150	0.010	36	ZT80
ZP5000	1000-1800	5000	80	100	3000	1.35	150	0.010	36	ZT80
ZP4000	2000-3000	4000	64	100	3000	1.5	150	0.010	36	ZT80
ZP3000	3200-4500	3000	51	120	3000	1.7	150	0.010	36	ZT80
ZP2000	4600-6500	2000	36	200	3000	2.2	150	0.010	36	ZT80
ZP3000	5000-6000	3000	42	100	5000	1.8	150	0.008	60	ZT90
ZP3500	5200-6500	3500	49	100	2000	1.2	150	0.006	80	ZT100
ZP6500	2600-3000	6500	92	100	5000	1.15	150	0.006	80	ZT100

YA Series

Type	IF(AV)	VRRM	IFSM@ TVJM&10ms	IRRM(max)&Tj=Tjmax	VFM(max)@			Tvj	Rthjc	F±10%	Outline
Type	A	V	KA	mA	V	A	ºC	ºC	K/W	KN	Outline
YA540	1000	2000-4000	12	35	1.08	1000	160	185	0.05	13	ZT33
YA640	1500	1200-2200	16	35	1.09	1000	25	185	0.04	15	ZT40
YA641	1500	1800-2600	15	70	1.09	1000	25	185	0.04	15	ZT40
YA643	1000	3600-4600	10	50	1.40	1000	160	170	0.04	15	ZT40
YA740	2400	1400-2000	30	50	0.86	1000	160	185	0.02	25	ZT55
YA750	1800	2400-3200	22	50	0.96	1000	160	175	0.02	25	ZT55
YA780	1500	3500-4600	18	50	1.15	1000	160	170	0.02	25	ZT55
YA800	4400	1800-2600	63	100	0.865	2000	160	185	0.01	36	ZT80
YA801	3900	2800-3200	57	100	1.05	2000	160	175	0.01	36	ZT80
YA880	2900	3600-4500	36	100	1.15	2000	160	170	0.01	36	ZT80

Y5SDD Series

Type	VRRM	IF(AV)	IFSM@ TVJM&10ms	Outline
Type	V	A	KA	MM
Y5SDD24F2800	2800	2600	30	75/47
Y5SDD24F2800	2000	7385	87	150/100
Y5SDD08D5000	5000	1028	12	59/34
Y5SDD33L5500	5500	3480	46	120/78
Y5SDD06D6000	6000	662	10.5	58.5/34
Y5SDD09D6000	6000	845	11	58.5/34

Our company is a professional supplier for Ferrite core, bobbin and remote control.

We have more than ten years experience for export electronics component. There are reliable professional suppliers team for integrated circuits (IC), transistor, relay, current transformer and other electronic parties.

Choose us to make you grow faster.
