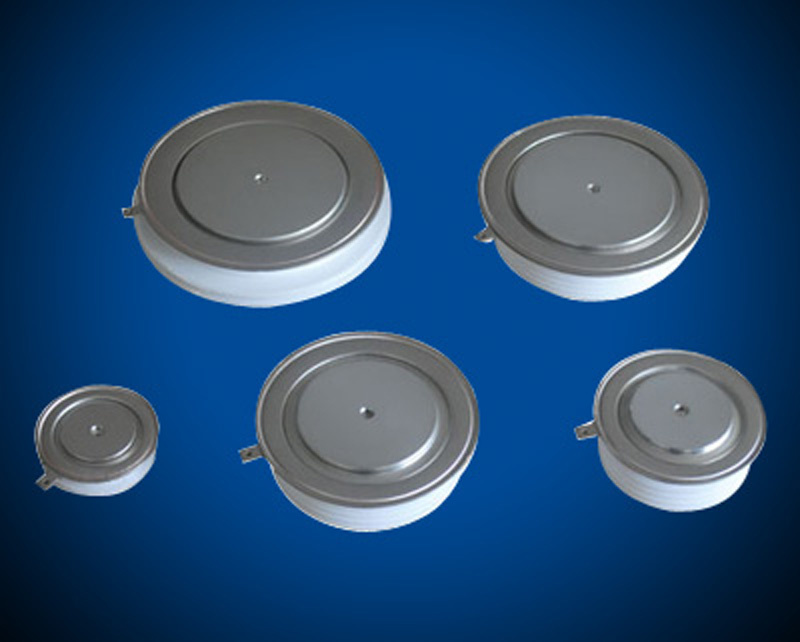

High Quality General Purpose Thyristor for Power Control (YC Series)

Name: High Quality General Purpose Thyristor for Power Control (YC Series)
Brand: all-electronics-online.com
SKU: 706807422
Availability: InStock
Rating: 4.9 (47 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YC Series

Product Description

Name: General Purpose Thyristor

YC Series

Type	IT(AV)	VDRM/VRRM	ITSM@ TVJM&10ms	IDRM/IRRM(max)Tj=125ºC	VTM(max)		Tvj	Rthjc	F±10%	Outline
	IT(AV)	VDRM/VRRM	ITSM@ TVJM&10ms	IDRM/IRRM(max)Tj=125ºC	ITM	VTM	Tvj	Rthjc	F±10%
	A	V	KA	mA	A	V	ºC	K/W	KN
YC380	250	400-1600	3.5	20	1500	2.8	125	0.11	5	KT26
YC430	680	400-1600	8.0	20	3000	2.4	125	0.06	10	KT30
YC431	450	1200-1800	5.9	30	3000	2.6	125	0.06	10	KT30
YC440	900	400-1600	12	35	3000	1.65	125	0.04	15	KT40
YC441	750	1400-2200	10	35	3000	2.0	125	0.04	15	KT40
YC450	1640	400-1600	26	45	3000	1.40	125	0.02	25	KT55
YC451	1500	1400-2200	20.8	45	3000	1.70	125	0.02	25	KT55
YC701	1250	1200-2100	16.6	65	3000	1.70	125	0.02	25	KT55
YC702	1000	2400-3200	20.5	150	2000	1.85	125	0.02	25	KT55
SDT122	950	3500-4400	14.7	75	1000	1.60	125	0.02	25	KT55
YC781	2500	1200-2100	41.5	150	2000	1.20	125	0.01	36	KT80
YC782	2300	2200-2600	32	150	2000	1.35	125	0.01	36	KT80
YC784	1650	3600-4500	24	200	2000	1.85	125	0.01	36	KT80
YC789	1200	5500-6500	20	200	2000	2.3	125	0.01	36	KT80

KP Series

Type	VDRM/VRRM	IT(AV)	ITSM@ TVJM&10ms	VTM(max)@ ITM&TC=25ºC		Tvj	Rthjc	F±10%	Outline
Type	V	A	KA	@/V		ºC	K/W	KN
KP160	2500-3600	160	2.2	480	2.2	125	0.11	4	KT26
KP200	1200-2200	200	2.8	600	2.8	125	0.11	4	KT26
KP300	600-1000	300	4.0	900	4.0	125	0.11	4	KT26
KP160	3800-4400	160	2.5	480	2.5	125	0.06	10	KT30
KP200	3200-3600	200	3.0	600	3.0	125	0.06	10	KT30
KP300	1200-3000	300	4.8	900	4.8	125	0.06	10	KT30
KP400	600-1000	400	5.2	1200	1.7	125	0.06	10	KT30
KP300	3200-3600	300	5.0	900	2.6	125	0.05	13	KT33
KP400	1200-3000	400	5.6	1200	2.4	125	0.05	13	KT33
KP500	600-1000	500	6.5	1500	1.8	125	0.05	13	KT33
KP250	5200-6500	250	3.8	750	3.5	125	0.04	15	KT40
KP400	3200-4500	400	6.2	1200	2.9	125	0.04	15	KT40
KP500	1200-3000	500	8.0	1500	2.4	125	0.04	15	KT40
KP600	600-1000	600	9.3	1800	1.8	125	0.04	15	KT40
KP500	5200-6500	500	8.7	1500	2.7	125	0.02	25	KT55
KP800	3200-4500	800	11.2	2400	2.6	125	0.02	25	KT55
KP1000	1200-3000	1000	14	3000	2.3	125	0.02	25	KT55
KP1200	600-1000	1200	15.6	3000	1.8	125	0.02	25	KT55
KP1200	2400-4500	1200	15.6	3000	2.4	125	0.02	28	KT60
KP1500	1200-2200	1500	21	3000	1.8	125	0.02	28	KT60
KP1000	5200-6500	1000	14	3000	3.2	125	0.018	30	KT70
KP1250	3200-4500	1250	17.2	3000	2.6	125	0.018	30	KT70
KP1500	2200-3000	1500	21	3000	2.3	125	0.018	30	KT70
KP1800	1200-2000	1800	25	3000	1.8	125	0.018	30	KT70
KP1200	5200-6500	1200	18	3000	3.0	125	0.01	35	KT80
KP1650	3200-4500	1650	24	3000	2.5	125	0.01	35	KT80
KP2000	2200-3000	2000	30	3000	2.2	125	0.01	35	KT80
KP2500	600-2000	2500	36	3000	2.0	125	0.008	35	KT80
KP1800	5200-6500	1800	29	3000	2.8	125	0.008	60	KT95
KP2500	3200-4500	2500	35	3000	2.4	125	0.008	60	KT95
KP3000	2200-3000	3000	42	3000	1.9	125	0.008	60	KT95
KP3500	1000-2000	3500	48	3000	1.6	125	0.006	60	KT95
KP2500	5200-6500	2500	38	5000	2.0	125	0.006	80	KT110
KP3800	3200-4500	3800	45	5000	2.0	125	0.006	80	KT110
KP4200	2200-3000	4200	60	5000	1.6	125	0.006	80	KT110
KP5000	1000-2000	5000	78	5000	1.3	125	0.006	80	KT110

5STP Series

Type	IT(AV)	VDRM/VRRM	ITSM@ TVJM&10ms	Outline
Type	A	V	KA	MM
Y5STP03D6500	380	6500	4.5	60/34
Y5STP04D5200	440	5200	5	60/34
Y5STP04D4200	480	4200	5	60/34
Y5STP08D2800	792	2800	10.6	60/34
Y5STP08F6500	830	6500	11.8	75/47
Y5STP12F4200	1150	4200	15	75/47
Y5STP16F2800	1550	2800	23.6	75/47
Y5STP12K6500	1200	6500	21.9	110/63
Y5STP24L2800	2400	2800	41	110/63
