Product Description

1. General
Dedicated temperature controller for beverage cabinet, with a simple function especially for the demand of low cost control.
Double temperature sensors for the control of cabinet temperature and defrost temperature, and defrost sensor could be disabled in the low-cost application.
Defrost output method is optional, either natural defrost or electric defrost (defrost relay optional)

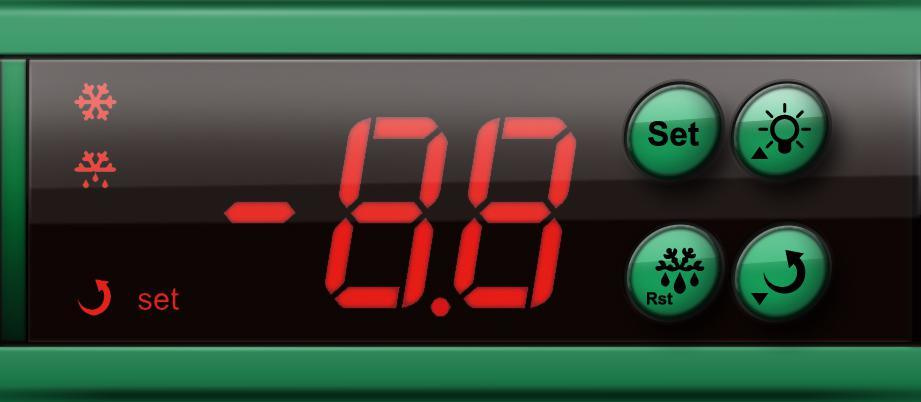

Beautiful LED display, some parameters setting requires password
The rear adopts the plug-in connection method instead of the traditional screw-type connection, which could effectively simplify processing for equipment manufacturers.
2. Technical parameters
2.1 Measuring range:-45ºC~+85ºC;
2.2 Resolution:-9.9ºC~+9.9ºC, 0.1ºC,others 1ºC;
2.3 Accuracy:-45ºC~50ºC,±1ºC,50ºC~85ºC,±2ºC;
2.4 Cabinet temperature control range:-40ºC~50ºC;
2.5 Power supply:(230±10%)VAC,50Hz;
2.6 Power consumption:<3W
2.7 Output capacity:
Refrigeration:30A/240VAC,normal open, directly drive a single phase 1.5HP(240VAC)load;
Defrost:natural defrost or electric defrost; defrost relay is optional in electric defrost, connect heater strip below 500W (240VAC).
2.8 Specification:
Mounting size:71×29 (mm)
Product size:78.3 × 35.5 × 81(mm)
2.9 Work ambient temperature:0ºC~55ºC ;
2.10 Storage temperature:-25ºC~75ºC ;
2.11 Relative humidity:20%~85%(non condensing)

1)In the status of temperature measuring and controlling, press Set key for three seconds to enter setting state, the setting indicator light is on and it displays menu F1.
2) In the state of menu setting, press key or to select the menu items F1~F7,d1~d5,P1.
3)After selection the menu item, press Set key to set the current parameter, press key or to adjust the parameter value and then press Set key to return to the menu selection.
4)When set the parameter of menu item F1 as"55",it could set administrator menu. Press key or to select the menu items F1~F7,d1~d5,P1, t1~t3.
5)Under the status of parameter setting, press key or no key operation within 30s,it will exit from parameter setting and automatically save the current parameter value.
6)In the status of temperature measuring and controlling, press to view the current defrost sensor measured temperature value.
7)In the status of temperature measuring and controlling, Press for three seconds to force the open or close of defrost.
8)In the status of temperature measuring and controlling,press the key for 10S,the indicator light of one-key recovery will light, it displays the code HO and enter to the operation of one-key recovery. It could continue to select the parameter recovery items by pressing key,and the selection range is H0~H7,press key to execute the parameter recovery and then exit,if there is no parameter recovery operation within 30S,it will automatically exit from the mode without recovery of parameters.
