Thermostat for Freezer Parts

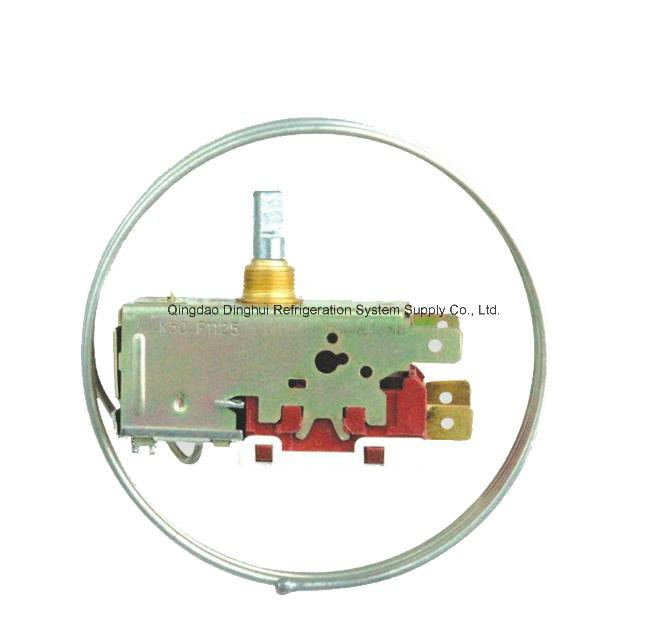

Name: Thermostat for Freezer Parts
Brand: all-electronics-online.com
SKU: 823004775
Availability: InStock
Rating: 4.5 (84 reviews)

Price:	US $ 2.1-2.2/Piece
Min Order:	1000/Piece
Pay Type:	T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Delivery Time:	30 Days

Product Description

Feature:

Temperature control with SPST switch and push-button for automatic defrost function.
Terminal 3-4 closes at temperature rise.
Closing with rising temperature and possibility to manually initiate a defrost cycle by pressing the defrost pin.
The so-called semiautomatic defrost function is achieved by pressing the defrost pin (stroke approx.4mm) until latching. By this the main switch is opened and locked until the defrost temperature is reached at the sensing point of the capillary which normally is fixed at the evaporator. After this defrost temperature has been achieved, the pressure pin returns to its OFF position and the normal ON/OFF operation of the temperature
control is reset. Defrost function can be initiated in any position of the dial shaft, if it has been initiated by accident,
the defrost function can be cancelled by turning the dial shaft to OFF position.
Rating at 250V,50HZ

Typical applications

Refrigerators and Freezers.

Technical Data

tem No.	T20				Elect.rating		Contact type	Sensing element length(mm)	Capillary type
					FLA	LRA
Operating Temp.(°C)	Cold-on	-9.5	normal-on	+8.5	6	36	SPST	1000	Straight
	Cold-off	-18.0	normal-off
available temperture					-36°C---+36°C
Differential					0.5°C -+14°C
Max Sensing Element Temp					110-250V
Rating Voltage					110-250V
Contact Resistance					≤50MΩ
Insulance Resistance					≥100MΩ
Dielectric strength					AC1500V/1MIN
Operating torgue to adjusting shaft					0.4N°m
temperature-resistant					max:85°C m/n:-40°C
Usuage					fresh cabinet, showcase and refrigerator, freezer, water dispenser, air conditioner etc home appliance

Qingdao Dinghui Refrigeration System Supply Co., Ltd which belongs to ECOSOFT SYSTEMS company was founded in 2003 and specializes in research, development, production and sales of refrigeration products and components.

We endeavor to produce high quality Liquid Receiver, Oil spearator, Sight Glass, Hinge, Roller, Condenser, Fan motor, various valves, and Rotalock valves, for air conditioning. Our products adopt the advanced international technology, utilizing high precision special machine tools for its processing.

We also provide the OEM production service, including CHEST FREEZER, Wine cabinet, Air curain, Purifier, etc.

We will always provide high quality service, premium products, and excellent after-sales services for new and old customers.

We have been supplying DAIKIN company for 20 years.

We warmly welcome all interested domestic and overseas refrigeration producers or dealers to contact us for business negotiations and cooperation. To be a worldwide provider of cold chain equipment, we have been always persisting pursuit!
