Showcase Auto Thermostat

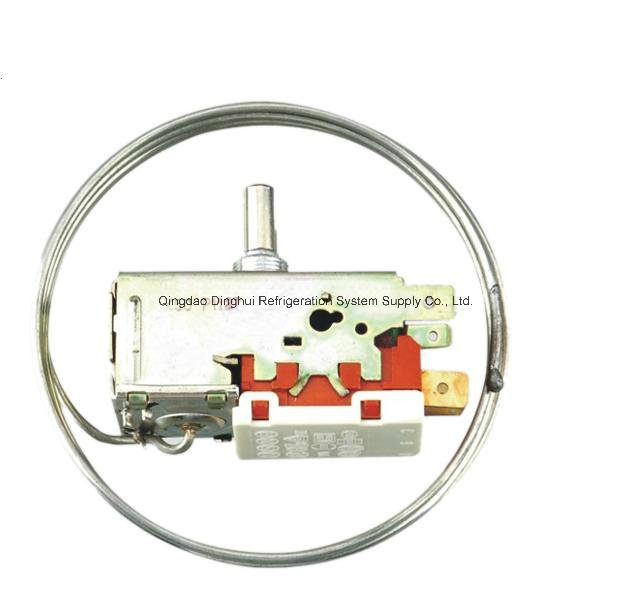

Name: Showcase Auto Thermostat
Brand: all-electronics-online.com
SKU: 793807925
Availability: InStock
Rating: 4.4 (40 reviews)

Price:	US $ 2.1-2.2/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Delivery:	30 Days

Product Description

Specifications

1.Manufactured by our factory.
2.accept small order
3.accept OEM
4.20-25 days delivery
5.10 years experience on thermostat

1. Product Description

Item No.	K50-P1127				Elect.rating		Contact type	Sensing element length(mm)	Capillary type
					FLA	LRA
Operating Temp.(°C)	Cold-on	+5.0	Warm-on	+12.5	6	36	SPST	1200	Straight
	Cold-off	+1.5	Warm-off	+9.5
available temperture					-36°C---+36°C
Differential					0.5°C -+14°C
Max Sensing Element Temp					110-250V
Rating Voltage					110-250V
Contact Resistance					≤50MΩ
Insulance Resistance					≥100MΩ
Dielectric strength					AC1500V/1MIN
Operating torgue to adjusting shaft					0.4N°m
temperature-resistant					max:85°C m/n:-40°C
Usuage					fresh cabinet, showcase and refrigerator, freezer, water dispenser, air conditioner etc home appliance

2. operation principie

Temperature-sensitive media is charged into power element,when sensing part(capillary) fell the change of outside temperature, relevant pressure change will happen inside power element. So bellows will swallow or reduce. Displacement is enlared by lever to activate switch. So automatic control of temperature can be reached. Rotat shoft on mounting plate is used to set up contyol temperature.
