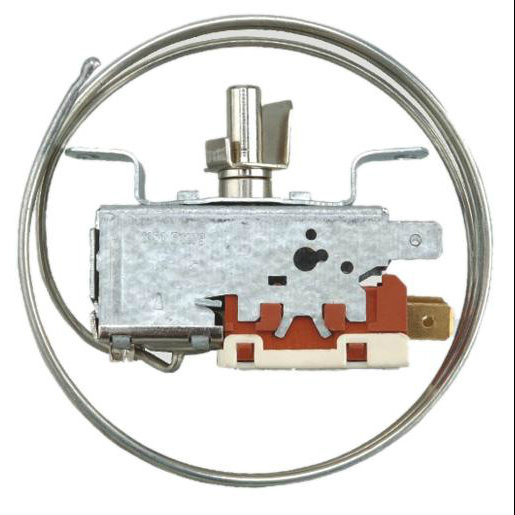

Button Type Thermostat

Name: Button Type Thermostat
Brand: all-electronics-online.com
SKU: 775097365
Availability: InStock
Rating: 4.8 (100 reviews)

Price:	US $ 2.1-2.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	K50-p1179
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Time:	30 Days
Usage:	Refrigerator
Certification:	GB
Control Type:	Mechanical
Type:	Temperature Controller
Material:	Stainless Steel

Product Description

Feature:

Temperature control with SPST switch and push-button for automatic defrost function.
Terminal 3-4 closes at temperature rise.
Closing with rising temperature and possibility to manually initiate a defrost cycle by pressing the defrost pin.
The so-called semiautomatic defrost function is achieved by pressing the defrost pin (stroke approx.4mm) until latching. By this the main switch is opened and locked until the defrost temperature is reached at the sensing point of the capillary which normally is fixed at the evaporator. After this defrost temperature has been achieved, the pressure pin returns to its OFF position and the normal ON/OFF operation of the temperature
control is reset. Defrost function can be initiated in any position of the dial shaft, if it has been initiated by accident,
the defrost function can be cancelled by turning the dial shaft to OFF position.
Rating at 250V,50HZ

Typical applications

Refrigerators and Freezers.

Technical Data

Item No.	k50-p1179				Elect.rating		Contact type	Sensing element length(mm)	Thermal bulb(mm)
					FLA	LRA
Operating Temp.(°C)	Cold-on	-10.0	Warm-on	-2.0	6	36	SPST	800
	Cold-off	-20.0	Warm-off	-10.0
available temperture					-36°C---+36°C
Differential					5°C -+14°C
Rating Voltage					110-250V
Contact Resistance					≤50MΩ
Insulance Resistance					≥100MΩ
Dielectric strength					AC1800V/1s
temperature-resistant					max:85°C min:-40°C
Usuage					fresh cabinet, showcase and refrigerator, freezer, water dispenser, air conditioner etc home appliance
