Brushless DC Motor (92MM) (D925)

Name: Brushless DC Motor (92MM) (D925)
Brand: all-electronics-online.com
SKU: 647488845
Availability: InStock
Rating: 4.3 (124 reviews)

Price:	US $ 15-20/Piece
Trade Terms:	others
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	D925
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Power Tools
Operating Speed:	Adjust Speed
Structure And Working Principle:	Brushless

Product Description

I. CH MOTOR - Brushless DC Motor D925(92MM)

Specifications:
-Rated Power: 550-1100W
-Rated Voltage: 300VDC
-Current: 2.3-4.5A
-Rated Speed: 3600-6000RPM
-Rated Torque: 88-290N. Cm
-Peak Torque: 1.76-580N. Cm
-Shaft Diameter: 14mm
-Length L1: 143-146mm
-Pole No.: 4, 8

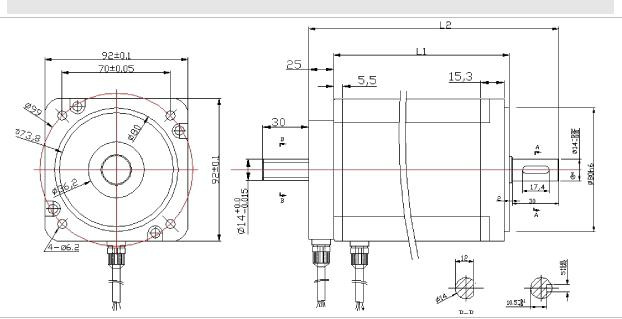

Drawing:

Specification
MODEL	Voltage	Rated Power	Current	Rated Speed	Rated Torque	Peak Torque.	Shaft Dia.	Length L1	Poles
MODEL	V	W	A	rpm	N.cm	N.cm	mm	mm
D925-14523	300	550	2.3	3600	145	290	14	146	8
D925-08823	300	550	2.3	6000	88	1.76	14	146	4
D925-20031	300	750	3.1	3600	200	400	14	146	8
D925-12031	300	750	3.1	6000	120	240	14	146	4
D925-29043	300	1100	4.3	3600	290	580	14	146	8
D925-18045	300	1100	4.5	6000	180	360	14	143	4
*Note: We can customize the special speed, Voltage, Assembled size. High speed at 4 poles (Conventional). Low speed at 8 poles

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
