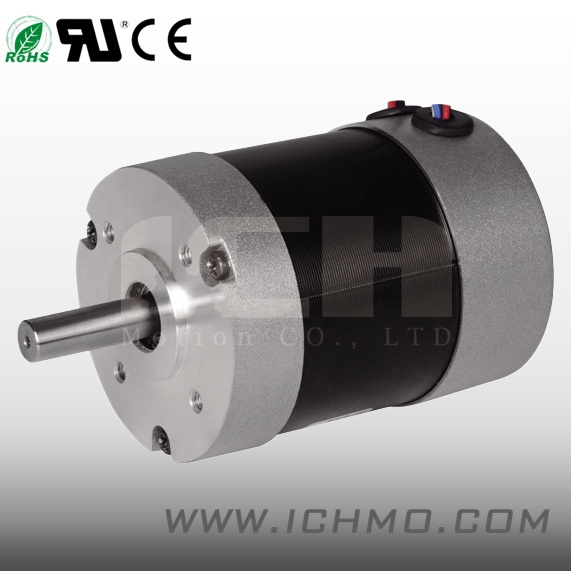

Brushless DC Motor D575 (57MM)

Name: Brushless DC Motor D575 (57MM)
Brand: all-electronics-online.com
SKU: 500045727
Availability: InStock
Rating: 4.4 (149 reviews)

Price:	US $ 25/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	D575
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	57mm
Rated Power:	47-140W
Rated Voltage:	36VDC
Current:	1.8-5.3A
Poles No.:	4
Rated Speed:	3000rpm
Rated Torque:	15-45n.Cm
Peak Torque:	53-156n.Cm
Length:	52-92mm
Weight:	0.55-1.1kg
Application:	Power Tools
Operating Speed:	Low Speed
Structure And Working Principle:	Brushless
Excitation Mode:	Brushless Motor

Product Description

I. CH MOTOR - Brushless DC Motor D575(57MM)

Specifications:
-Rated Power: 47-140W
-Rated Voltage: 36VDC
-Current: 1.8-5.3A
-Poles No.: 4
-Rated Speed: 3000RPM
-Rated Torque: 15-45N. Cm
-Peak Torque: 53-156N. Cm
-Length: 52-92mm
-Weight: 0.55-1.1kg

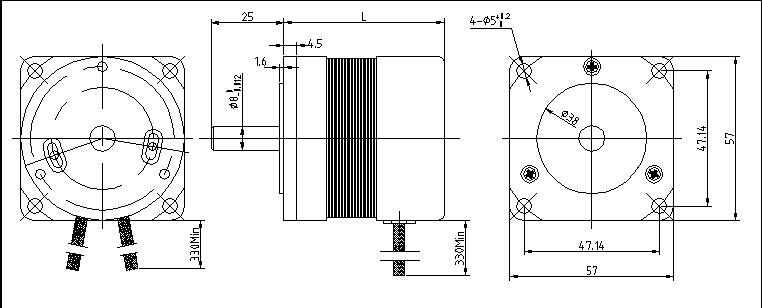

Drawing:

Specification
Model	Rated power	Rated voltage	Current	Number of poles	Rated speed	Rated torque	Peak torque	Moment constant	Length	Weight
Model	W	VDC	A		rpm	N.cm	N.cm	N.cm/A	mm	Kg
D575-01518	47	36	1.8	4	3000	15	53	8.7	52	0.55
D575-03035	94	36	3.5			30	105	8.7	72	0.8
D575-04553	140	36	5.3			45	156	8.7	92	1.1
*Note: We can customize the special speed, Voltage, Assembled size. High speed at 4 poles (Conventional). Low speed at 8 poles

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
