Brushless DC Motor with High Quality

Brushless DC Motor with High Quality
Price: US $ 20/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T
Prod Model: D865
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 86mm
Rated Power: 220-660W
Rated Voltage: 36-310VDC
Current: 1.8-6.3A
Poles No: 4,8
Rated Speed: 3000-5000rpm
Rated Torque: 70-210n. Cm
Peak Torque: 245-735n. Cm
Length: 97-177mm
Weight: 1.85-4.5kg
Application: Power Tools
Structure And Working Principle: Brushless

Product Description

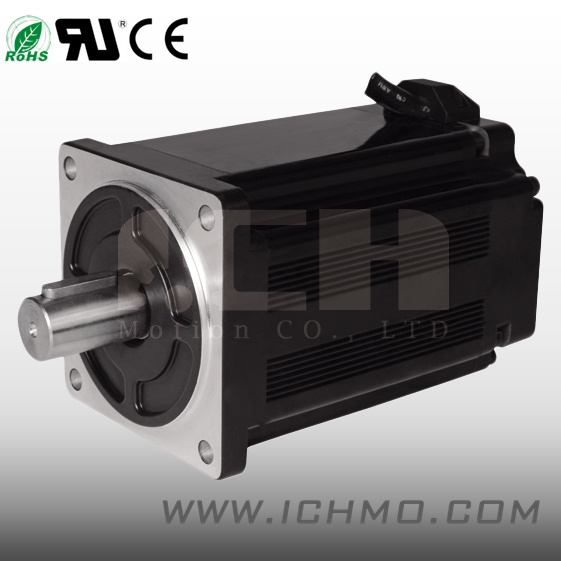

I. CH MOTOR - Brushless DC Motor D865(86MM)

Specifications:
-Rated Power: 220-660W
-Rated Voltage: 36-310VDC
-Current: 1.8-6.3A
-Poles No.: 4, 8
-Rated Speed: 3000-5000RPM
-Rated Torque: 70-210N. Cm
-Peak Torque: 245-735N. Cm
-Length: 97-177mm
-Weight: 1.85-4.5Kg

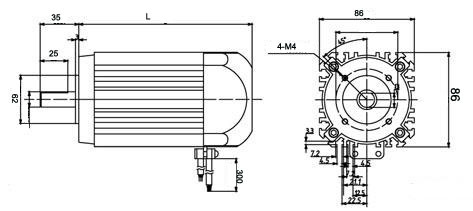

Drawing:




                                                                         Specification
ModelRated powerRated voltageCurrentNumber of polesRated speedRated torquePeak torqueMoment constantLengthWeight
WVDCA rpmN.cmN.cmN.cm/AmmKg
D865-080184203101.84  5000  80280451372.4
D865-160368403103.6160560451774.5
D865-07063220366.3830007024511.3971.85
D865-140194403101.9140490741242.6
D865-210296603102.85210735741504
*Note: We can customize the special speed, Voltage, Assembled size.        High speed at 4 poles (Conventional). Low speed at 8 poles
I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
