Brushless DC Motor with Variable Speed D1235 (123mm)

Name: Brushless DC Motor with Variable Speed D1235 (123mm)
Brand: all-electronics-online.com
SKU: 768744345
Availability: InStock
Rating: 4.3 (59 reviews)

Price:	US $ 30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	D1235
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	123mm
Rated Power:	1500-2200W
Rated Voltage:	220-300VDC
Current:	6-12A
Rated Speed:	3500-6000rpm
Rated Torque:	240-700n.Cm
Peak Torque:	400-1200n.Cm
Shaft Diameter:	19mm
Pole No.:	4,8
Application:	Power Tools
Operating Speed:	High Speed
Structure And Working Principle:	Brushless
Excitation Mode:	Brushless
Brand:	I.CH

Product Description

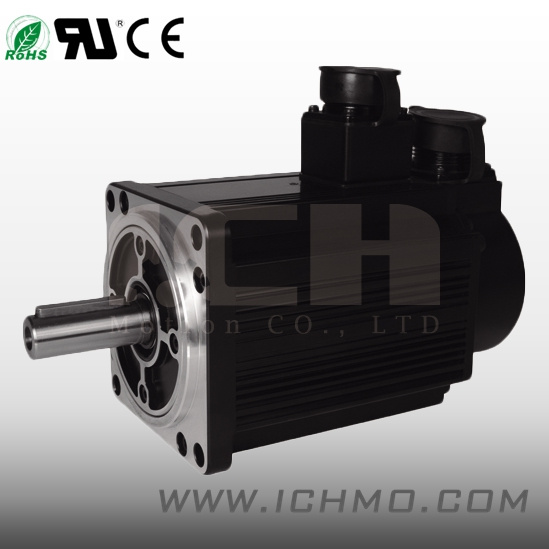

I. CH MOTOR - Brushless DC Motor D1235(123MM)

Specifications:
-Rated Power: 1500-2200W
-Rated Voltage: 220-300VDC
-Current: 6.0-12A
-Rated Speed: 3500-6000RPM
-Rated Torque: 240-700N. Cm
-Peak Torque: 400-1200N. Cm
-Shaft Diameter: 19mm
-Pole No: 4, 8

Drawing:

Specification
MODEL	Voltage	Rated Power	Current	Rated Speed	Rated Torque	Peak Torque.	Shaft Dia.	Length L1	Poles
MODEL	V	W	A	rpm	N.cm	N.cm	mm	mm
D1235-41060	300	1500	6.0	3500	410	800	19	202	8
D1235-24060	300	1500	6.0	6000	240	400	19	202	8
D1235-77092	300	2200	9.2	3500	700	1200	19	202	8
D1235-420120	220	2200	12.0	5000	420	800	19	202	4
D1235-35092	300	2200	9.2	6000	350	600	19	202	4
*Note: We can customize the special speed, Voltage, Assembled size. High speed at 4 poles (Conventional). Low speed at 8 poles

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
