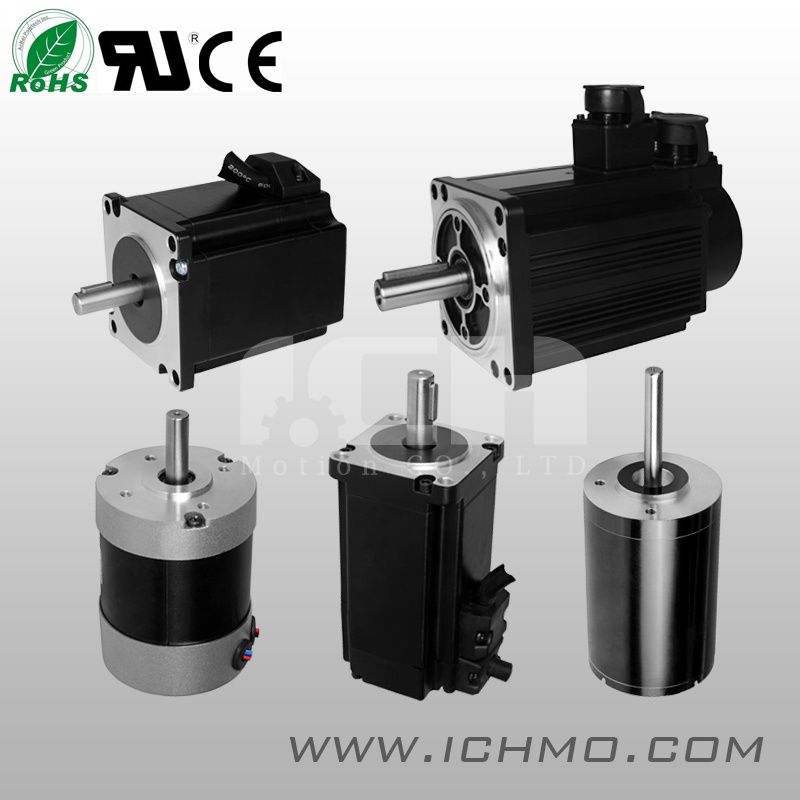

Brushless DC Motor with Variable Speed

Name: Brushless DC Motor with Variable Speed
Brand: all-electronics-online.com
SKU: 768768185
Availability: InStock
Rating: 4.8 (95 reviews)

Price:	US $ 20-100/Piece
Trade Terms:	FOB,CIF,FCA
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Brushless DC Motor
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	90
Application:	Power Tools
Operating Speed:	Low Speed
Structure And Working Principle:	Brushless

Product Description

Applications: Widely used lots of application, such as machine tools, medical machinery, electric car, electric machine tool, Variable wind pressure fan machine, CNC machine spindle motor etc.

Features:
1.The ability to absorb noise and anti-shake and eliminate heat is excellent
2.With well-functioning, low hazard rate, and long life span, low noise, low power consumption, high efficiency, adjustable speed, low cost, high performance and timely customer service
3.Rear-earth permanent-magnet, Brushless DC motor, with super high power density high Efficiency and reliability

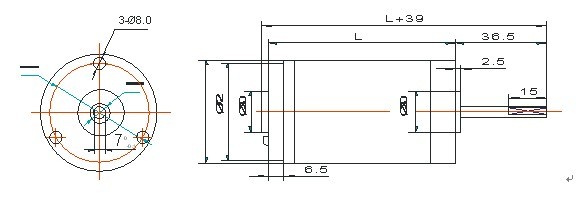

Drawing:

Electrical Specification
SERIES	Figure Size	Rated power	Rated voltage	Current	Number of poles	Rated speed	Rated torque	Peek torque	Moment constant	Length	Weight
SERIES	Figure Size	W	VDC	A	Number of poles	rpm	N. cm	N. cm	N. cm/A	mm	Kg
D42	42mm	32 ~64	24 ~36	1. 8 ~2.4	4,8	0~ 3000	10 ~20	35 ~70	5.7 ~8.5	49~68	0.35 ~0.55
D52	52mm	50	24	2.6		0~3500	13			100
D57	57mm	47~140	36	1.8~5.3	4	0~3000	15~45	53~156	8.7	52~92	0.55~1.1
D60	60mm	78~235	36~48	3~6.6	8	0~3000	50~250	87.5~263	8.7~11.5	78~120	0.9~1.6
D70	70mm	156~313	36~48	5.8~8.8	8	0~3000	50~100	175~350	8.7~11.5	86~116	1.3~2.1
D80	80mm	220~500	36~310	1.1~8.2	4	0~3000	70~160	245~560	8.7~74.1	78~171	1.7~2.95
D86	86mm	220~660	36~310	1.8~6.3	4,8	3000~5000	70~210	245~735	11.3~74	97~150	1.85~4.5
D92	92mm	24~300	150~1100	0.9~43		1500~18000	10~367			70~150	1.74~4.12
D110	110mm	785~1250	310	3.4~5.4	8	2000~2500	300~600	1050~2100	89~112	138~198	4.5~7
D123	123mm	1100~2200	150~300	4.8~13.3		1500~6000	250~730			100~195	7.875~9.51
*Note: We can customize the special speed, Voltage, Assembled size. High speed at 4 poles (Conventional). Low speed at 8 poles

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
