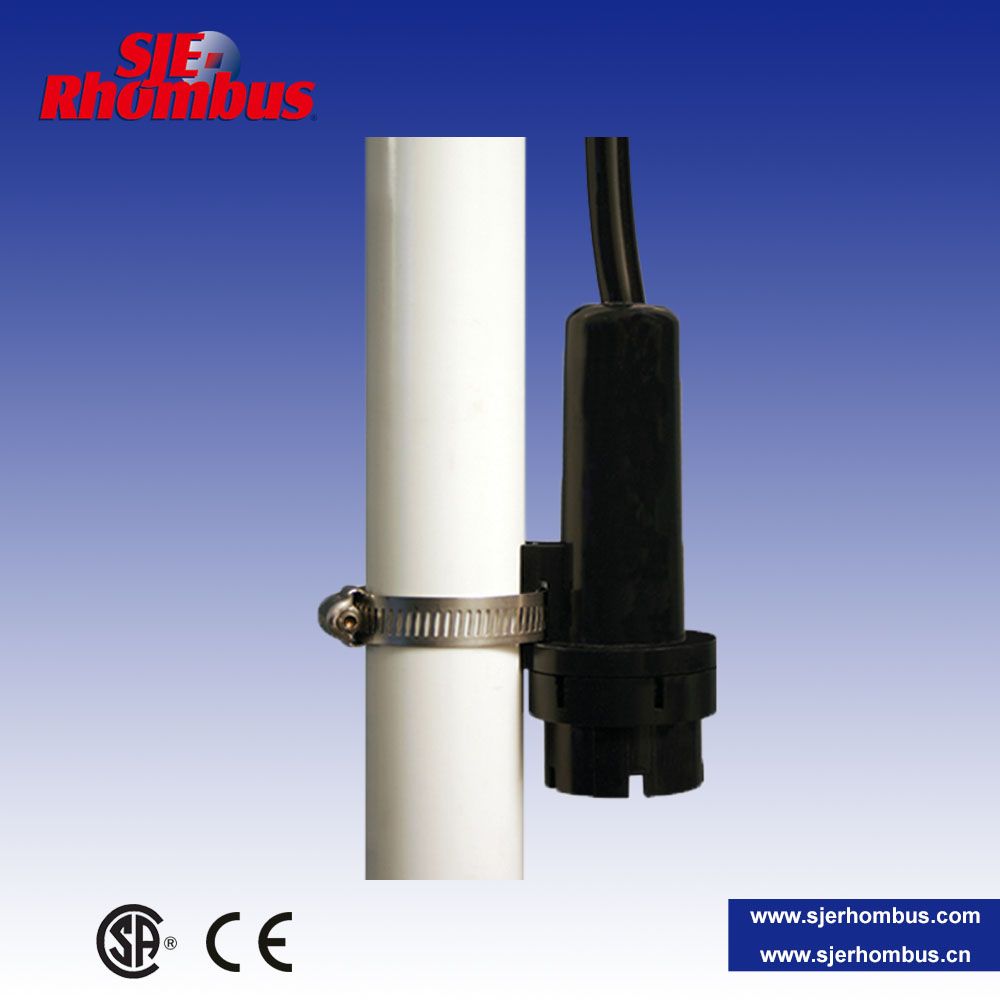

C-Level Tank Water Level Transmitter

Name: C-Level Tank Water Level Transmitter
Brand: all-electronics-online.com
SKU: 822994405
Availability: InStock
Rating: 4.9 (41 reviews)

Price:	US $ 100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	C-Level
Operating Temperature:	0-50
Voltage:	120 VAC, 50/60 Hz, 0.15A Class II Transfo
Input Power:	12VDC 100mA Max
Output:	Variable Frequency Signal
Cable:	20AWG, 3 Wire, Type Cm3, PVC 300FT (91m) Max.
Sensor And Vent Housing:	PVC
Vent Tube:	PVC
Accuracy Grade:	+/-5% Full Scale
Pressure Range:	0~1m or 0~2.5m Water Depth
Certification:	CSA

Product Description

Features:
The simple and accurate C-Level™ Sensor converts the water pressure in a tank into a low voltage electrical signal that is read by a variety of level monitoring products manufactured exclusively by SJE-Rhombus. This innovative technology provides for continuous level monitoring of tank applications and is backed by an industry-leading five-year limited warranty.
• Operates on low voltage
• Compact, non-moving design works well in wastewater pump tanks, confined space applications and systems with a high grease content
• One sensor replaces up to four floats
• Easy to install
• Available in cable lengths up to 300 ft. (91.44 m)
• Excellent alternative to mercury floats

Specification:
• Input power: 12VDC 100mA max.
• Output: Variable Frequency Signal
• Cable: 20AWG, 3 wire, Type CM3, PVC 300ft (91m) max.
• Dimension: 12.7cm (L)×Ø5 cm
• Sensor and Vent Housing: PVC
• Color: Black
• Vent tube: PVC
• Mounting: Stainless steel cable clamp on sensor and vent housing
• Fluid Compatibility's:water, sewage
• Maximum Submersion Depth: 3m
• Maximum Environment Temperature: 50 ºC
• Sensor Zero Point: Approximately 2 inches from bottom of sensor
• Recommended Minimum Operation Level: 3 inches water measured from sensor zero point
• Repeatability: +/- 5% full scale
• Range: 1m ~ 2.5m (depending on model)

Model:
• CL40 -- Range: 0~1m
• CL100 -- Range: 0~2.5m

SJE-Rhombus (S. J. Electro Systems, Inc. ) was founded on July 2, 1975 by Steve Johnston. Over 40 years later, SJE-Rhombus has grown into a leading manufacturer of reliable, trouble-free liquid level controls for the water, wastewater and sewage industries throughout the United States and Canada, as well as into global markets.

SJE-Rhombus offers a wide variety of control products for residential, commercial, municipal, and industrial markets. From control panels utilizing embedded circuit board technology, to complete control and monitoring systems designed and built to individual specifications, SJE-Rhombus represents the most reliable integration of engineering and manufacturing capabilities in the industry.

SJE Rhombus Suzhou factory is 100% subsidiary company of SJE Rhombus. We offer a wide variety of control products for residential, commercial, municipal, and industrial markets. We had ISO9001: 2008 certification, and UL, cUL, CSA, TUV, CE certification. From float switches, alarms, control panels to complete control monitoring systems designed and built to individual specifications, SJE-Rhombus represents the most reliable integration of engineering and manufacturing capabilities in the industry.

New product desgins endure extensive in-house and field testing before submittal to recognized independent laboratories for safety testing and approval (UL, cUL, CSA, CE). Each product is constructed of materials of the highest quality with expert workmanship and delivered in responsive lead times. This commitment to quality ensures you a dependable, trouble-free product.
