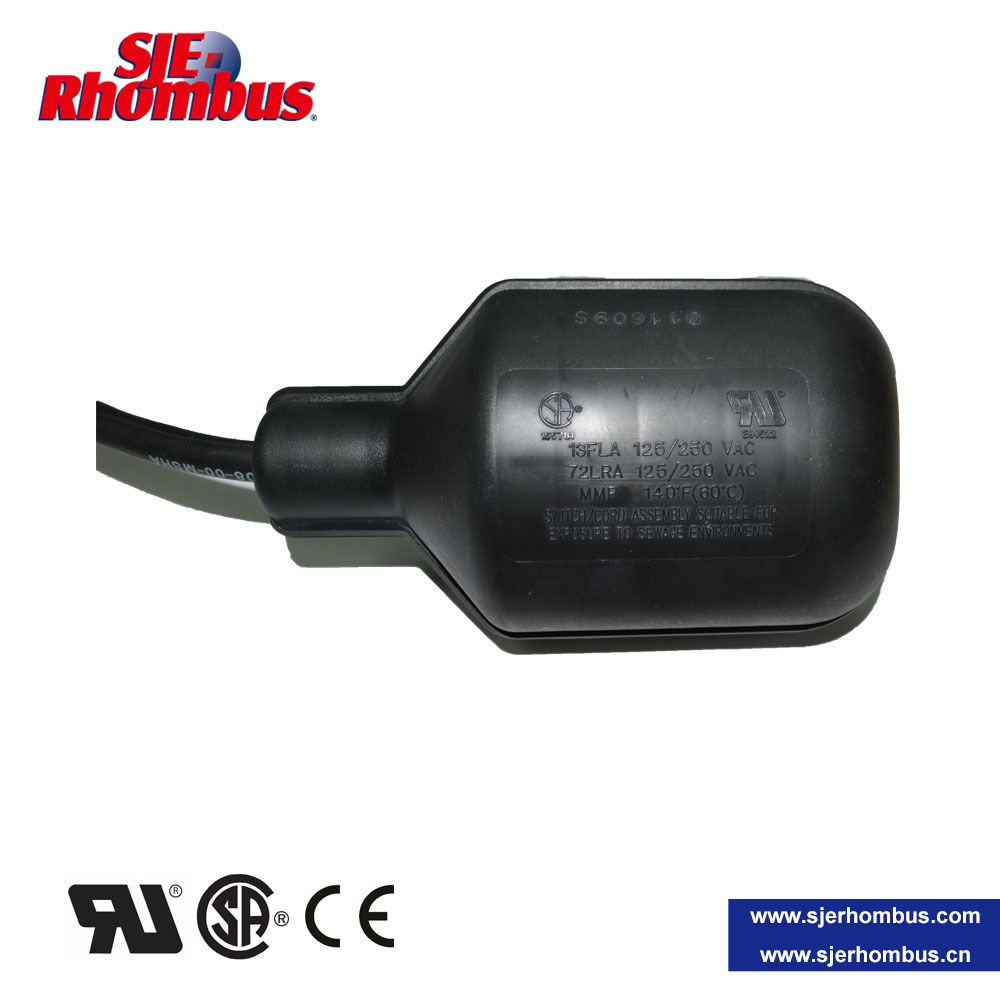

Micromaster UL Rated Tethered Float Switch for Directly Pump Control 10A

Name: Micromaster UL Rated Tethered Float Switch for Directly Pump Control 10A
Brand: all-electronics-online.com
SKU: 823554915
Availability: InStock
Rating: 4.5 (43 reviews)

Price:	US $ 22.75-39.75/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Mechanical Life:	500,000 Cycles
Working Temperature:	0~60º C
Cable Length:	3m,5m,6m,10m

Product Description

Features:

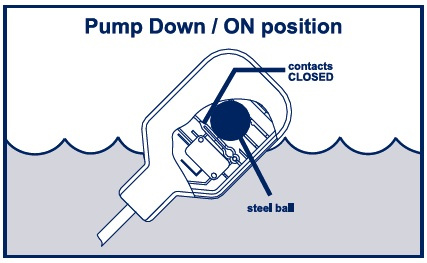

Mechanically-activated, wide-angle switch designed for performance and dependability.
These mechanically-activated, wide-angle switches provide automatic control of pumps in:
• Water
• Sewage applications
These pump switches are not sensitive to rotation or turbulence allowing them to be used in both calm and turbulent applications.

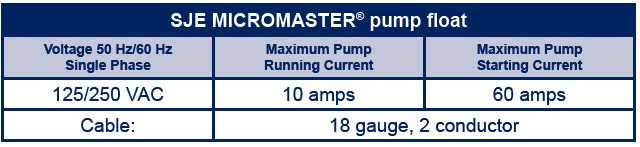

Specification:
• Flexible SJOW, water-resistant (CPE) cable
• High impact, corrosion resistant, polypropylene float housing
• Temperature rating up to 60º C (140º F)
• Maximum water depth of 9 meters (30 feet) or 90 kPa (13 psi)
• IP68 enclosure rating
• Float dimensions: 7.0 cm diameter x 12.3 cm long (2.74 inch x 4.83 inch)
• Suitable for Catagory II installations
• Protected by double insulation
• Adjustable pumping range of 20 to 91 cm (8 to 36 inches)
• UL Recognized, CSA certified. CE units available by request

Note: These switches are not recommended for controlling electrial loads less than 100 mA, 12 VAC. Must be used with pumps that provide integral thermal overload protection.

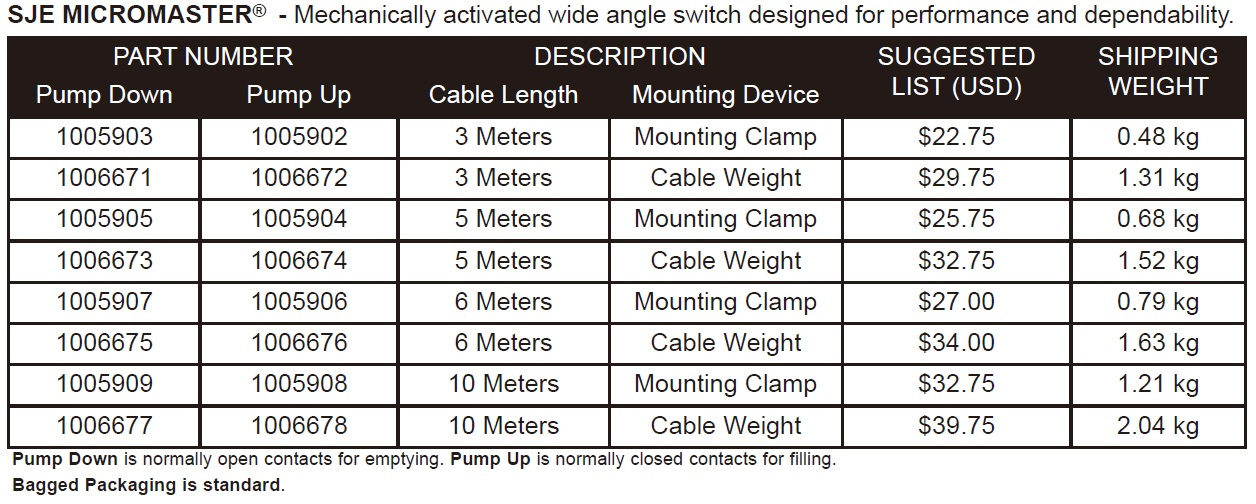

Ordering Information:
INTERNATIONAL PRICE BOOK FOR LIST PRICING:

Options:
Bagged Packaging is standard
- For individual boxed or bulk packaging, please contact the factory.
Additional Cable Lengths are available
Piggy-Back Plug - North American standard plug.
Options are available for SJE MicroMaster® and SJE MicroMaster® Plus pump switches. Please contact the factory.

SJE-Rhombus (S. J. Electro Systems, Inc. ) was founded on July 2, 1975 by Steve Johnston. Over 40 years later, SJE-Rhombus has grown into a leading manufacturer of reliable, trouble-free liquid level controls for the water, wastewater and sewage industries throughout the United States and Canada, as well as into global markets.

SJE-Rhombus offers a wide variety of control products for residential, commercial, municipal, and industrial markets. From control panels utilizing embedded circuit board technology, to complete control and monitoring systems designed and built to individual specifications, SJE-Rhombus represents the most reliable integration of engineering and manufacturing capabilities in the industry.

SJE Rhombus Suzhou factory is 100% subsidiary company of SJE Rhombus. We offer a wide variety of control products for residential, commercial, municipal, and industrial markets. We had ISO9001: 2008 certification, and UL, cUL, CSA, TUV, CE certification. From float switches, alarms, control panels to complete control monitoring systems designed and built to individual specifications, SJE-Rhombus represents the most reliable integration of engineering and manufacturing capabilities in the industry.

New product desgins endure extensive in-house and field testing before submittal to recognized independent laboratories for safety testing and approval (UL, cUL, CSA, CE). Each product is constructed of materials of the highest quality with expert workmanship and delivered in responsive lead times. This commitment to quality ensures you a dependable, trouble-free product.
