| Prod Model: |
Double Float Master |
| Protection Grade: |
IP68 |
| Working Temperature: |
0~60 |
| Mechanical Life: |
500,000 Times |
| Electrical Life: |
100,000 Times |
Product Description
Features:The Double Float
® Master pump switch is a mechanically activated pump switch which provides automatic control of pumps in non-potable water and sewage applications.

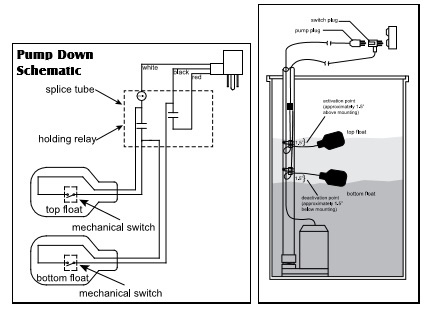

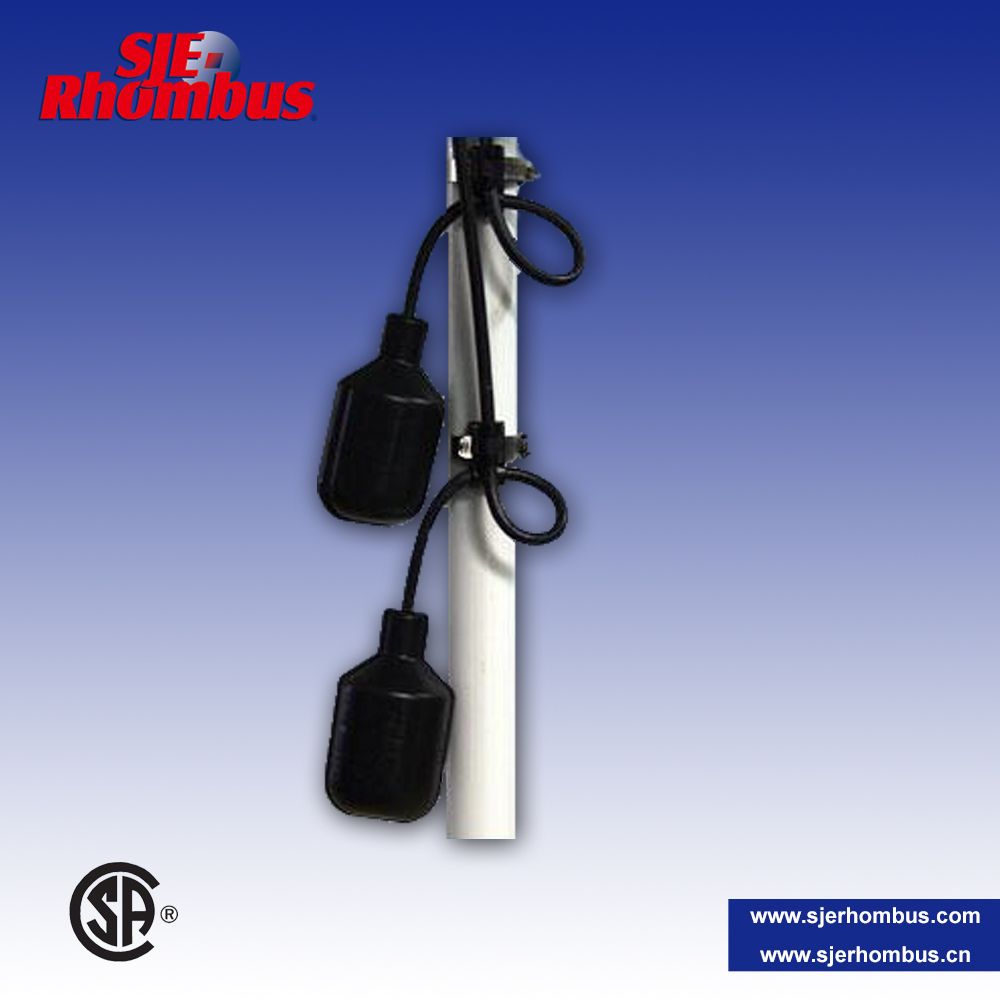

The Double Float® Master pump switch consists of two mechanical floats and a splice tube. The splice tube contains a holding relay which enables the floats to function in series.
The holding relay eliminates pump chatter in turbulent conditions allowing the Double Float
® Master pump switch to operate relay control panels for larger pump applications.
The Double Float
® Master pump switch features:
• Encapsulated relay and splice provides reliable seal
• Controls pumps up to 15 FLA, 90 LRA, 120V or 240V
• Adjustable pumping range of 3 to 48 inches (7.6 to 122 cm) with increased pumping range up to 6 feet (1.8 m) available
• Floats are labeled for ease of installation
• Reliable, mechanical alternative for areas restricting the use of mercury
• CSA Certified; Three-year limited warranty
Specification:• Cable attached to float housing: flexible 18 gauge, 2 conductor (UL, CSA) SJOW, water-resistant (CPE)
• Cable above splice: flexible 14 gauge, 3 conductor (UL, CSA) SJTW, waterresistant, thermoplastic
• FLOATS: 2.74 inch diameter x 4.83 inch long (7.0 x 12.3 cm) high impact, corrosion resistant, PP housing for use in sewage and non-potable water up to 140
oF (60
oC)
• ELECTRICAL: 120 VAC 50/60Hz Single Phase: Maximum Pump Running Current (FLA): 15 amps
Maximum Pump Starting Current (LRA): 90 amps
240 VAC 50/60Hz Single Phase: Maximum Pump Running Current (FLA): 15 amps
Maximum Pump Starting Current (LRA): 90 amps
NOTE: This switch must be used with pumps that provide integral thermal overload protection.

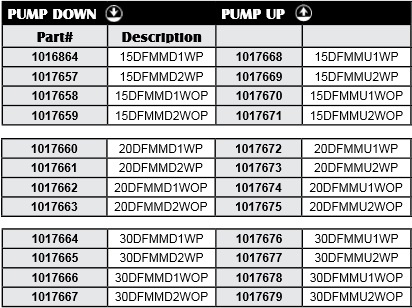

Ordering Information:
D = Pump Down
U = Pump Up
1 = 120 VAC
2 = 240 VAC
WP = With Plug
WOP = With Out Plug
NOTE: Descriptions are grouped by cable length measured in feet (15, 20, 30).
Options:This switch is available:
• for pump down or pump up applications as specified by part number.
• with a 120 VAC or 240 VAC piggy-back plug.
• without a plug for direct wiring (
120 VAC units can only be used with 120 VAC applications within specified amp ratings.
240 VAC units can only be used with 240 VAC applications within specified amp ratings).
• in standard cable lengths of 15, 20, or 30 feet and 5 or 10 meters (longer lengths available).
• PACKAGING Boxed - standard; Bagged - optional; Bulk - optional
• ADDITIONAL CABLE Longer cable lengths available. Please call for details.
