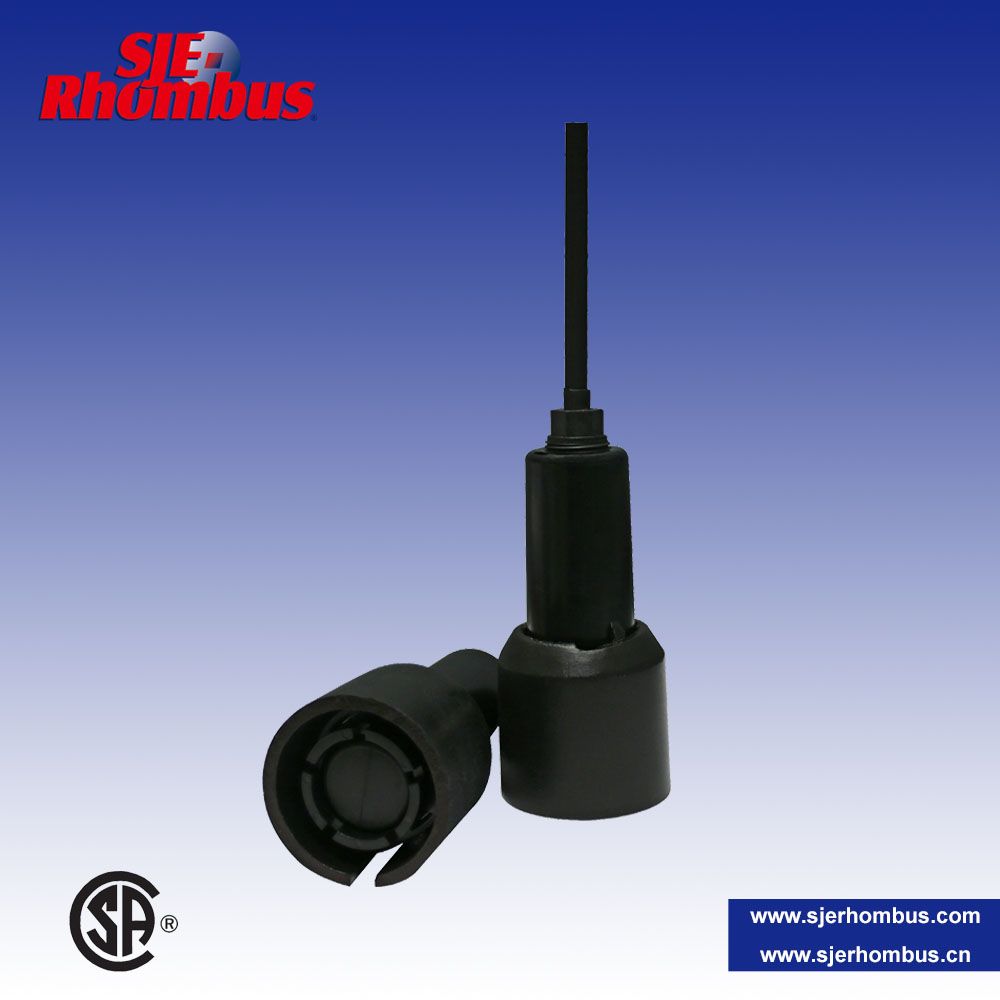

Sub-X Pressure Level Sensor

Name: Sub-X Pressure Level Sensor
Brand: all-electronics-online.com
SKU: 822956675
Availability: InStock
Rating: 4.8 (25 reviews)

Price:	US $ 725-1100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Sub-X
Measuring Ranges:	7.25 Psi or 14.50 Psi
Accurancy:	1% Full Scale
Operating Temperature:	0-50
Output:	4-20 Ma, Loop Powered
Overpressure Protection:	58 Psi
Cable:	TPE, 18 AWG 2-Wire Shielded with Vent Tube, 8 mm
Cable Length:	25FT,50FT,75FT,100FT
Max. Pressure:	0.5bar, 1bar

Product Description

Features:
Submersible level transmitter designed for continuous level monitoring.
The Sub-X™ transmitter measures the hydrostatic pressure of the water above the sensor and outputs a 4-20 mA signal proportional to the level.
The robust design provides a reliable and low maintenance solution for level control applications, including:
• Sewage and effluent lift stations
• Stormwater pump stations
• Non-potable water systems
• Tanks, wet wells and reservoirs

• Transmitter wetted components are designed with non-conductive materials to provide an electrical isolation barrier
• Pressure sensor isolated from process material by a protective VITON® diaphragm
• Industry standard 4-20 mA, 2-wire loop powered
• Reverse polarity protected
• 18/2 shielded cable with vent tube
• Provided with removable lock in place stabilizing weight and stainless steel mounting bracket
• Multiple ranges

Specification:
• Measuring Ranges: 7.25 PSI (16.7 ftWC) and 14.50 PSI (33.4 ftWC)
• Accuracy: 1% full scale
• Operating Temp: 0-50^oC (32-122^oF)
• Output: 4-20 mA, loop powered
• Excitation Voltage: 8-32 VDC reverse polarity protection
• Overpressure Protection: 58 PSI (133.6 ftWC)
• IP Rating: IP 68 for permanent submersion
• Wetted Materials:
Sensor Housing: PVC, 51 mm diameter x 143 mm length (2.00" x 5.62")
Cable Seal: EPDM
Diaphragm: VITON^®, 32 mm diameter (1.25")
Cable: TPE, 18 AWG 2-wire shielded with vent tube, 8 mm diameter (0.3")
Stabilizing Weight: Epoxy coated cast iron, 0.45 kg (1.0 lb), 66 mm diameter x 64 mm length (2.6" x 2.5")

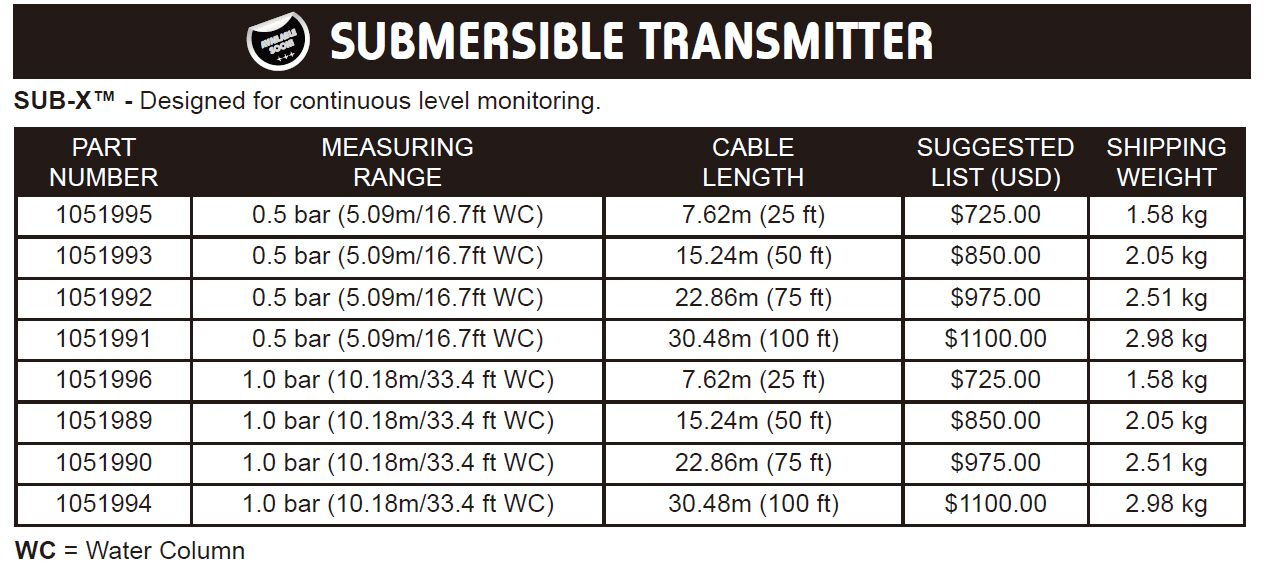

Ordering Information:
INTERNATIONAL PRICE BOOK FOR LIST PRICING:

SJE-Rhombus (S. J. Electro Systems, Inc. ) was founded on July 2, 1975 by Steve Johnston. Over 40 years later, SJE-Rhombus has grown into a leading manufacturer of reliable, trouble-free liquid level controls for the water, wastewater and sewage industries throughout the United States and Canada, as well as into global markets.

SJE-Rhombus offers a wide variety of control products for residential, commercial, municipal, and industrial markets. From control panels utilizing embedded circuit board technology, to complete control and monitoring systems designed and built to individual specifications, SJE-Rhombus represents the most reliable integration of engineering and manufacturing capabilities in the industry.

SJE Rhombus Suzhou factory is 100% subsidiary company of SJE Rhombus. We offer a wide variety of control products for residential, commercial, municipal, and industrial markets. We had ISO9001: 2008 certification, and UL, cUL, CSA, TUV, CE certification. From float switches, alarms, control panels to complete control monitoring systems designed and built to individual specifications, SJE-Rhombus represents the most reliable integration of engineering and manufacturing capabilities in the industry.

New product desgins endure extensive in-house and field testing before submittal to recognized independent laboratories for safety testing and approval (UL, cUL, CSA, CE). Each product is constructed of materials of the highest quality with expert workmanship and delivered in responsive lead times. This commitment to quality ensures you a dependable, trouble-free product.
