Ezconnex Float Switch Connection System for Quick Float Installation
| Price: |
US $ 122.75-224/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
EZconnex |
| Protection Grade: |
IP68 |
| Working Temperature: |
0~60 |
| Manifold Housing: |
ABS Plastic |
| Max.Electrical Load: |
1A Per Connection Port, 125VAC |
| Connection Port: |
3 |
| Cable Length: |
25FT,50FT,100FT |
Product Description
Features:Manifold/float connection system designed for easy installation of float switches in a wet well for level control applications.

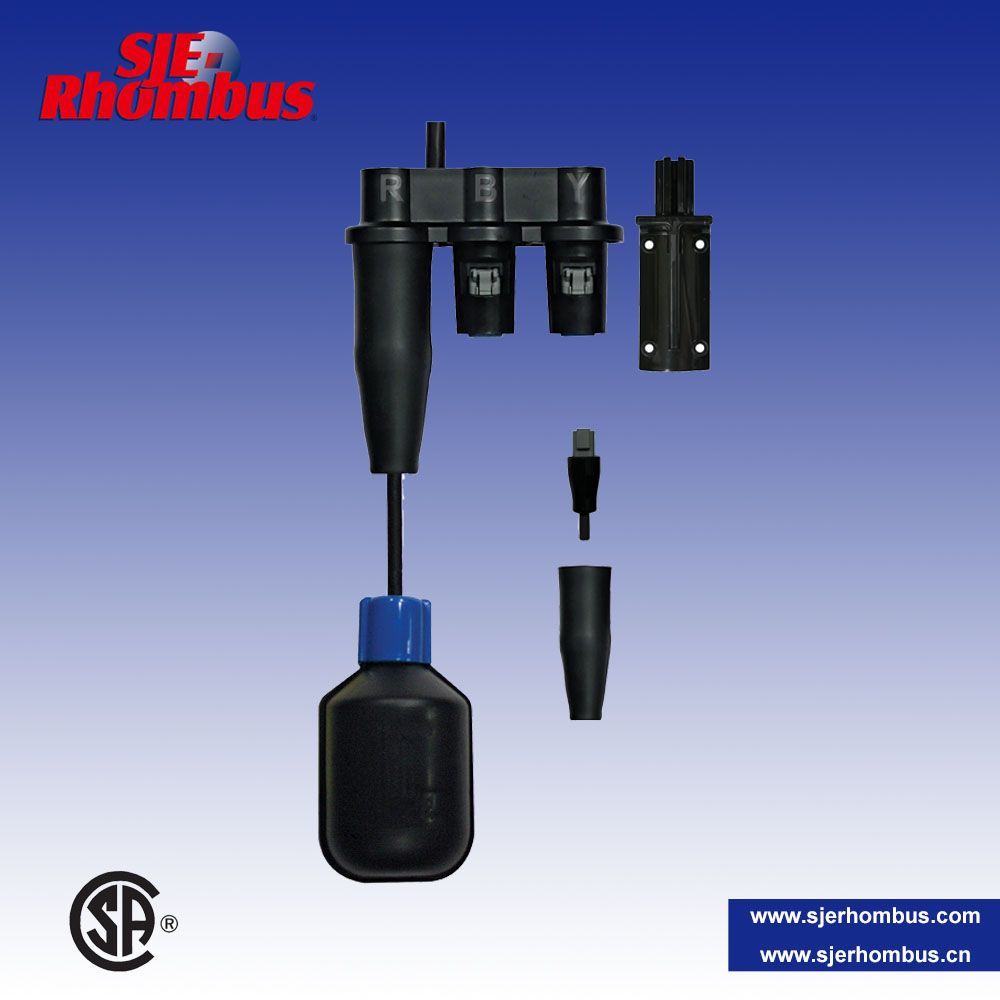

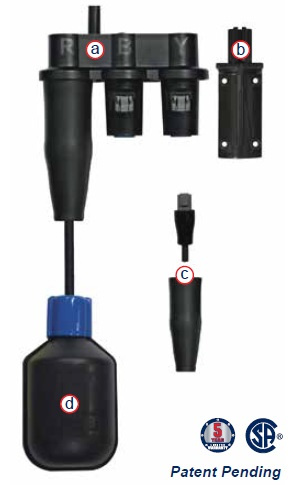

The EZconnex™ Float Switch Connection System includes (A) an electrical wiring manifold with (B) mounting bracket and hardware. The manifold features three quick release float switch connection ports. A single 6-conductor direct burial cable has Red-Blue-Yellow wire pairs that match the R-B-Y imprint on the manifold housing for easy field wiring. The mounting bracket is designed to allow quick access to the manifold and fl oat switches for easy maintenance.
(C) EZconnex™ float switches feature an internal switching mechanism with sealed gold cross-point contacts for reliable low current operation. A range of wide-angle or narrow angle float switches feature a quick release connection that simply plugs into the manifold port(s) for easy installation.
The EZconnex™ system can be used with 1, 2, or 3 float switches. Each float switch includes a (D) protective rubber boot that provides a dual seal design for an extra layer of protection to keep connections clean and dry. (E) Sealing plugs are available for unused manifold port(s). NOTE: Do not install with open port(s).
• Includes mounting bracket and hardware
• Rated for short term water submersion
• Designed for use with EZconnex™ float switches (not included with manifold; float switches must be ordered separately):
Low current applications down to 0.160mA at 125V
Mechanically-activated, snap action contacts
Colored caps for easy identification of normally open (blue cap) or normally closed (red cap) models
Activation angle above/below horizontal: 10.16 cm (4") wide-angle;
3.81 cm (1.5") narrow-angleOptions:MANIFOLD:
• Standard cable lengths of 7.62, 15.24, or 30.48 m (25, 50, or 100 ft)
• Sealing plug (includes rubber boot) required for unused port(s)
FLOAT SWITCH:
• Standard cable lengths of 1.52, 3.05, 6.10 m (5, 10, or 20 ft)
• Blue cap for normally open (high level) applications or red cap for normally closed (low level) applications
• With narrow or wide-angle pumping ranges

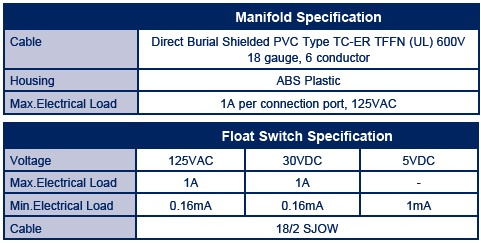

• Standard mounting clamp for applications where the switch can be attached to a discharge pipe or similar mounting deviceSpecification:

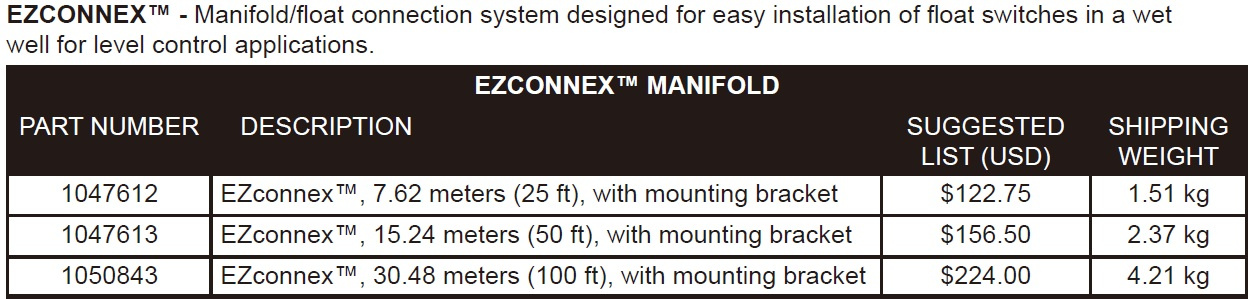

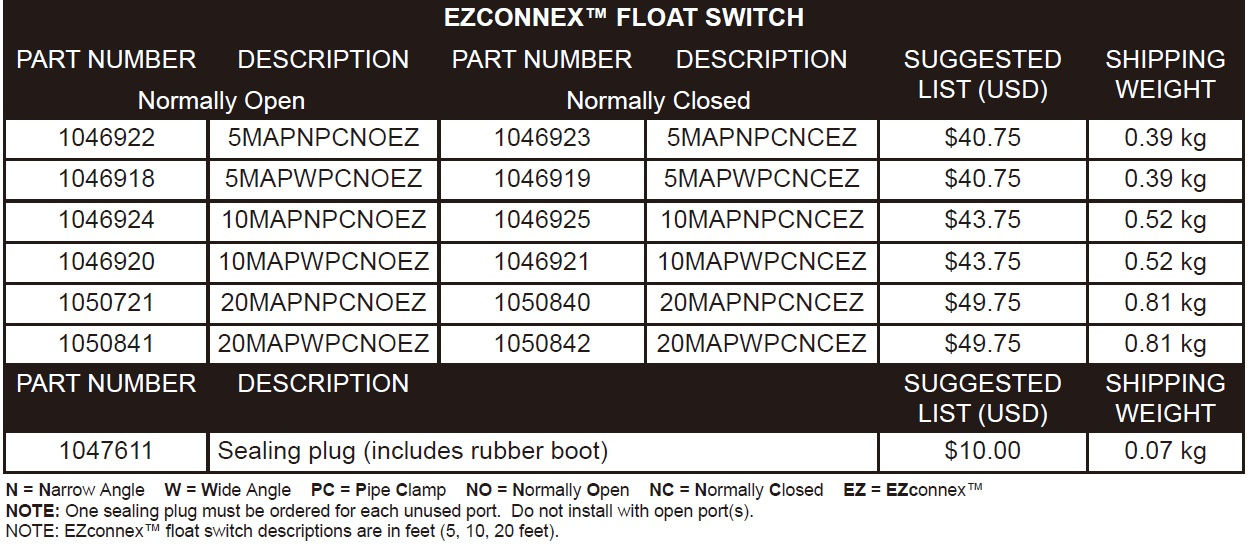

Ordering Information:INTERNATIONAL PRICE BOOK FOR LIST PRICING:

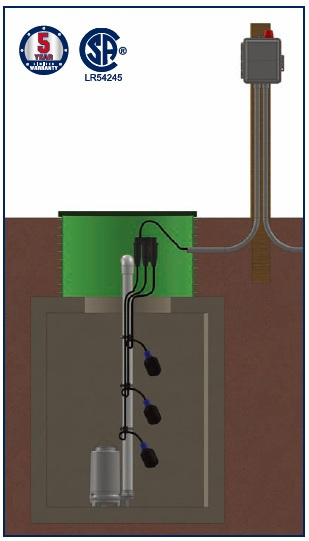

Installation:
SJE-Rhombus (S. J. Electro Systems, Inc. ) was founded on July 2, 1975 by Steve Johnston. Over 40 years later, SJE-Rhombus has grown into a leading manufacturer of reliable, trouble-free liquid level controls for the water, wastewater and sewage industries throughout the United States and Canada, as well as into global markets.
SJE-Rhombus offers a wide variety of control products for residential, commercial, municipal, and industrial markets. From control panels utilizing embedded circuit board technology, to complete control and monitoring systems designed and built to individual specifications, SJE-Rhombus represents the most reliable integration of engineering and manufacturing capabilities in the industry.
SJE Rhombus Suzhou factory is 100% subsidiary company of SJE Rhombus. We offer a wide variety of control products for residential, commercial, municipal, and industrial markets. We had ISO9001: 2008 certification, and UL, cUL, CSA, TUV, CE certification. From float switches, alarms, control panels to complete control monitoring systems designed and built to individual specifications, SJE-Rhombus represents the most reliable integration of engineering and manufacturing capabilities in the industry.
New product desgins endure extensive in-house and field testing before submittal to recognized independent laboratories for safety testing and approval (UL, cUL, CSA, CE). Each product is constructed of materials of the highest quality with expert workmanship and delivered in responsive lead times. This commitment to quality ensures you a dependable, trouble-free product.
