Capacitive Pressure & Differential Pressure Transmitter
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
HB1151 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display: |
Pointer |
| Function: |
Electric Signal-Controlled |
| Accuracy: |
0.25 |
| Indicating Pressure Reference: |
Differential Pressure Gauge |
| Application: |
Industrial |
| Measuring Range: |
Low-Pressure Gauge |
Product Description

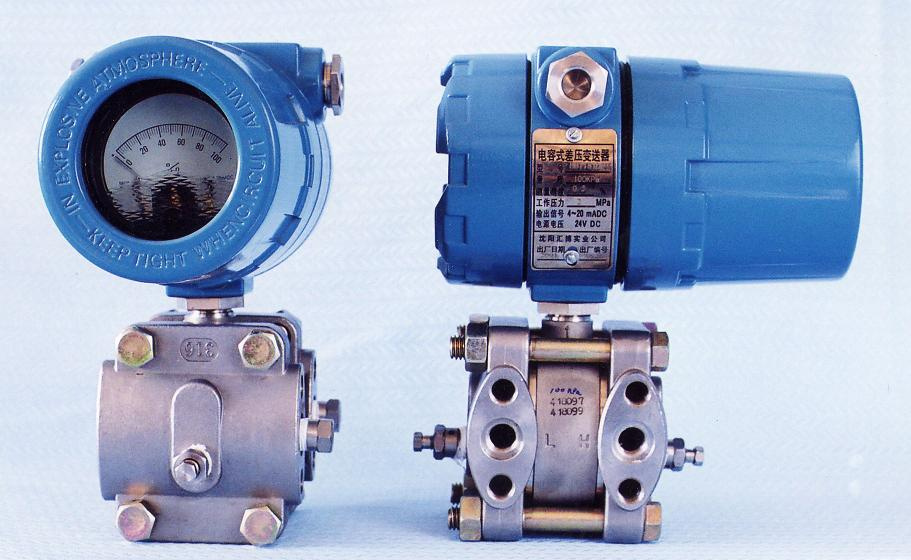

HB1151 series capacitive pressure transmitters are manufacturing by advanced technology and equipment, it has high performance price with high accuracy and long term stability, its strong framework structure makes the frame more massive and steady, more firm and durable. This HB1151 transmitters are widely applies to petrochemmical, electric power, metallurgy, light industry, food, environmental protection and other industries.
| Range | from 0 - 0.125kpa(0.00125 bar) to 0 -41370kPa(413.7 bar) |
| Output Signal | 4 - 20mADC; HART |
| Accuracy | ±0.25%F.S.; ±0.5%F.S. |
| Working Power | 12 - 45VDC (24 VDC typical) |
| Explosion Proof | ExdIIBT4; ExiaIIBT6 |
| Zero Adjusting | pressure:Max positive suppression is qeual to max value of scale range minus value of the measured range;
Negative suppression is equal or less than the difference between the atmospheric pressure.
different pressure:Max positive suppression is qeual to max value of scale range minus value of the measured range;
Negative suppression is equal to the value of scale range. |
| Working Temperature | -25 - 70ºC(typical);
-15 - 70ºC(transmitter with field indicates and explosion proof) |
| Temperature Effect | ≤±0.2%F.S./10ºC; ≤±0.3%F.S./10ºC
(according to transmitter's accuracy calss) |
| Static Pressure Effect | ≤±0.5%F.S.; ≤±1%F.S.; ≤±2%F.S.
(according to transmitter's accuracy calss) |
| Starting Time | 2 seconds, without pre-switch on |
| Overload | ≤1.15 times of transmitter's full scale range |
| Load Resistance | 0 - 600Ω |
| Electrical Connection | 1/2-14NPT |
| Process Connection | screw thread of pressure chamber is 1/4-18NPT;
screw thread of pressure connector is 1/2-14NPT;

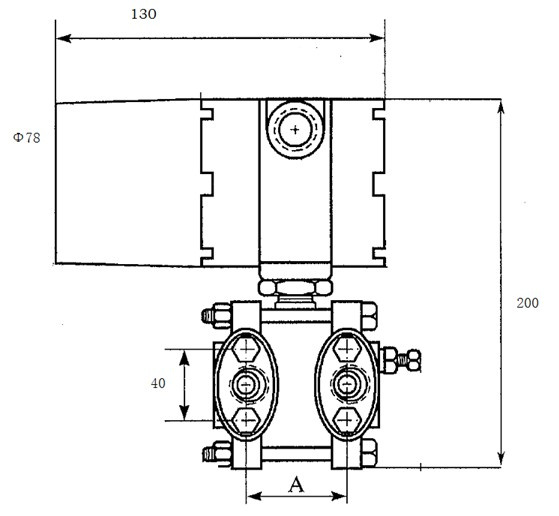

center distance is A=51,54,57mm |
| Chamber Material | stainless steel 316L |
| Satbility | ≤accuracy class / one year |
| Weight | 5.4kg (except additional components) |
Shenyang Academy of Instrumentation Science Co., Ltd. Was derectly belonging to Ministry of Machinery Industry as a large comprehensive scientific research academyt, now is subject to China National Machinery Industry Corporation (SINOMACH). Name listed in national comprehensive technology ability 100 research academies & institutes, AAA class credit enterprise in Liaoning province. One of the national high-tech enterprises, focus on sensor and instrument' S research, develop and manufacture.
After 40 years' Development, we have accomplished 626 scientific research items and 159 awards in state, province, ministry and city, of which there are 20 National Invention Awards and Science and Technology Progress Awards, 56 various awards in province and ministry and 80 patents and know-hows.
The main products are including:
- Pressure sensor die/wafer
- Pressure sensor & transmitter
- Dew-point transmitter
- Wafer dicing machine
- Metal bellows(Hydroformed & Electroformed)
- Optical filter & optical reflector
- Current sensor & gauss meter
We are the only manufacturer for silicon piezoresistive pressure wafer/die, and the only national research center in China.
We are the only manufacturer for electroformed metal bellows in China.
We are the largest manufacture for optical filter in China
We has passed the GB/T19001-2000. Elastic components and transducers has passed GJB9001A-2001.
We gain class AAA in both enterprise credit and banking credit.
SAIS has established a nationwide marketing network, and the products are widely employed in such military and civil industries as spaceflight, aviation, navigation, petrochemistry, Metallurgy, Heat Supply, Thermoelectricity, Hydroelectricity, Coal, Light Industry, Architecture and Pharmacy. Some of the products are exported to overseas market.
We would like to creat HB name brand, collect time elite, introduce others' Merits. It is our responsibilities to constantly increase more advanced techniques to HB products. We also strictly abide by the marketing ideology of faithfulness, carry through quality policy, innovating in products by science and technology, guarantee quality by strict administration, reduce cost by elaborated accounting, reassure clients by gualified services. We seriously complete the sales management mode of Whole Course Credit Administration, repay our clients with profound enterprise cultures, outstanding management, strong core competition abilities and qualified credit.
