| Prod Model: |
3456 |
| Application: |
Submarine Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PE |
| Certification: |
RoHS |
| Type: |
Cat 6A |
| Brand: |
Yinet |
Product Description

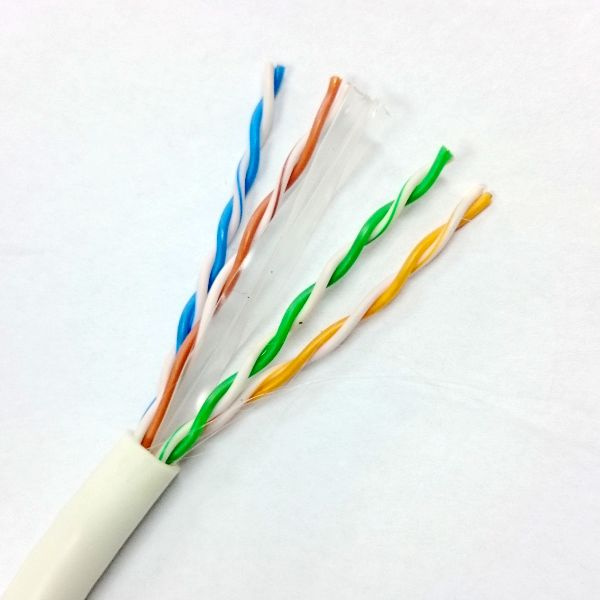

Indoor cat 6 UTP cable
Scope: outdoor -20 ° - 80 °
Single largest segment length: 100 meters

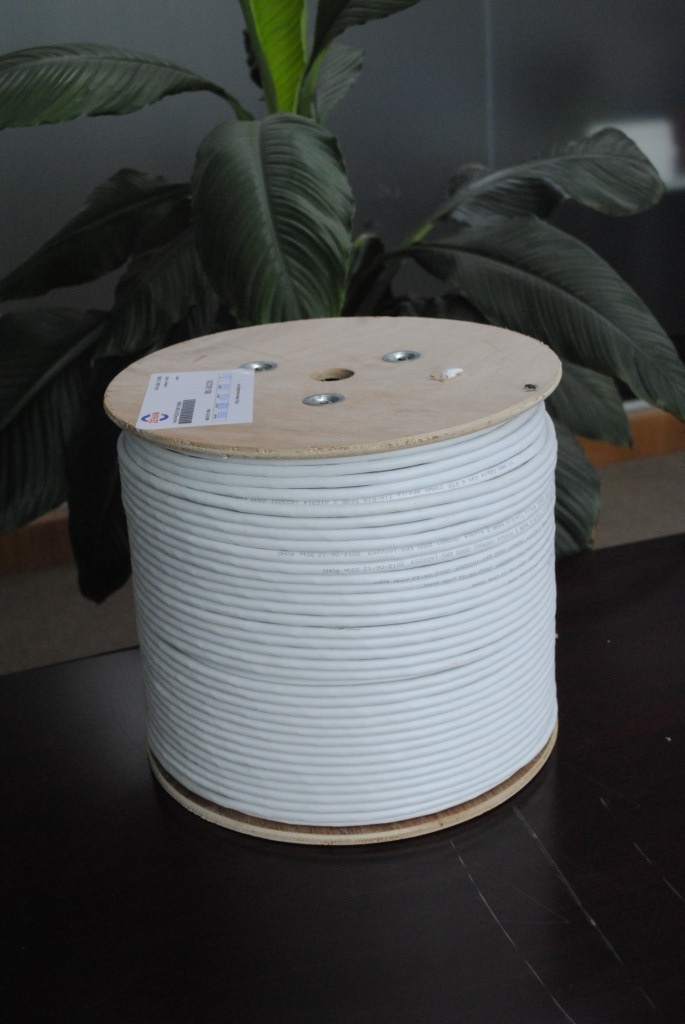

Packing length: 305 meters (per meter ± 0.001) (1000FT)
Wire Gauge: 23AWG (4 * 2 * 0.57 Full copper), diameter: 6.6 ± 0.1mm.
Insulation materials: High density polyethylene HDPE Dow 3364
Outer sheath material: dark gray PVC jacket and water-blocking composite high density HDPE
Characteristic impedance: 100 ± 15 Ω
Conductor material: 99.99% oxygen-free copper
Pass Ministry of Information Industry certification, CE certification,
Maximum DC resistance of less than 9.0Ω / 100m
US environmental certification RsHO, McIntyre certification
Meet or exceed TIA / EIA-568B standard six
Support Fast, Gigabit, Gigabit Ethernet applications
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
The NEXT value beyond cate6 UTP 5db
All performance over gigabit Ethernet performance requirements
higher performance than TIA/EIA 568 six classes a and ISO requirements
system performance up to 500MHZ

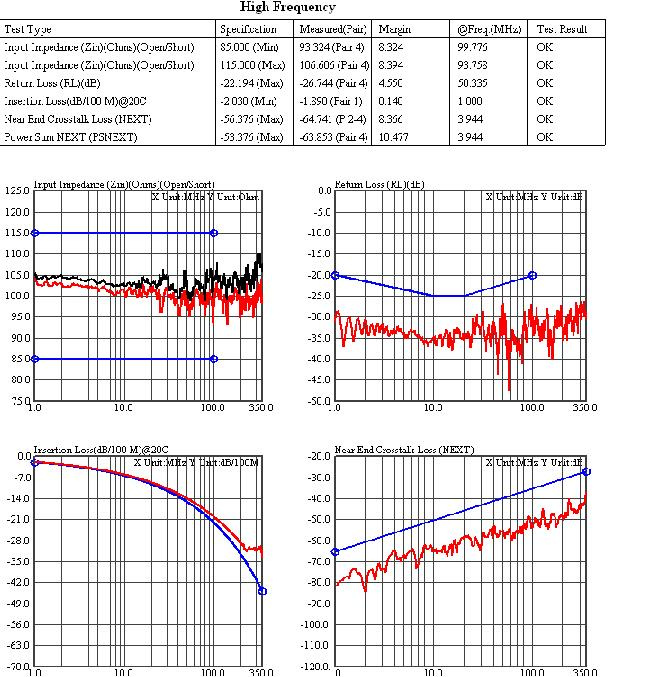

By independent agencies ETL SEMKO/testing and certification
Can effectively prevent the influence of electromagnetic interference, electromagnetic compatibility of the wiring system always maintain excellent and transmission performance
Product application:
Exposed outdoor twisted-pair cable under the condition of digital communication level,water resistance, high and low temperature(+120ºC---80ºC)Snow and rain, severe weather conditions, such as data confidentiality,External disturbance or internal signals signal-to-noise ratio greater than or equal to 30MHZ and Users of residential integrated wiring systems,Satisfied with 1000 MB of data communication. Standard wiring length of 90meters.
Construction Item
| Component A
|
Conductors
| Construction AWG | AWG | 24 |
| Conductors Size | NO/mm | 0.505±0.005 |
| Material | -- | Bare Copper |
Insulators
| Material | -- | Polyolefin HDPE 3364 |
| Diameter | mm | 0.97±0.01 |
| Average Thickness | mm | 0.24±0.01 |
| Insulators ON. | pcs | 4P |
Shield
| Aluminium foil | -- | 20*0.04u |
| Interlace | -- | 16/5*0.12 |
| Tin non-oxygenic copper | mm | 0.505±0.005 |
| Grounding line | Tin non-oxygenic copper | mm | 0.505±0.005 |
| Jacke | Min.Average Thickness | mm | 0.45mm PVC 80ºC 45P ROHS |
| Jacket | Material | -- | HDPE 3364 RoHS |
| Diameter | mm | 6.5±0.1 |
| Min.Average Thickness | mm | 0.35 |
| Color | -- | Black |
| Coding | white | -- | Anti-migration PE RoHS |
| Marking | YI NET CABLE CAT6 S-FTP 24AWG 4PAIRS TIA/EIA 568B.2 A16914 ISO9001-2000 ERS-1556252 ROHS |
| Marking Color | Black | Weight(Kg/KM) PEF | 39.56 | Length/R
| 305M/R |
| Electrical Property |
| Capacitance | nom.15.2 pf/ft |
| Velocity of propagation | nom.67 |
| Operating temperature | -20ºC~80ºC |
| DC resistannce of conductor | max.93/km at 20ºC |
| Characteristic impedance | nom.Impedance 100±15 |
Physical Property
Tensile strength and Elongation for Polyethylene insulatation and PVC Jacket |
| Tensile strength | Polyethylene1...min 1400psi
Jacket......min 1500psi |
| Elongation | Polyethylene1...min 350
Jacket......min 100 |
| After aging Tensile strength | Polyethylene1...min75of before aging
Jacket......min 70of before aging |
| Elongation | Polyethylene1...min75of before aging
Jacket......min 65of before aging |
| | | | | | | |
