Name: CATV FTTH Fiber Optic Optical Connector
Brand: all-electronics-online.com
SKU: 699585972
Availability: InStock
Rating: 4.8 (77 reviews)

Price:	US $ 0.2-0.45/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC/APC/UPC Connector
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connector:	LC/Sc/FC
Fiber Mode:	Single Mode/Multi Mode
Polish:	PC/Upc/APC
Type:	Optical Fiber Distribution Box
Wiring Devices:	ODF
Certification:	RoHS, ISO
Condition:	New
Connector Type:	0.9/2.0/3.0mm

Product Description

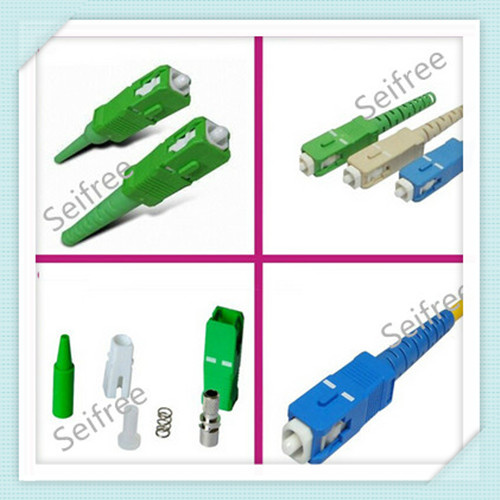

Fiber Optic Connector
Features
·         Compliant with Telcordia,GR-326-CORE,TIA/EIA and IEC
·         Superior Quality Standard PC/UPC/APC Polishing
·         Customer Defined Specifications
·         RoHS Compliance
·         Environmental Stable
·         Low Insertion Loss&back Reflection

Applications
·         CATV Networks
·         Telecommunication Networks
·         Local Area Networks
·         FTTH and FTTx
·         Active Device Termination
·         Testing Instruments

Specifications:

	Single Mode	Multimode
Insertion Loss	<0.10dB	<0.15dB
Return Loss	≥55dB (APC ≥65dB)	≥35dB
Duranility	<0.1dB typical change, 500 matings
Operating Temperature	-40 to +75 °C	-40 to +75 °C
Ferrule Hole Sizes	125.0+1/-0um,Conentricity:≤1um	125um,Conectricity:≤3um
	125.3+1/-0um,Conentricity:≤1um	127um,Conectricity:≤3um
	125.5+1/-0um,Conentricity:≤1um	128um,Conectricity:≤3um
	126.0+1/-0um,Conentricity:≤1um
