| Power: |
288W |
| CCT: |
Ww/ Wh/ R/ G/B/Y/RGB/RGBW Ect Available |
| Lead Time: |
3 Working Days |
| Warranty: |
3years |
| Application: |
Building |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Material: |
Plastic |
| Battery Type: |
Button Battery |
| Voltage: |
12V-24V |
Product Description

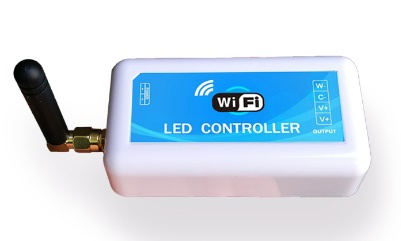

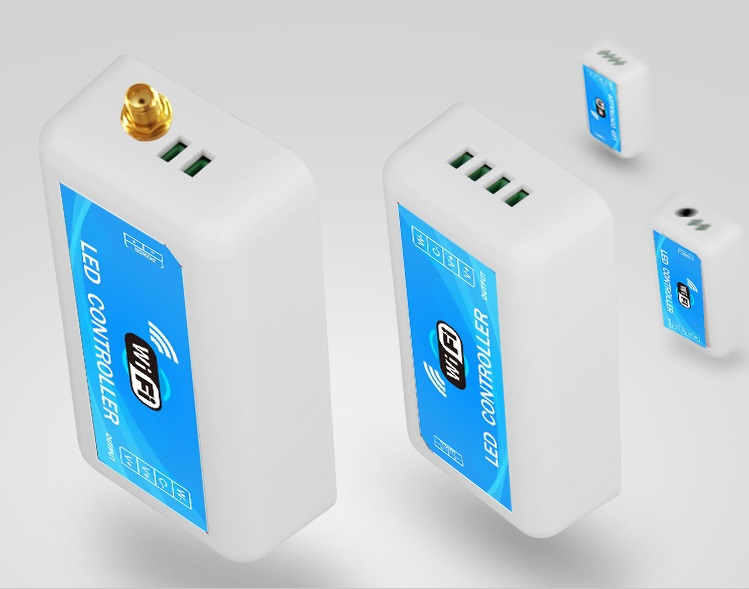

Description:WiFi Led controller is a new way to use your Smart lighting system. As a member of the jee-lite series, it is manipulated by connect to wireless router. Jee-lite is designed to make using your smart lighting system much easier and more convenient. No matter where you are, when it is, you can always control them. Functions like million levels color temperature, 5 dynamic modes.
Function: 1. WiFi cloud control.
2. One by one or group control.
3. Color temperature,100levels brightness.
4. 5dynamic modes,100 levels speed.(Cool white fade,cool white strobe,warm white fade,warm white strobe,cool-warm white fade)

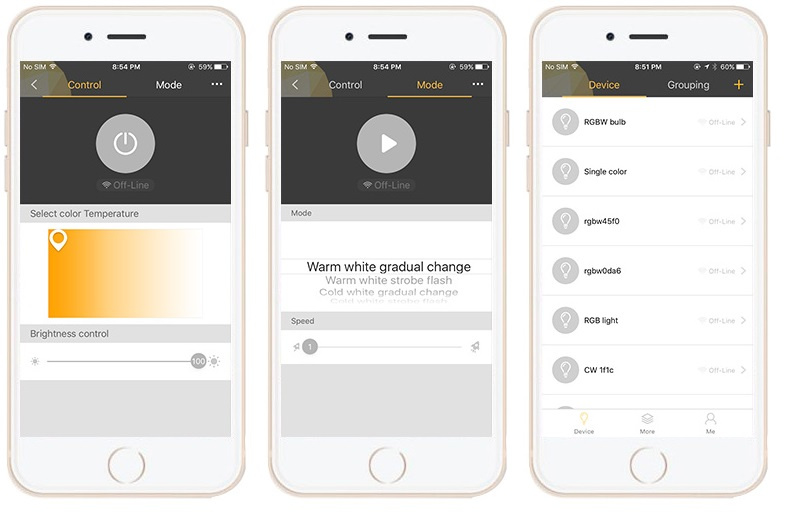

APP interface:
Cables connect ways:
1. Input:DC5V, 12-24V(power adapter AC in,DC out)
2. Output:W-/C-/V+/V+(DC5V,12-24V CW LED Strip light,led module…

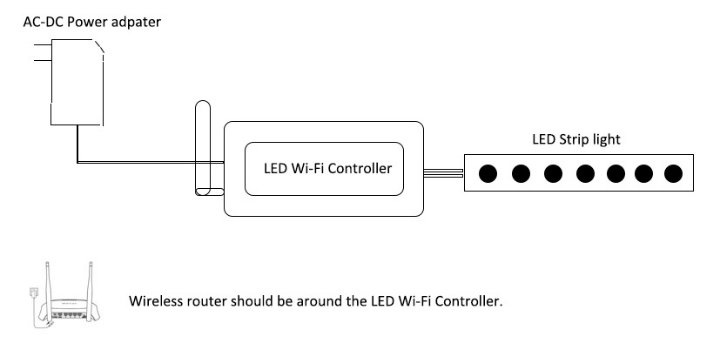

Diagram
- Specifications
| input voltage | DC12~24V |
| output | 2CH |
| Connect | Common anode |
| Size | L85*W45*H23 mm |
| NW | 58g |
| Static power consumption | <1W |
| Output current | <6A/CH |
| Output power | 12V:<144W, 24V:<288W |
| Control distance | No limit |
| distance between controller and router | 100 meters in open area(Depends on the wireless router's signal transmission distance) |
| work temperature | -20-60ºC |
- Related products
Company Information: Easing Home Co,.LTD established in 2012, own 4,000 meters factory, and specializing in manufacturing and producing LED Strips and Aluminum Profile.
FAQQ1:Are you manufacturer?A: Yes, We are manufacture since from 2008, is a well-known company with good reputation in China.
Q2:If I need sample, could you support?A: We can supply you with the sample for free, but the delivery charges will be covered by our customers. For avoiding the misunderstanding, it is appreciated if you can provide the International Express Account for Freight Collect.
Q3:What's your MOQ?A: 1 metric ton for each model.
Q4:How do you charge the mold fee?A: In case we need to open new mold for your ordered profiles, the mold fee will be refunded to customers when your order quantity reaches a certain amount.
Q5:What is the difference between theoretical weight and actual weight?A: Actual weight is the actual weight including packaging. Theoretical weight is identified according to the drawing, calculated by of the weight of each meter multiplied by the length of profile.
Q6: How do you quote price, per ton or per meter?A: We provide more than two pricing modes
Q7:How can you ensure high quality?A: 1) We have our own material production workshop and die factory for 10 years.
2) 300 workers, and workers should be well trained before go to work.
3) 100% QC on line and final inspection, no any defective products can be out from our factory.
4) We have a lot of certificates to ensure our quality, such as ISO9001:2015, ISO14001:2015,SGS certificate, etc.
Q8:What's your payment term?A: 30% T/T deposit + 70% T/T before loading the container .
Easing Home Technology Co., Ltd is one of the largest and fastest growing supplier on LED extrusion profile and LED strip in China, with more than 300 models LED profile and more than 200 models LED strip. Our offer includes aluminum profiles, LED strips and linear lights for residential lighting, commercial lighting and decorative lighting ect.
In the nearly 8years since our founding, We been dedicated to manufacture high quality and cost efficient LED products that use the latest technology. We do honors on every improvement to our products and service in the marketing. To lead the field, we never stop to produce new products to meet the high expectations of our customers.
We have a great team with rich backgrounds in technical and mechanical services in lighting industry, and we are always here ready to help you create whatever lighting solutions your imagination can come up with while using our products. Easing Home is always your great choice for LED lighting integration.
We invite you to join the work we are willing to do together for the GREEN-WORLD.
