| Prod Model: |
H05V-U H05V-R H05V-K |
| Product Name: |
H05V-U H05V-R H05V-K |
| Standard: |
Ce |
| Color: |
as Your Require |
| Core Number: |
as Your Require |
| Rated Voltage: |
Under 1kv |
| Rated Temperature: |
70c 90c 120c 200c |
| Armour: |
None Armour |
| Strand Number: |
7, 19, 37, 54, 61, 91 |
| Purity Of Copper Conductor: |
99.99% |
| Type: |
Insulated |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Conductor Type: |
Solid or Stranded |
| Application: |
Housing Used |
| Range Of Application: |
Normal Electrical Used |
| Brand: |
Hongda |
Product Description
CE Certificate PVC insulated Copper H05V-U H05V-R H05V-K Wire Cable
1. Main application
H05V-K cable is used for the internal wiring of electric motors and transformers as well as other electrical appliances and lighting applications. It can be used in and at electronic appliances for measuring, regulating and controlling. The cables are also ideal for laying in pipes, surface wiring and conduit installations. Specifications according to HD 516 apply for respective specific applications.
H05V-U cable is intended for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.
H05V-R is preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation. Can be used in switchboards and distributor boards or where a thicker strand of multi-wire is required.Found in electronic and electrical equipment and switchgear cabinets designed for export to a European country and for MRO replacement of European made equipment wire.

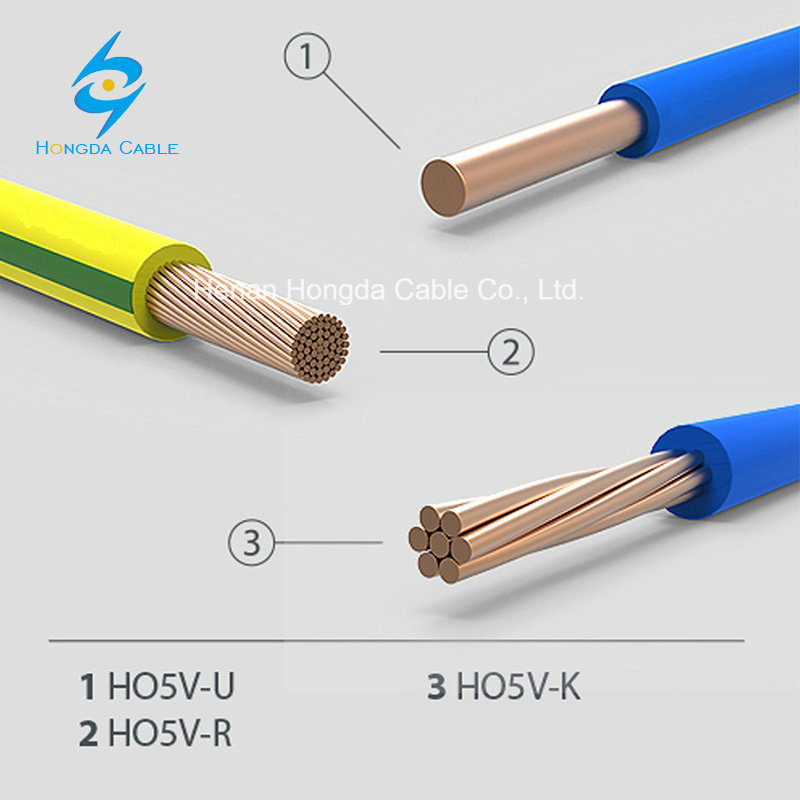

2.H05V-U H05V-R H05V-K PVC Industrial Cable Construction:
Conductors: annealed copper conductor acc. to EN 60228, :
class 1 solid H05V-U,
class 2 stranded H05V-R,
class 5 flexible H05V-K,
Insulation: PVC compound type
Colour of insulation: green/yellow, blue, black, brown or other colours.
Maximum conductor operating temperature: +70°C
Lowest ambient temperature for fixed installation (static): -30°C
Lowest installation temperature (flexing): -5°C
Maximum short-circuit conductor temperature: +160°C
Test voltage 50Hz: 2000V
Flame propagation: IEC 60332-1-2
Minimum bending radius: 4 x cable diameter
Cable Packing : 100m/reels, other forms of packing and delivery are available on request
3. Cabel H05V-U H05V-R H05V-K 300/500V Technical Data:
| Rated voltage | 300/500V |
| Test voltage | 2000V |
| Flexing bending radius | 12.5 x Ø |
| Static bending radius | 12.5 x Ø |
| Flexing temperature | -5º C to +70º C |
| Static temperature | -30º C to +80º C |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 10 MΩ x km |
4. Packing:
a)Packing lengths: 100ft/roll, 100m/roll, 300ft/roll.
b) Inner packing: wooden drum, plastic drum, paper drum.
c) Outer packing: carton box, pull out box.
d) Other packing available according to customer.
5 . Specifications
Cabel H05V-K PVC electric wire 300/500V Specification
CONSTRUCTION
n x mm2 | OUTER DIAMETER
cca. mm | Cu WEIGHT
kg / km | CABLE WEIGHTcca.
kg / km |
| 1 x 1.5 | 3 | 14,4 | 20 |
| 1 x 2.5 | 3,6 | 24 | 30 |
| 1 x 4 | 4,1 | 38 | 50 |
| 1 x 6 | 4,6 | 58 | 65 |
| 1 x 10 | 6 | 96 | 110 |
| 1 x 16 | 7 | 154 | 165 |
| 1 x 25 | 8,5 | 240 | 242 |
| 1 x 35 | 9,9 | 336 | 350 |
| 1 x 50 | 11,7 | 480 | 482 |
| 1 x 70 | 11,7 | 672 | 662 |
| 1 x 95 | 15,3 | 912 | 885 |
| 1 x 120 | 16,8 | 1152 | 1123 |
| 1 x 150 | 19,2 | 1440 | 1390 |
| 1 x 185 | 21,3 | 1776 | 1733 |
| 1 x 240 | 23,8 | 2304 | 2264 |
H05V-U PVC electric Cable 300/500V Specification
| AWG | No. of Cores x
Nominal Cross Sectional Area
# x mm² | Nominal Overall
Diameter
mm | Nominal Copper
Weight kg/Km | Nominal Weight
kg/Km |
| 20 | 1 x 0.5 | 2.1 | 4.8 | 9 |
| 18 | 1 x 0.75 | 2.2 | 7.2 | 11 |
| 17 | 1 x 1 | 2.4 | 9.6 | 14 |
| 16 | 1 x 1.5 | 2.9 | 14.4 | 21 |
| 14 | 1 x 2.5 | 3.5 | 24 | 33 |
| 12 | 1 x 4 | 3.9 | 38 | 49 |
| 10 | 1 x 6 | 4.5 | 58 | 69 |
| 8 | 1 x 10 | 5.7 | 96 | 115 |
H05V-R PVC wires 300/500V Specification
| AWG | No. of Cores x
Nominal Cross Sectional Area
# x mm² | Nominal Overall
Diameter(mm) | Nominal Copper Weight
kg/Km | Nominal Weight
kg/Km |
| 20(7/29) | 1 x 0.5 | 2.2 | 4.8 | 9 |
| 18(7/27) | 1 x 0.75 | 2.4 | 7.2 | 12 |
| 17(7/26) | 1 x 1 | 2.6 | 9.6 | 15 |

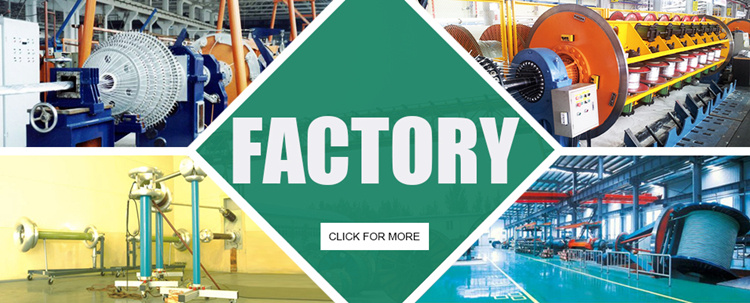

6.Factory
Henan Hongda Cable Co., Ltd. located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Hongda Cable covers an area of 100,000 square meters, including 50,000 square meters of building area. We have more than 120 staff members and professional workers. our fixed assets of 90,000,000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity
Henan Hongda Cable Co. Ltd. is the original Zhengzhou Hongda Cable Co. Ltd. established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products,We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 300 (sets) domestic and oversea-leading production and testing equipment

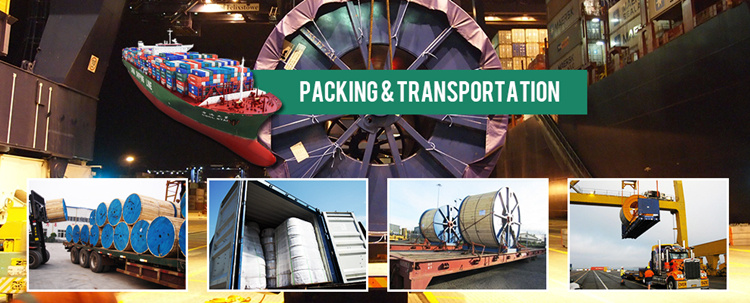

7.Packing and Transportation
We provide you with the best product packaging design services, thereby allowing you to save more shipping charges
6.Certificate
7.FAQ
Q: Are you the factory or the trading company?
A: We are the factory.
Q: How long is your guarantee Period?
A: We uaually offer 1 year guarantee for our general products.
Q: How can I get the samples?
A: We can make the sample order. And usually we will charge for it.
But the samples fee will be return to you when you make the bulk order.
Q: Where is your factory? How can we visit your factory?
A: Our factory located in Zhengzhou city, Henan Province. You could reach here by train and by air.
We can pick you up in the airport and the railway station.
Q; What is your MOQ?
A: It`s base on the cable type or wire type. Please contact me. We will let you know.
