China Professional Wide Application Automatic Welding Machine for Sale

Prod Model:	GS-DC030
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Rating:	3000W
Beam Diameter:	20mm-25mm
Water Tank Volume:	270L
Model:	Sjr-500bx(G)
Laser Gas:	He,N2,CO2
In And Out Water Pressure:	5bar

Product Description

Laser welding profile
Laser welding principle is to focus the laser to a smaller diameter (Φ0.15~0.3), and then use the high beam energy to melt the welding metal, so as to achieve laser deep soluble welding effect.


Cooling system
Adopting DC030 matched LSJR-500BX cooling system

Model	LSJR-500BX(G)
Rated refrigerating	50KW(Based on the ring temperature 35 ºC,  water temperature 25 ºC)
Power system	3P~380V/50Hz
Rated input power/current	22.5KW /43.5A
Water flow range	10m3/h
Water pressure adjusting range	6bar
Water tank volume	270L
Refrigerant	R22
Default set	(Set temp 28 ºC, temp control precision ±1ºC) (High temperature alarm temperature 35 ºC, low temperature alarm temperature 5 ºC)
Cooling medium	Distilled water, purified water
Overall dimensions(W*H*D)	890×1820×1500(Unit: mm)
Operating environment	Environmental temp≤43ºC, Water inlet temp≤45ºC

laser parameters

Power	Power rating	3000W
	Power dynamic range	300-3000W(Adjustable)
	Power stabilit	<±2%
Light beam	Beam mode	Fundamental mode (00 mode)
	Divergence angle	<0.15 mrad (Full-shaped)
	Beam diameter	20mm-25mm( <10m)
	Directivity stability         <0.2 mrad
	Polarized light	45º or vertical polarization
Pulse	Super intensity pulse	8-5000Hz
	Pulse width	26μs-Continuous Wave
	oblique wave generator	8-5000Hz
Gas	Laser gas	He,N2,CO2
	Laser gas consumption	Total≤0.2L/per hour
Electric quantity	Max Power consumption	45KVA(380V,50Hz)
Cooling liquid	Heat load	39KW(environmental temp 40ºC)
	Coolant temperature	20ºC
	Coolant temperature stability	Max±1ºC
	Coolant flow	Min 42L/per minute
	Inlet pressure	Min 5.7bar, Max 10bar
	In and out water pressure	5bar(When the Min flow)
Environment	Temp	Environmental temp 0-40ºC
	Relative humidity	<85%

Advantages of Laser welding
1. Fast speed, heat distortion of the workpiece is small;
2. High energy melt contact surface, welding strength is higher than the substrate;
3. Easy automation production;
4. More Comprehensive economic benefits.
5. Green processing, pollution-free and pollution-free

Our Company
WUHAN HANS GOLDENSKY LASER SYSTEM CO., LTD. is a subsidiary of Han's Laser, located in East Lake High-tech Development Zone, "China Optical Valley",Wuhan. It's subsidiary company of HAN'S Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.


Welding head
Equipment uses the US LASERMECH's fiber welding head. It is specifically for fiber-coupled laser transmission welding head intelligent design, the product is designed with a built-in smart sensors and built-in water manifold full compact design, rugged crashworthiness, stable performance, fully meet the 24 hours in- a -row working plant environment. Operation of
the optical fiber welding head is very simple and easy to use , protecting lens and focusing lens drawer mirror chamber design can be more flexible and easy to replace, but also can better protect
the inside optical unit, in order to protect welded joints have a longer service life. Optical fiber welding head configuration is very flexible, it can be based on the specific requirements of end-users, the optional in-line type or level of the incident, and whether to use CCD coaxial monitoring, auto-focus, side to send the wire, an air knife, coaxial nozzles, welding monitoring unit and a special focus unit module (bifocal or rectangular beam), etc.

Maturity and stability of laser processing
Through years of laser welding, heat treatment, laser cladding, laser cutting application,laser industry has accumulated a lot of process data,including transmission gear welding, saw blade welding,radiator welding,steel galvanized steel plate welding,filter welding,heat exchanger welding,aluminum alloy battery box welding,three-dimensional space welding,rapid prototyping of blade,heat treatment and cladding of hydraulic prop,cutting teeth, scraper chamfer, large roll (38 tons), large blast furnace gas regulator (5 tons), large gear (4 tons) and tubing,etc,cutting for sheet metal, steel pipe. These successful cases indicate that laser application can create high economic benefit and social benefit to users.

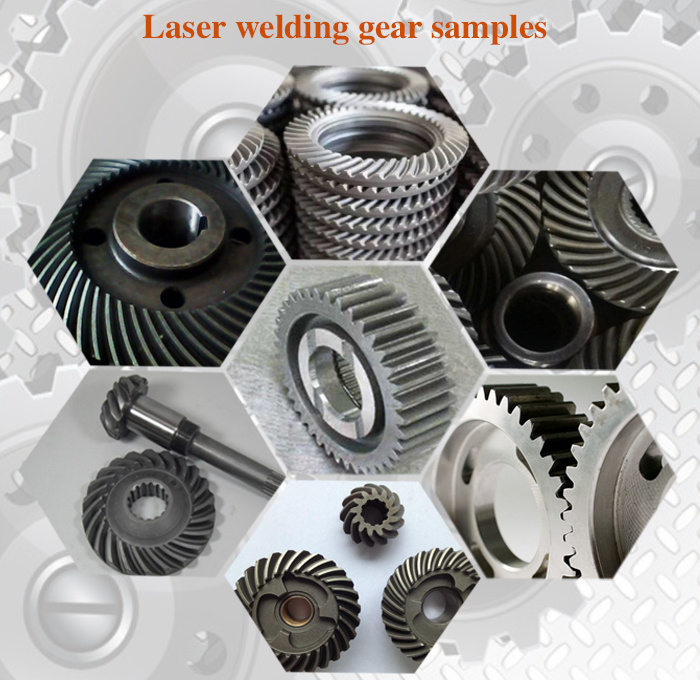

Laser  welding  gear samples


Laser welding application
Laser welding is mainly used in automobile, tools, home appliance, steel industry and others, for example nest gear of transmission,flying wheel,airbag,rock arm,muffler, silicon oil shock absorber, hydraulic torque converter, wood saw blade, diamond saw blade, radiator of water.
