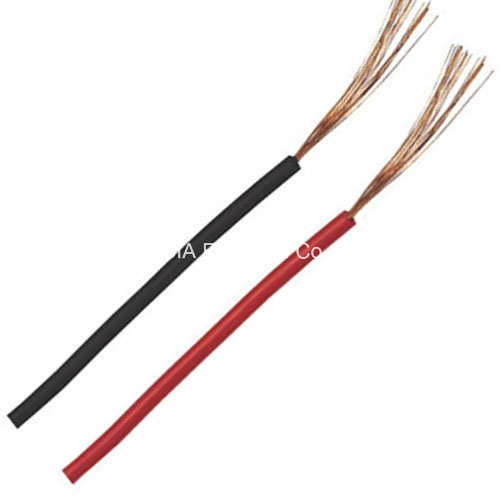

Copper Conductor PVC Insulation RV Electrical Cable

Name: Copper Conductor PVC Insulation RV Electrical Cable
Brand: all-electronics-online.com
SKU: 742036925
Availability: InStock
Rating: 4.8 (148 reviews)

Price:	US $ 0.1-1/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BV electric cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Insulated
Conductor Type:	Solid
Application:	Heating
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Range Of Application:	Low Voltage

Product Description

Specifications

1 RV CABLE
2 CCC VDE IEC SGS
3 Factory price, free sample
4 Factory manufaturer

Copper Conductor PVC Insulation RV Electrical Cable IEC certificate

1 Standard
GB 5023.11997, JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997, IEC60227

2 Rated Voltages:
300/500V 450/750V (600/1000V also available)

3 Application
The products is suitable for use in power installations, fixed wiring or flexibleconnections for electrical appliances
Like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V or less
Working Tempreture
The temperature allowing the cable of 227IEC02(RV) to work for long time should not exceed +70 centigrade, and installation temperature should not less than -15centigrade. And for RV-105, the operating temperature should not exceed 105 centigrade.

4 Model and Name
RV: Single-core soft drawn non-sheathed cable
5 Solid copper electric wire / Stranded Copper Electric Wire

Nominal sectional area mm 2	Conductor No/Dia. mm	Max overall Dia. mm	Reference Weight kg/km
0.3	16/0.15	2.3	6.4
0.4	23/0.15	2.5	8.1
0.5	16/0.2	2.6	9.1
0.75	24/0.2	2.8	12.2
1.0	32/0.2	3.0	15.1

RV 450/750V

Nominal sectional area mm 2	Nominal Insulated thick mm	Max overall Dia. mm	Min insulated resistance at 70MΩ/km
1.5	0.7	3.4	0.010
2.5	0.8	4.1	0.009
4	0.8	4.8	0.007
6	0.8	5.3	0.006
10	1.0	6.2	0.0056
16	1.0	8.1	0.0046
25	1.2	10.2	0.0044
35	1.2	11.7	0.0038
50	1.4	13.9	0.0037
70	1.4	16	0.0032
95	1.6	18.2	0.0032
120	1.6	20.2	0.0029
150	1.8	22.5	0.0029
185	2.0	24.9	0.0029
240	2.2	28.4	0.0028
