Rvv Cable PVC Insulated and Sheathed Flexible Wire

Name: Rvv Cable PVC Insulated and Sheathed Flexible Wire
Brand: all-electronics-online.com
SKU: 742037415
Availability: InStock
Rating: 5 (69 reviews)

Price:	US $ 0.1-4/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RVV cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Insulated
Conductor Type:	Stranded
Application:	Heating
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Range Of Application:	Home and Construction

Product Description

Specifications

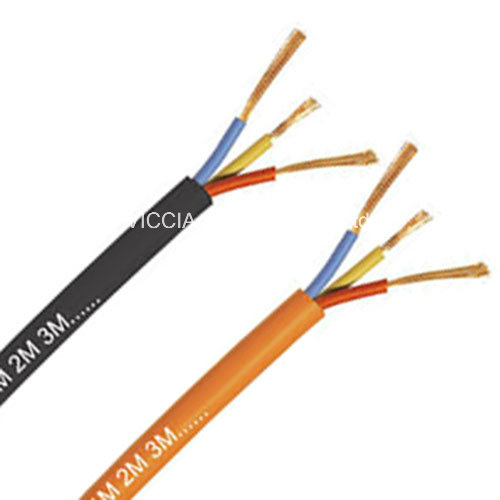

PVC Insulated High Quality PVC Sheath flexible cable
1- Flexible Copper Conductor
2- PVC Insulation

RVV cable PVC Insulated and Sheathed flexible wire

1. Application

This prduct is suitable to be used in household appliances, electric tools and lighting in home, office and similar indoor place

Where need flexible wire

2. Working voltage: 300/500V

Nominal Section (MM 2 )	Appro. O.D. (mm)	Conductor Resistance (20 °C , Ohm/KM)	Appro. Weight (KG/KM)
2X0.75(A)	7.6	26.0	50.2
2X0.75(B)	4.2x 6.8	26.0	35.0
2X1.0(A)	7.8	19.5	69.9
2X1.0(B)	4.5x7.1	19.5	56.7
2X1.5	8.8	13.3	92.0
2X2.5	11.0	7.98	132

3X0.75	8.0	26.0	66.1
3X1.0	8.4	19.5	83.3
3X1.5	9.6	13.3	114
3X2.5	11.5	7.98	160

4X0.75	8.6	26.0	81.1
4X1.0	9.2	19.5	102
4X1.5	11.0	13.3	147
4X2.5	12.5	7.98	203

5X0.75	9.4	26.0	98.7
5X1.0	11.0	19.5	125
5X1.5	12.0	13.3	178
5X2.5	14.0	7.98	246

2 Core Flexible Cable Specification:

20.2MM 2 ( 212*0.15BC )	OD:4.6MM
20.3MM 2 ( 216*0.15BC )	OD:4.8MM
20.4MM 2 ( 223*0.15BC )	OD:5.0MM
20.5MM 2 ( 228*0.15BC )	OD:5.2MM
20.75MM 2 ( 224*0.20BC )	OD:6.5MM
21.0MM 2 ( 232*0.20BC )	OD:6.7MM
21.5MM 2 ( 248*0.20BC )	OD:7.7MM
22.5MM 2 ( 277*0.20BC )	OD:9.3MM
