Three Core PVC Insulated Price Flat Electric Wire Solid Copper Wire BVVB

Name: Three Core PVC Insulated Price Flat Electric Wire Solid Copper Wire BVVB
Brand: all-electronics-online.com
SKU: 742033715
Availability: InStock
Rating: 4.6 (36 reviews)

Price:	US $ 0.1-2/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BVVB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Insulated
Conductor Type:	Solid
Application:	Heating
Conductor Material:	Copper
Insulation Material:	XLPE
Certification:	CCC
Range Of Application:	Construction or Building

Product Description

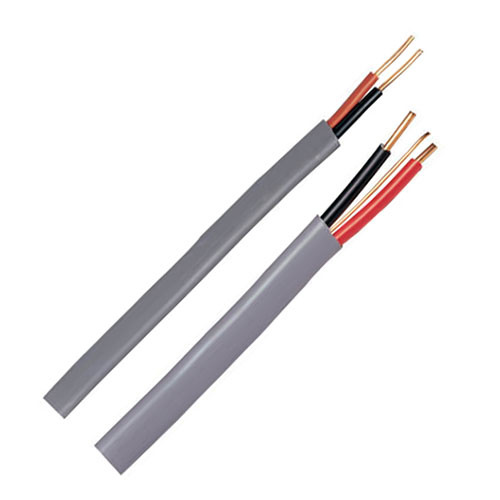

Wire - Copper core PVC insulated PVC sheathed flat cable
1. Wire - Copper core PVC insulated PVC sheathed flat cable is made complying with the national standed and have pass the CCC--China Compulsory Certification, which contains the recondition of national security certificate--CCEE. Imports of SafetyandQualityLicensingSystem--CCIB. China Certification Electromagnetic Compatibility--EMC
2. Range of application: Fit A. C rated voltage300/500V
3. The permissable continuous operating temperature of wire shall not exceed 70 centigrade and the installation temperature of wire shall not be lower than -15 degree
4. We can also customize the electrical wire and cable as your requestyou can decide the core count and cross seaction of the conductor, as well as the jacket and insulation
5. Technial Parameter

Nominal seaction(mm²)	Type	Max Outer Dia (mm)	Resistance in 20°c (Ω/km)	Min Insulation resistance in 70°c (Ω/km)
2*0.75	2*1/0.97	4.6*7.1	24.5	0.012
2*1.0	2*1/1.13	4.8*7.4	18.1	0.011
2*1.5	2*1/1.38	5.3*8.5	12.1	0.011
2*2.5	2*1/1.78	6.2*10.1	7.41	0.010
2*4(A)	2*1/2.25	6.7*11.1	4.61	0..085
2*4(B)	2*7/0.85	7.2*11.5	4.61	0.0080
2*6(A)	2*1/2.76	7.5*12.5	3.08	0.007
2*6(B)	2*7/1.04	8.0*13.0	3.08	0.0065
2*10	2*7/1.35	9.5*16.2	1.83	0.0065
3*0.75	3/1/0.97	4.6*9.6	24.5	0.012
3*1.0	3*1/1.13	4.8*10.1	18.10	0.011
3*1.5	3*1/1.38	5.3*11.7	12.10	0.011
3*2.5	3*1/1.78	6.2*14.0	7.4	0.010
3*4(A)	3*1/2.25	7.0*15.8	4.61	0.0085
3*4(B)	3*7/0.85	7.4*16.5	4.61	0.0080
3*6(A)	3*1/2.76	7.5*17.5	3.08	0.007
3*6(B)	3*1/1.04	8.0*18.0	3.08	0.0065
3*10	3*10	9.5*25.0	1.83	0.0065

VICCIA Electrical Co., Ltd., a member of Fuzhou Light Industry Co., Ltd, is located in Sanming City of Fujian Province. We specialized in manufacturing and supplying multiple products, particularly in the field of electrical appliance, such as Fiberglass ladder and Aluminum ladder, high and low voltage product, power fittings and so on. Started with the business of international trading and sales agent of domestic supplier and overseas buyer, we now have skilled and experienced engineer team in design and manufacturing, as well as trained talents in business and management which enables us to respond effectively to the demands of market and our customers at all times.

The slogan of VICCIA is to provide the highest quality services to each customer, and to provide products to each customer with reasonable price and good quality. At the same time, we can develop and manufacture gratifying products in accordance with customers' certain requirements.

Put your trust in VICCIA, let us work together and achieve more.
