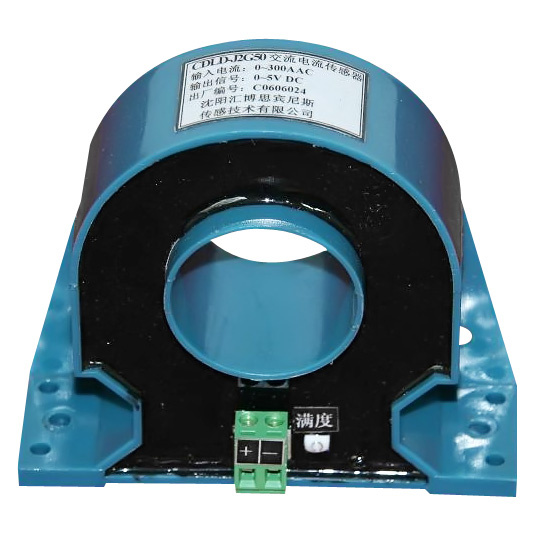

Current Transducer (Wide Range AC) (G2)

Name: Current Transducer (Wide Range AC) (G2)
Brand: all-electronics-online.com
SKU: 676775142
Availability: InStock
Rating: 4.4 (20 reviews)

Price:	US $ 45-55/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	G2
Markets:	North America,South America,Eastern Europe,Western Europe
IP Rating:	Mixture

Product Description

Using new electromagnetic isolation technology
Straight-through current input mode, high isolation ability
High accuracy with low power dissipation, high performance-price ratio
Linear measuring range: 0 - 120% of nominal input
Frequency: 25Hz - 5kHz, suitable for the current measure in range of medium frequency and power frequency
Isolation: >2kV DC 1min
Overload: 1000% of nominal input, 5 seconds.
Mean Time Between Failure(MTBF): >50000 hours
True RMS conversion output(special customer request is available)

Specifications

Model	Accuracy	Input	Output Unit	Output	Responding Time	Static Power Consumption	Power Supply	Working Temperature (ºC)
CDLH-J1G22-XXA/	1.0	Ф32 through hole: 400A;500A;600A; Value of "XX" collected form the range above.	V_G	5V	15μs	300mW	±12V DC	-10~70
BDLH-J2G22-XXA/	1.0		V_Z	5V	300ms	300mW	±12V DC	-10~70
BDLH-J2G25-XXA/	1.0		V_Z	5V	300ms	300mW	12V DC	-10~70
BDLH-J4aG25-XXA/	1.0		I_Z	20 mA	300ms	400mW	12V DC	-10~70
BDLH-J4aG21-XXA/	1.0		I_Z	4~20 mA	300ms	500mW	24V DC	-10~70
