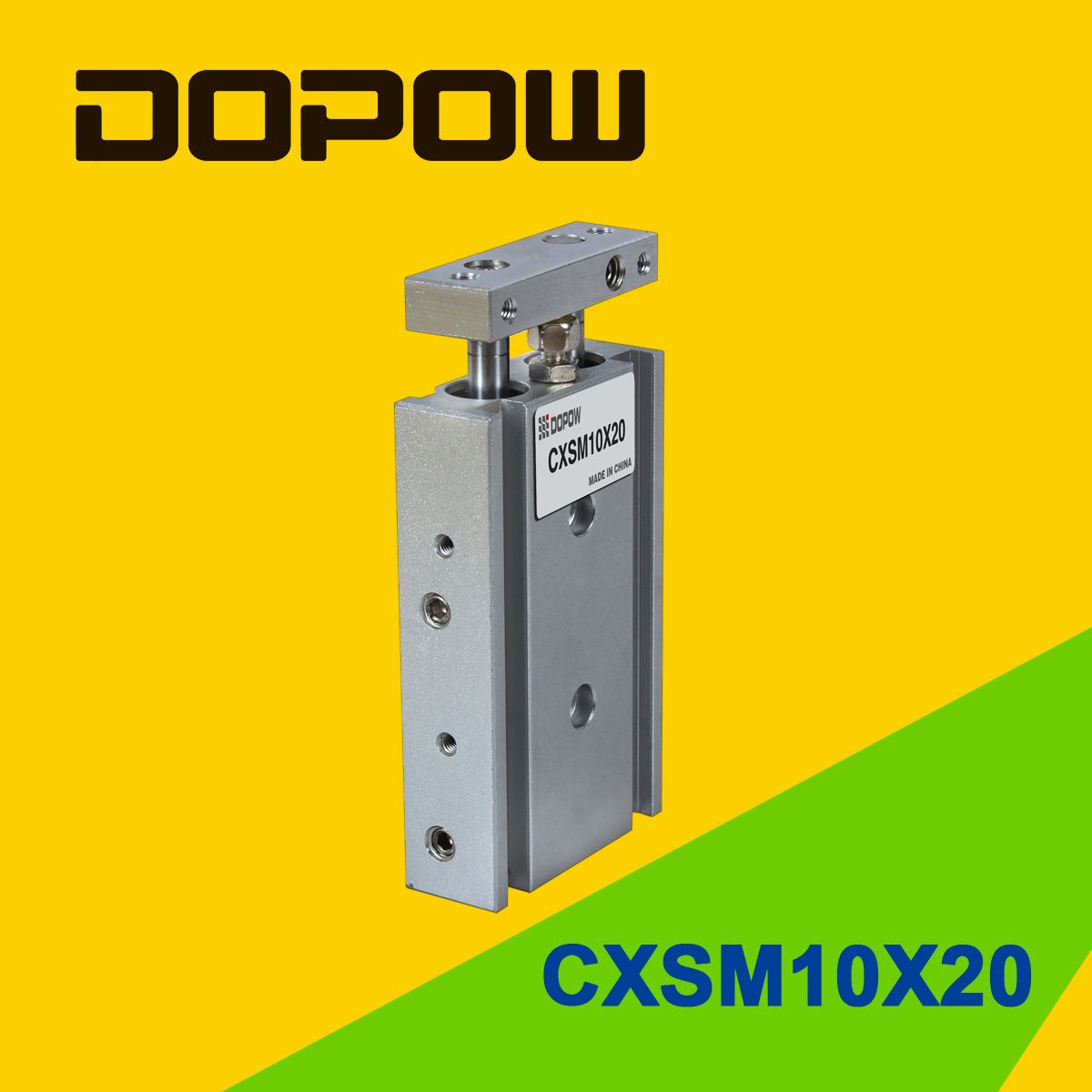

Cxsm 10-20 Double Cylinder Pneumatic Slide Cylinder Compact Air Cylinder

Name: Cxsm 10-20 Double Cylinder Pneumatic Slide Cylinder Compact Air Cylinder
Brand: all-electronics-online.com
SKU: 816222355
Availability: InStock
Rating: 4.5 (61 reviews)

Price:	US $ 4.99-6.99/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CXSM10-20
Bore:	10mm/16mm/20mm/25mm/32mm
Stroke:	5-100mm
Max Using Pressure:	0.7MPa
Port Size:	M5, 1/8"
Material:	Aluminum
Structure:	Piston Cylinder
Power:	Pneumatic
Standard:	Standard
Pressure Direction:	Double-acting Cylinder

Product Description

DOPOW CXSM series widely used in pneumatic machines and some industrial fields, like printing industry, automatic control industry,etc.Dual-piston rod provides a high degree of anti-bend and reverse the rigidity of the cylinder, ensuring excellent service life and oriented performance.

1. Double-acting air (pneumatic) cylinder with two air ports for pushing and pulling piston rods in both directions
2. Compact body with dual piston rod design and slide bearing for non-rotating stability and strength in stopper applications
3. Anodized aluminum for resistance to corrosion and tarnishing with carbon-steel piston rods
4. Symmetrical mounting with reverse mounting mechanism for attaching to flat, rigid surfaces
5. Switch ready with magnet sensor installed for connecting to electrical circuits for automation

ORDERING CODE
CXS	M	20	50
CXS:Standard double shaft with magnet type	Bearing type	Bore Size	Stroke:0~100mm
	M:Sliding bearing type	6:6mm
		10:10mm
		16:16mm
	L:Ball guide bearing type	20:20mm
		25:25mm
		32:32mm

SPECIFICATION
Bore size(mm)	6	10	16	20	25	32
working Medium	Filtered compressed air
Motion Pattern	Double action
Pressure Endurance	1.05MPa
Operating pressure range	0.15~7MPa	0.1~7MPa		0.05~0.7MPa
Ambient Temperature	5~60ºC
Buffer cushioning	Both ends rubber buffer
Bearing type	Sliding bearing or Ball guide bearing for option
Adjustable stroke	0~5mm
None-Rotation Precision(Slide bearing)	±0.1°	±0.15°	±0.13°	±0.11°	±0.1°	±0.08°
None-Rotation Precision (Ball guide bearing)	±0.1°	±0.1°	±0.07°	±0.06°	±0.05°	±0.04°
Port size	M5X0.8	M5X0.8	M5X0.8	M5X0.8	M5X0.8	G1/8

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	NN	O	OO	P
CXS10	46	17	44	15	7.5	2-M4×0.7	35	20	4	8	9	20	2-Φ3.4through	2-M3×0.5	Φ6	5	M4×0.7×14.5L	33.6
													2-Φ6.5	thread depth 5
													Counterbore depth3.3
CXS15	58	20	56	18	9	2-M5×0.8	45	25	5	10	9	30	2-Φ4.3through	2-M4×0.7	Φ8	6	M4×0.7×14.5L	48
													2-Φ8	thread depth 6
													Counterbore depth4.4
CXS20	64	25	62	23	11.5	2-M5×0.8	50	28	6	12	12	30	2-Φ5.5through	2-M4×0.7	Φ10	8	M6×1.0×18.5L	53
													2-Φ9.5	thread depth 6
													Counterbore depth5.3
CXS25	80	30	78	28	14	2-M6×1.0	60	35	6	12	12	30	2-Φ6.9through	2-M5×0.8	Φ12	10	M6×1.0×18.5L	64
													2-Φ11	thread depth 7.5
													Counterbore depth6.3
CXS32	98	38	96	36	18	2-M6×1.0	75	44	8	16	14	30	2-Φ6.9through	2-M5×0.8	Φ16	13	M8×12.5×23L	76
													2-Φ11	thread depth 8
													Counterbore depth6.3

Model

CXS10

M4×0.7

8.5

4-M5×0.8

4-M3×0.5

2-M4×0.7

M3×0.5×10L

M3×0.5×5L

thread depth 4.5

thread depth 7

CXS15

M4×0.7

38.5

4-M5×0.8

4-M4×0.7

2-M5×0.8

M5×0.8×10L

M4×0.7×4L

thread depth 4.5

thread depth 5

thread depth 8

CXS20

M6×1.0

7.75

12.5

7.75

9.5

6.5

4-M5×0.8

8-M4×0.7

2-M6×1.0

M6×1.0×12L

M5×0.8×5L

thread depth 4.5

thread depth 6

thread depth 10

CXS25

M6×1.0

8.5

2004-1-8

8-M5×0.8

2-M8×1.25

M6×1.0×14L

M6×1.0×5L

thread depth 6.5

thread depth 7.5

thread depth 12

CXS32

M8×1.25

11.5

2004-1-8

8-M5×0.8

2-M8×1.25

M8×1.25×16L

M8×1.25×8L

thread depth 6.5

thread depth 7.5

thread depth 12

Model	S	SS	Z	ZZ	Model	S	SS	Z	ZZ
CXS10-10	10	65	30	82	CXS15-10	10	70	25	89
CXS10-20	20	75	30	92	CXS15-20	20	80	25	99
CXS10-30	30	85	40	102	CXS15-30	30	90	35	109
CXS10-40	40	95		112	CXS15-40	40	100		119
CXS10-50	50	105		122	CXS15-50	50	110		129
Model	S	SS	Z	ZZ	CXS20-40	40	110	40	134
CXS20-10	10	80	30	104	CXS20-50	50	120	40	144
CXS20-20	20	90	30	114	CXS20-75	75	145	60	169
CXS20-30	30	100	40	124	CXS20-100	100	170	60	194
Model	S	SS	Z	ZZ	Model	S	SS	Z	ZZ
CXS25-10	10	82	30	106	CXS32-10	10	92	40	122
CXS25-20	20	95	30	116	CXS32-20	20	102	40	132
CXS25-30	30	102	40	126	CXS32-30	30	112	50	142
CXS25-40	40	112		136	CXS32-40	40	122		152
CXS25-50	50	122		146	CXS32-50	50	132		162
CXS25-75	75	147	60	171	CXS32-75	75	157	70	187
CXS25-100	100	172	60	196	CXS32-100	0	182	70	212
