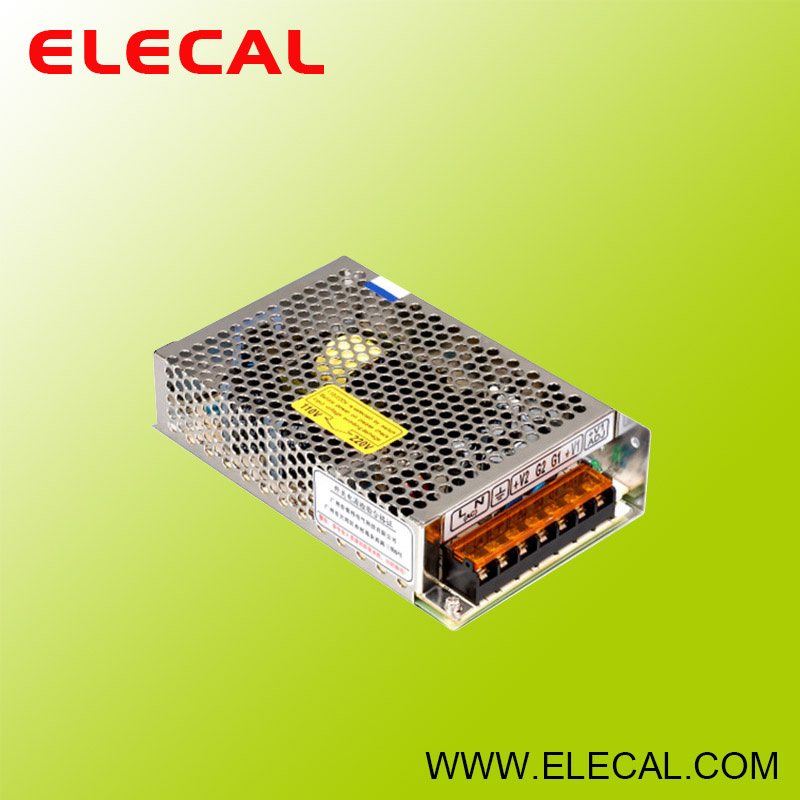

D-50 Multiple Output Switching Power Supply

MODEL

D-50A

D-50B

OUTPUT

DC VOLTAGE

5V

12V

5V

24V

RATED CURRENT

GA

2A

6A

1A

CURRENT RANGE

1-6A

0.3-2A

1-6A

0.2-1A

RATED POWER

54W

54W

RIPPLE & NOISE (max.) Not«2

50mVp-p 1100mVp-p

50mVp-p 1100mVp-p

VOLTAGE ADJ. RANGE

CH1:4.75 _ 5.5V

CH1:4.75-5.5V

VOLTAGE TOLERANCE Not«.3

0%

+5,-8%

0%

±8.0%

LINE REGULATION

±0.5%

±1.0%

±0.5%

±1.0%

LOAD REGULATION

±0.5%

±5.0%

±0.5%

±8.0%

SETUP, RISE, HOLD TIME

200ms, 100ms, 20ms at full load

INPUT

VOLTAGE RANGE

85-132VAC/170-264VAC selected by switch 240 - 370VDC

FREQUENCY RANGE

47 - 63HZ

EFFICIENCY{Typ.)

73% | 73%

AC CURRENT

1.3A/115VAC 0.65A/230VAC

INRUSH CURRENTfmax.)

COLD START 18A/115VAC 36A/230VAC

LEAKAGE CURRENT

<0.5mA/240VAC

PROTECTION

OVER LOAD

105 ~ 150% rated output power

Protedion type: Fold back current limiting, recovers automatically after fault condition is removed

ENVRONMEIT

WORKING TEMP.

-10 - +60°C (Refer to output load derating curve)

WORKING HUMIDITY

20-90% RH non-condensing

STORAGE TEMP., HUMIDITY

20 ~+85OC, 10-95% RH

TEMP. COEFFICIENT

±0.03%rc (0 - 50t:) on +5V output

VIBRATION

10 -500Hz, 2G 10min./1cyde, period for 60min. each along X, Y, Zaxes

SAFETY &

EMC

SAFETY STANDARDS

Design refer to UL1012

WITHSTAND VOLTAGE

l/P-0/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

l/P-O/P, l/P-FG, O/P-FG:100M Ohms/500VDC

EMI CONDUCTION S RADIATION

Design refer to FCC Parti 5 J Conduction

OTHERS

MTBF

408.9K hrs min_ MIL-HDBK-217F(25t:}

DIMENSION

159*97*38mm(L*W*H)

PACKING

0.53Kg; 24pcs/13.6Kg/0.75CUFT

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC Input, rated load and 25X> of ambient temperature.

2. Ripple & noise are mea&urad at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : indudas set ip tolerance, line regulation and load regulation.
