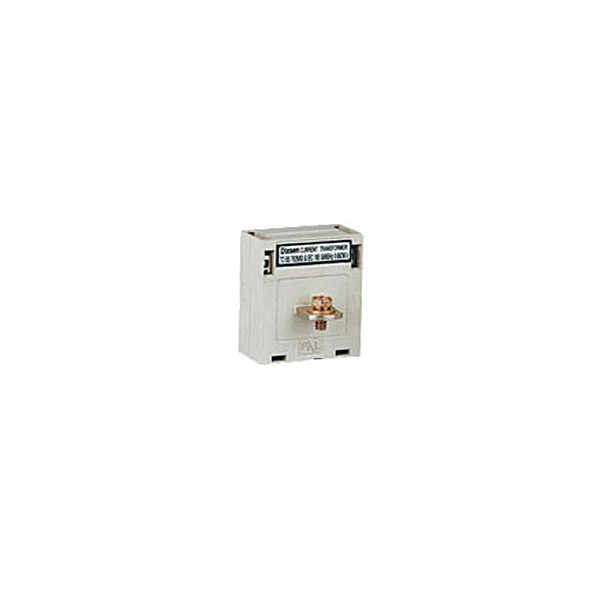

Ds Current Transformers

Name: Ds Current Transformers
Brand: all-electronics-online.com
SKU: 767075785
Availability: InStock
Rating: 5 (51 reviews)

Price:	US $ 100/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Power
Phase:	Three
Coil:	Amorphous Alloy Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Brand:	Elecal

Product Description

Technical data& Specification:

Model	Ratel current(A)Primary/Secondary	Busbar Hole Dimension	Rated Burden(VA)	Accuracy class	Rated Voltage	Rated Frequency
DSM-20B	50/5A-200/5A		1.5-3	1.0	660V	50/60Hz
DSM-20	50/5A-200/5A	20×10mm	1.5-3	1.0	660V	50/60Hz
DSM-30	50/5A-200/5A	20×10mm	1.5-3	1.0	660V	50/60Hz
DSM-30	50/5A-300/5A	30×10mm	2.5-5	1.0	660V	50/60Hz
DS-40	150/5A-800/5A	40×10mm	5-10	1.0	660V	50/60Hz
DS-60	400/5A-1000/5A	60×10mm	10	1.0	660V	50/60Hz
DS-100	800/5A-3000/5A	100×10mm	5	1.0	660V	50/60Hz

Dimension of case (mm):

Model	A	B	C	D
DS-20A	56	30	63	80
DS-20	56	30	63	50
DS-30	56	30	63	50
DS-30	79	42	87	66
DS-40	79	42	87	66
DS-60	103	42	113	66
DS-100	151	42	166	69

Noted: For measuring currenttransformers, the accuracy class is designated by the highest permissible percentage current(ratio)error at the rated current perscribed for the ac curacy class concerned.

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word
