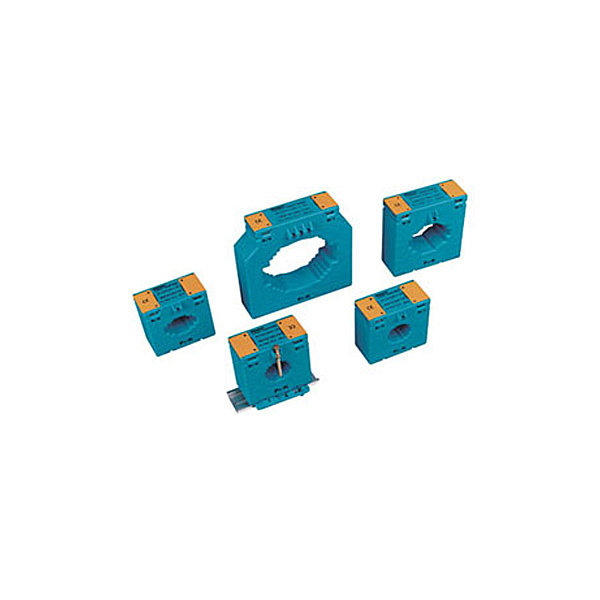

Mes Current Transformers

Name: Mes Current Transformers
Brand: all-electronics-online.com
SKU: 767076565
Availability: InStock
Rating: 4.6 (52 reviews)

Price:	US $ 100/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Power
Phase:	Three
Coil:	Amorphous Alloy Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Brand:	Elecal

Product Description

Split core current transformers MES series:

The MES series of current transformer have beautiful outline and Convenient for mounting in many ways. The most current transform need the special mounting and the MES series used the mounting of DIN typing With a lot of times. The protective cover for the terminal block used the switching device with Safety and quick.

MES guide rail type CT :
Primary current: Secondary current: Standard approval: Maximum voltage: Frequency: Rated load: Class: Short-time thermal current: Rated security coefficient:	5A-3000A 5A, 1A VDE0414, BS7626, IEC44-1 0.72/3KV 50-60Hz 2.5VA, 5VA, 10VA, 15VA 0.5, 1.0 Ith=60×Ih FS<5

Dimension of case [mm]:

Model	A	B	C	D	E	F	G
MES-62/30	81	47	30	35	71	31	62
MES-62/40	81	47	30	35	71	41	62
MES-30	88	52	30	41	77	31	80
MES-40	88	52	30	41	77	41	80
MES-60	117	57	50	184	77	61	101
MES-100	115	53	86	38	74	101	145

Technical date & Sepecification

Type	Rated current (A)	Rated power (VA)
Type	Rated current (A)	Class:0.5	Class:1
MES-62/30	30/5 40/5 50/5 60/5 75/5 100/5 150/5 200/5	- - - - - 1.5 2 2.5	1 1 1 1.5 1.5 2.5 3 5
MES-62/40	60/5 75/5 100/5 150/5 200/5 250/5 300/5	- - 1 1.5 2.5 3 5	1 1 2 2.5 5 5 7.5
MES-30	30/5 50/5 60/5 75/5 100/5 150/5 200/5	- - - - 1.5 2.5 5	1 1 1.5 1.5 2.5 5 7.5
MES-40	100/5 150/5 200/5 250/5 300/5 400/5 500/5	1.5 2.5 5 5 10 10 10	2.5 5 5 5 15 15 15
MES-60	600/5 800/5 1000/5 1200/5	15 15 15 15	20 20 20 20
MES-100	1000/5 1200/5 1500/5 1600/5 2000/5 2500/5 3000/5	15 15 15 15 15 15 15	30 30 30 30 30 30 30

Noted: For measuring currenttransformers, the accuracy class is designated by the highest permissible percentage current(ratio)error at the rated current perscribed for the ac curacy class concerned.

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word

www.elecal.com
