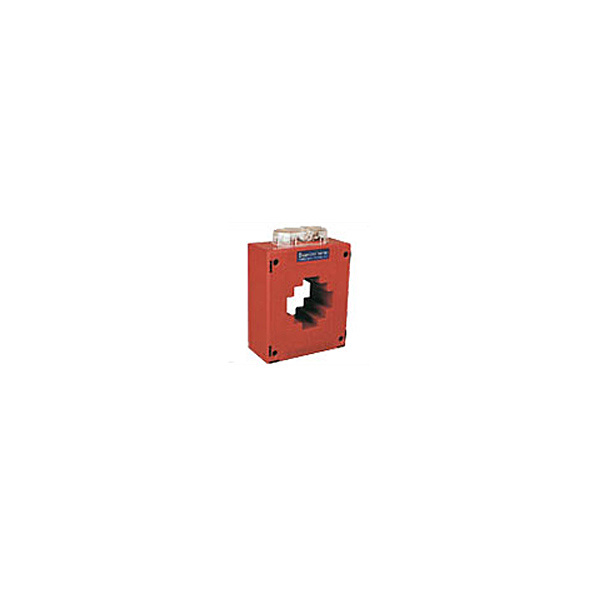

Nsq Current Transformers

Nsq Current Transformers
Price: US $ 100/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Contact Supplier
Showroom Product Company Profile
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Power
Phase: Three
Coil: Amorphous Alloy Transformer
Cooling Method: Oil-immersed Type Transformer
Winding Type: Two-winding Transformer
Brand: Elecal

Product Description

NSQ Series:
Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security coefficient:		30A-3000A
5A, 1A
BS7626, IEC44-1
0.66KV
50-60Hz
2.5VA, 15VA
0.5, 1.0, 3.0
Ith=60×Ih
FS<5


 		Technical data:
Model
Primary/
secondary
Busbar
Hole
Dimension
Rated
Burden
(VA)
class
Rated
Voltage
Rated
Frequency
NSQ-30
30/5A-300/5A
30×10mm
2.5-5
0.5/1.0
0.72
50/60Hz
NSQ-35
50/5A-400/5A
35×10mm
5
0.5/1.0
0.72
50/60Hz
NSQ-40
100/5A-600/5A
40×10mm
10
0.5/1.0
0.72
50/60Hz
NSQ-60
600/5A-1600/5A
60×10mm
15
0.5/1.0
0.72

50/60Hz
NSQ-100
800/5A-3000/5A
100×10mm
15
0.5/1.0
0.72
50/60Hz

Dimension of case (mm):
Model
A
B
C
D
E
F
NSQ-30
30
78
46
95
112
70
NSQ-35
40
70
46
84
100
70
NSQ-40
45
80
46
87
104
70
NSQ-60
60
110
53
130
148
80
NSQ-100
100
155
53
174
191
80
Noted: For measuring currenttransformers, the accuracy class is designated by the highest permissible percentage current(ratio)error at the rated current perscribed for the ac curacy class concerned.
Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word

www.elecal.com
