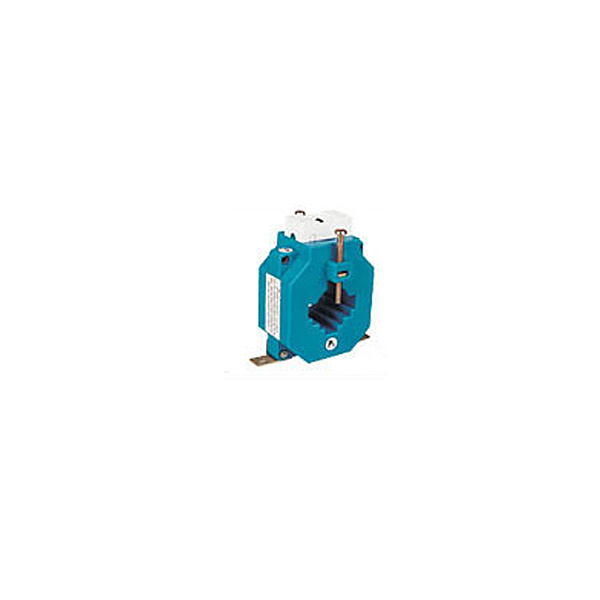

Red & EMC Current Transformers

Name: Red & EMC Current Transformers
Brand: all-electronics-online.com
SKU: 767075895
Availability: InStock
Rating: 4.9 (35 reviews)

Price:	US $ 100/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Power
Phase:	Three
Coil:	Amorphous Alloy Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Brand:	Elecal

Product Description

Rct Series:
Primary current: Secondary current: Standard approval: Maximum voltage: Frequency: Rated load: Class: Short-time thermal current: Rated security coefficient:	100/5-600/5 5A, 1A BS7626, IEC44-1 0.66kV 50/60Hz 2.5VA-15VA 0.5, 0.5s Ith=60×Ih FS<5

Technical data:

Type	A	VA	Class
RED-40	100/5	2.5	1
	150/5	2.5	1
	200/5	5	1
	250/5	5	1
	300/5	10	1
	400/5	10	1
	500/5	10	1
	600/5	10	1

Outline Drawing:

Technical data:

Type	Rated current(A)	VA	Class
EMC-30	100/5	5	0.5
	150/5	5	0.5
	200/5	5	0.5
EMC-40	200/5	5	0.5
	250/5	5	0.5
	300/5	10	0.5
	400/5	10	0.5
	500/5	15	0.5
	600/5	15	0.5

Dimension of case (mm):

Type	A	B	C	D	E	F	G	H
EMC-30	80	108	44	63	77	31	26	11
EMC-40	80	108	44	63	77	41	31	11

Noted: For measuring currenttransformers, the accuracy class is designated by the highest permissible percentage current(ratio)error at the rated current perscribed for the ac curacy class concerned.
