DC 24V Switching Power Supply, LED Driver High Frequency UPS, LED Bulb Driver

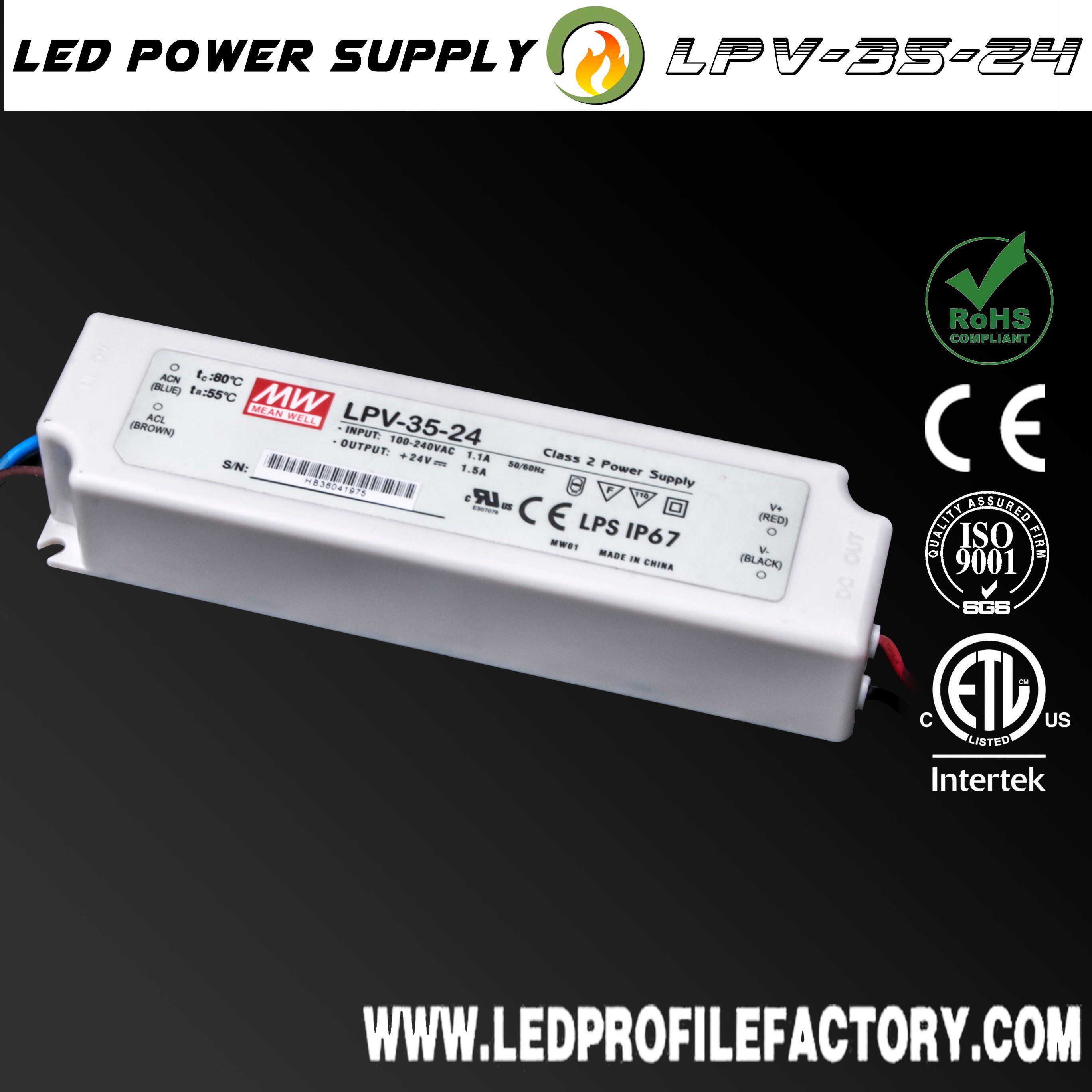

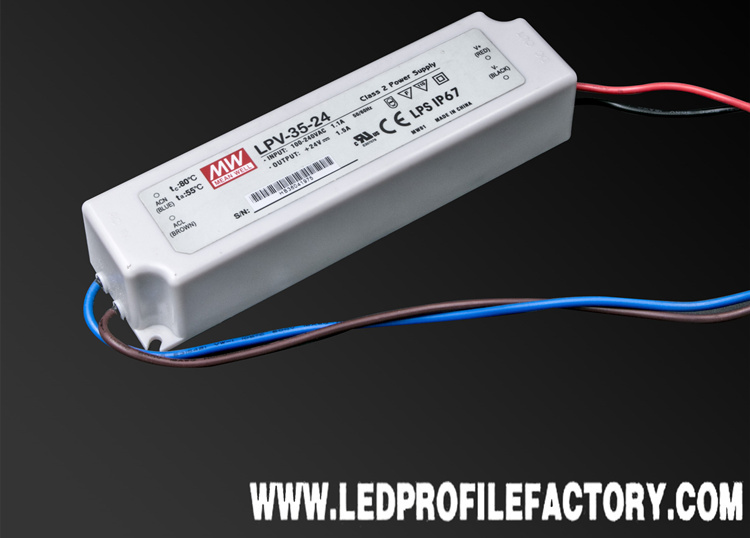

Name: DC 24V Switching Power Supply, LED Driver High Frequency UPS, LED Bulb Driver
Brand: all-electronics-online.com
SKU: 821599735
Availability: InStock
Rating: 4.4 (21 reviews)

Price:	US $ 7-19/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	APV-35-24
In Put Voltage:	90 ~ 264vact127 ~ 370VDC
Output Voltage:	5/12/15/24/36V
Power:	35W
Warranty:	2 Years
Item Name:	12V LED Drive Power Supply
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Brand:	Meanwell

Product Description

DC 24V Switching Power Supply, LED Driver High Frequency UPS, LED Bulb Driver
feature:

Withstand 300VAC Surge input for 5 seconds

Universal AC input I Full range

Cooling by free air convection

Protections: Short circuit I Over load I Over voltage

Fully isolated plastic case

100% full load burn-in test

Small and compact size

Class 2 power unit

IP 42 design

Pass LPS

Specification

MODEL		APV-35-5	APV-35-12	APV-35-15	APV-35-24	APV-35-36
	DC VOLTAGE	5V	12V	15V	24V	36V
	RATED CURRENT	5A	3A	2.4A	1.5A	1A
	CURRENT RANGE	0 ~ 5A	0 ~ 3A	0 ~ 2.4A	0 ~ 1.5A	0 ~ 1A
OUTPUT	RATED POWER	25W	36W	36W	36W	36W
	RIPPLE & NOISE (max.) Note.2	120mVp-p	150mVp-p	150mVp-p	180mVp-p	180mVp-p
	VOLTAGE TOLERANCE Note.3	±5.0%
	SETUP, RISE TIME Note.6	1500ms, 40ms / 230VAC 1500ms,40ms / 115VAC at full load
	HOLD UP TIME (Typ.)	20ms/230VAC 12ms/115VAC at full load
	VOLTAGE RANGE Note.4	90 ~ 264VAC 127 ~ 370VDC
	EFFICIENCY (Typ.)	76.5%	83%	84%	84%	85%
INPUT	AC CURRENT	0.5A/230VAC 0.75A/115VAC
	INRUSH CURRENT(Typ.)	COLD START 45A(twidth=440μs measured at 50% Ipeak) at 230VAC
	MAX. No. of PSUs on 16A CIRCUIT BREAKER	6 units (circuit breaker of type B) / 10 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT	0.25mA / 240VAC

FAQ

Q:How will I know whether to use a Constant Voltage or Constant Current driver with my LED's?
A:Usually the manufacturer of the LED load will specify whether the LED module is for use with either a Constant Voltage or Constant Current driver.

Q:What is input voltage range of LED Driver?
A:85-264VAC,120-373VDC

Q:What is output DC voltage of LED Driver?
A:3.3/5/12/15/24/36/48V

Q:What is the working temperature?
A:-30~+70ºC

Q:What is the warranty for an LED Driver?
A:Our LED drivers have a 5 year limited warranty

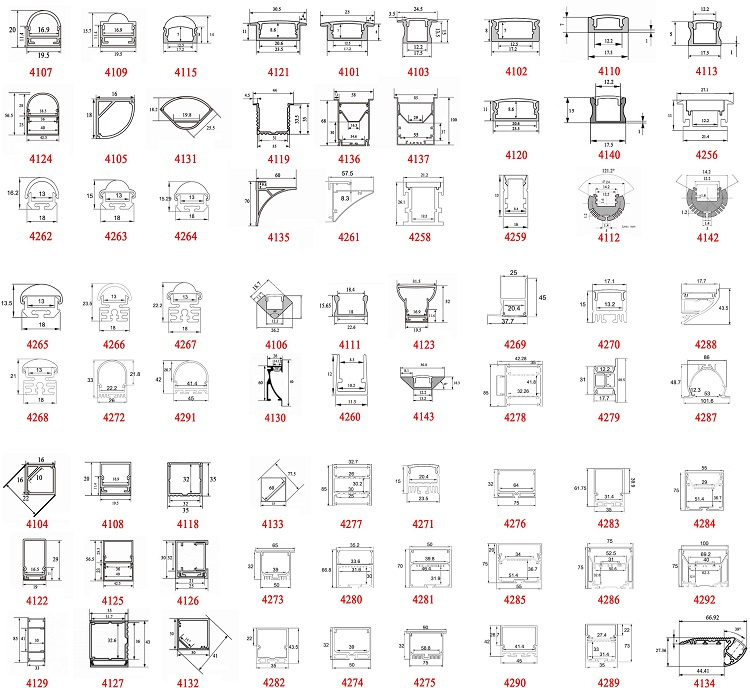

Other type of profile

Company profile

Package and delivery time

Certificate

Shenzhen Gocus technology Co., Ltd., located in longgang district, 1st Building Hongchangfa Dustric Park, Longgang District, Shenzhen, Guangdong province.

Founded in March 2009, with 2009 square meters super clean, antistatic workshop and a number of international advanced complete set solid crystal, wire, sealing glue, spectral color separation, Japan imported highspeed SMT placement machine, reflow soldering, fully automatic equipment such as ultrasound; Focusing on IC design and LED light-emitting diode encapsulation; Production LED drive power supply module; LED commercial lighting, home lighting, outdoor lighting lamps and anterns of production; We are committed to high-end LED light source encapsulation and intelligent lighting MCU application, basically achieved the LED constant current power supply design, product appearance and heat dissipation structure design, light packaging, SMT, diecasting injection molding, assembling and product integration in production of lamps and lanterns, etc., s China's leading high thermal conductive ceramics and plastics professional manufacturer of LED lighting products, using the most advanced technology, through independent research and developmentsystem, always adhere to the continuous product upgrades and innovation movement, provides the high quality for the Volkswagen group, high cost performance, low carbon environmental protection and energy saving LED lighting products.
