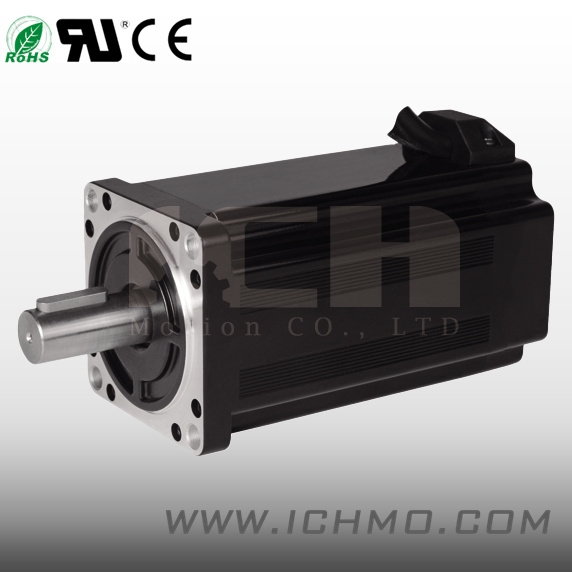

DC Brushless Motor with High Speed D605

Name: DC Brushless Motor with High Speed D605
Brand: all-electronics-online.com
SKU: 765127895
Availability: InStock
Rating: 4.3 (52 reviews)

Price:	US $ 15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	D605 SERIES
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	60mm
Rated Power:	78-235W
Rated Voltage:	36-48VDC
Current:	3-6.6A
Rated Speed:	3000rpm
Rated Torque:	50-250ncm
Peak Torque:	87.5-263ncm
Length:	78-120mm
Application:	Power Tools
Operating Speed:	Adjust Speed
Structure And Working Principle:	Brushless
Excitation Mode:	Brushless

Product Description

I. CH MOTOR - Brushless DC Motor D605(60MM)

Specifications:
-Rated Power: 78-235W
-Rated Voltage: 36-48VDC
-Current: 3-6.6A
-Poles No.: 8
-Rated Speed: 3000RPM
-Rated Torque: 50-250N. Cm
-Peak Torque: 87.5-263N. Cm
-Length: 78-120mm
-Weight: 0.9-1.6Kg

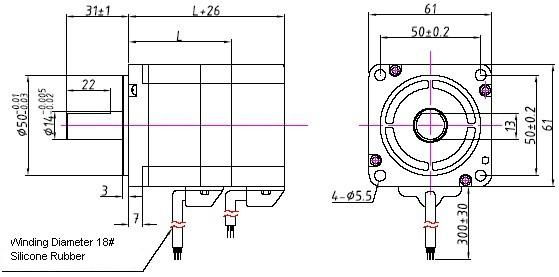

Drawing:

Specification
Model	Rated power	Rated voltage	Current	Number of poles	Rated speed	Rated torque	Peak torque	Moment constant	Length	Weight
Model	W	VDC	A		rpm	N.cm	N.cm	N.cm/A	mm	Kg
D605-25030	78	36	3	8	3000	250	87.5	8.7	78	0.9
D605-05058	156	36	5.8			50	175	8.7	99	1.25
D605-07566	235	48	6.6			75	263	11.5	120	1.6
*Note: We can customize the special speed, Voltage, Assembled size High speed at 4 poles (Conventional). Low speed at 8 poles

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
