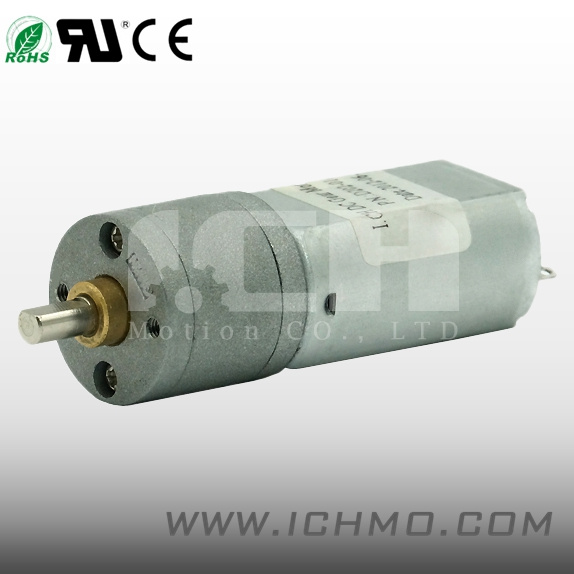

DC Gear Motor (20MM) - Central Axis (D202A2)

Name: DC Gear Motor (20MM) - Central Axis (D202A2)
Brand: all-electronics-online.com
SKU: 647542535
Availability: InStock
Rating: 4.6 (70 reviews)

Price:	US $ 4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	D202A2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	20mm
Voltage:	6.0-24V
Speed:	7-190kg.Cm
Current:	90-450mA
Output:	250-1200MW
Application:	Car
Operating Speed:	Adjust Speed
Structure And Working Principle:	DC Gear Motor

Product Description

I. CH MOTOR - DC Gear Motor D202A2(20MM) - Central Axis

Specifications:
-Voltage: 6.0-24V
-Speed: 7.0-190RPM
-Torque: 0.5-6.5Kg. Cm
-Current: 90-450mA
-Output: 250-1200mW

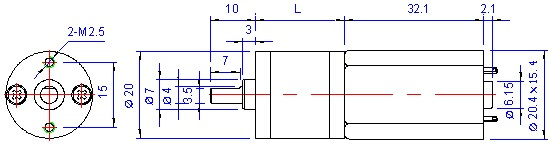

Drawing:

Number of stages	3	4	5	6	7
Gear ratio i	10	25	50	100	250
	12.5	31.25	62.5	125	312.5
			78.1	156.25	390.6
				195.3	488.3
Length of gearbox L (mm)	16.0		17.5	19.0	20.5

Specification
MODEL	VOLTAGE V	NO LOAD		AT MAXIMUM EFFICIENCY				STALL
MODEL	VOLTAGE V	SPEED rpm	CURRENT mA	SPEED rpm	TORQUE kg.cm	CURRENT mA	OUTPUT mW	TORQUE Kg.cm	CURRENT mA
D202-005010	6.0	240	80	190	0.5	450	1000	2.0	2000
D202-018025	12.0	80	90	65	1.8	400	1200	4.5	1800
D202-039062	6.0	25	120	20	3.9	450	800	6.0	2000
D202-035156	12.0	9	40	7	3.5	90	250	8.0	500
D202-065195	24.0	19	50	15	6.5	180	1000	8.0	800

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
