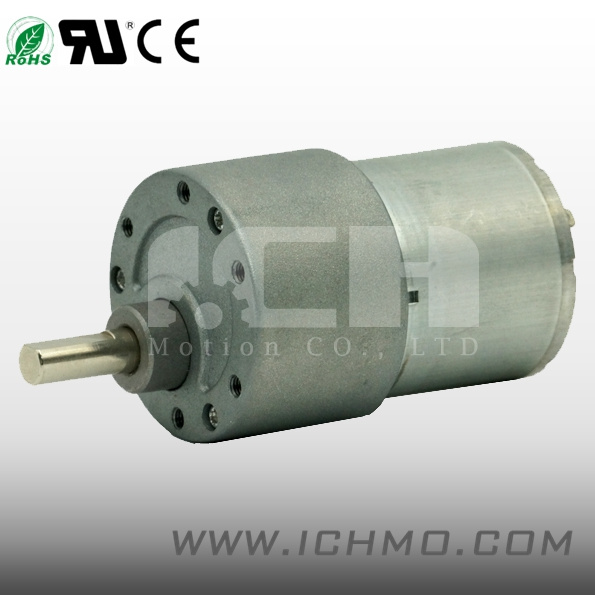

DC Gear Motor (37MM) - Deviating Axis (D372B2)

Name: DC Gear Motor (37MM) - Deviating Axis (D372B2)
Brand: all-electronics-online.com
SKU: 647542675
Availability: InStock
Rating: 5 (131 reviews)

Price:	US $ 4/Piece
Trade Terms:	FOB,CIF,others
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	D372B2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	37mm
Voltage:	12-24V
Speed:	10-660rpm
Torque:	0.5-9.0kg.Cm
Current:	80-400mA
Output:	500-3500MW

Product Description

I. CH MOTOR - DC Gear Motor D372B2(37MM) - Deviating Axis

Specifications:
-Voltage: 12-24V
-Speed: 10-660RPM
-Torque: 0.5-9.0Kg. Cm
-Current: 80-400mA
-Output: 500-3500mW

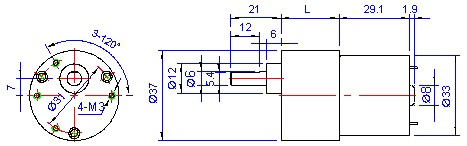

Drawing:

Number of stages	2	3	4	5	6	7
Gear ratio i	10	20	50	150	300	750
		30	60	180	350	900
			70	210	450	1050
			90	270	630	1350
Length of gearbox L (mm)	19.0	21.5	24.0	26.5	29.0	31.5

Specification
MODEL	VOLTAGE V	NO LOAD		AT MAXIMUM EFFICIENCY				STALL
MODEL	VOLTAGE V	SPEED rpm	CURRENT mA	SPEED rpm	TORQUE Kg.cm	CURRENT mA	OUTPUT mW	TORQUE Kg.cm	CURRENT mA
D372-005010	24.0	780	50	660	0.5	250	3500	3.0	600
D372-080270	24.0	20	50	18	8.0	150	1500	60.0	800
D372-050270	24.0	11	40	10	5.0	80	500	40.0	500
D372-090150	24.0	32	50	25	9.0	190	2300	28.0	700
D372-010030	24.0	165	50	145	1.0	110	1500	9.0	700
D372-020030	12.0	195	80	150	2.0	400	3100	8.0	1500
D372-040090	12.0	65	70	52	4.0	400	3100	22.0	1500
D372-090150	12.0	40	70	30	9.0	400	2700	25.0	1500
D372-030070	12.0	100	90	82	3.0	400	2500	18.0	1900

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
