DC Gear Motor D162A1 (16mm) with High Torque

Name: DC Gear Motor D162A1 (16mm) with High Torque
Brand: all-electronics-online.com
SKU: 768738715
Availability: InStock
Rating: 4.7 (125 reviews)

Price:	US $ 3.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	D162
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	16mm
Voltage:	3.0-6.0
Speed:	25-200rpm
Torque:	0.12-0.7kg.Cm
Current:	170-250mA
Output:	160-250MW
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	DC Motor
Structure And Working Principle:	DC Motor

Product Description

I. CH MOTOR - DC Gear Motor D162A1(16MM) - Central Axis

Specifications:
-Voltage: 3.0-6.0V
-Speed: 25-200RPM
-Torque: 0.12-0.7Kg. Cm
-Current: 170-250mA
-Output: 160-250mW

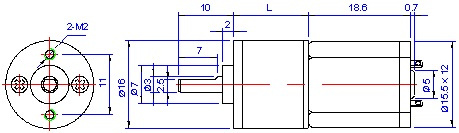

Drawing:

Number of stages	3	4	5	6
Gear ratio i	11.1	22.2	83.3	200	600
	16.7	33.3	100	250	750
		50	150	300	900
				450	1350
Length of gearbox L (mm)	12.8		14.2	15.6	17.9

Specification
MODEL	VOLTAGE V	NO LOAD		AT MAXIMUM EFFICIENCY				STALL
MODEL	VOLTAGE V	SPEED rpm	CURRENT mA	SPEED rpm	TORQUE kg.cm	CURRENT mA	OUTPUT mW	TORQUE Kg.cm	CURRENT mA
D162-003100	3.0	70	60	52	0.3	170	160	0.8	450
D162-001050	6.0	250	80	200	0.12	250	250	1.0	700
D162-006200	6.0	60	80	45	0.55	250	250	3.0	700
D162-007300	6.0	35	60	25	0.7	180	180	4.0	500

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
