DC Gear Motor D372b3 (37mm) with High Quality

Name: DC Gear Motor D372b3 (37mm) with High Quality
Brand: all-electronics-online.com
SKU: 770402415
Availability: InStock
Rating: 4.4 (66 reviews)

Price:	US $ 3.5/Piece
Trade Terms:	FOB,CIF,others
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	D372
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	37mm
Voltage:	12-24V
Speed:	7-130rpm
Torque:	3.5-2kg.Cm
Current:	150-780mA
Output:	700-6000MW
Application:	Power Tools
Operating Speed:	Low Speed
Excitation Mode:	DC Gear Motor
Structure And Working Principle:	DC Gear Motor

Product Description

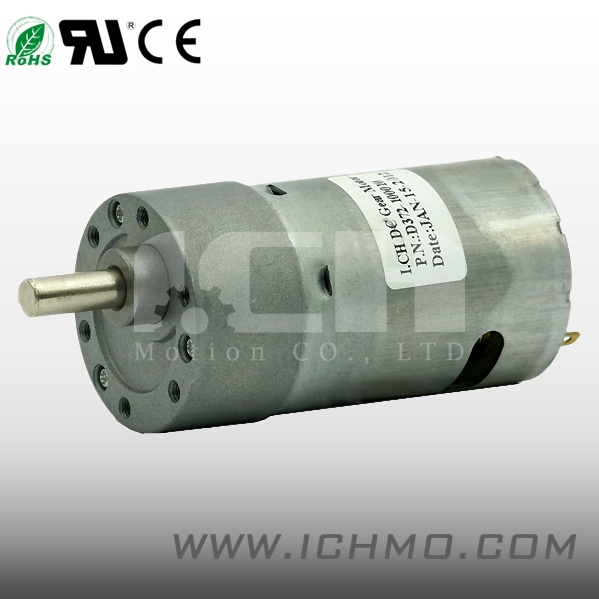

I. CH MOTOR - DC Gear Motor D372B3(37MM) - Deviating Axis

1. Typical Applications:
Paper feeder
Accessory of automobile
Ad equipment
Mini mechanism

2. Specifications:
-Voltage: 12-24V
-Speed: 7-130RPM
-Torque: 3.5-2Kg. Cm
-Current: 150-780mA
-Output: 700-6000mW

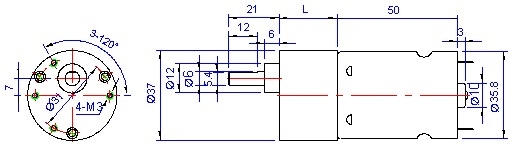

Drawing:

Number of stages	2	3	4	5	6	7
Gear ratio i	10	20	50	150	300	750
		30	60	180	350	900
			70	210	450	1050
			90	270	630	1350
Length of gearbox L (mm)	19.0	21.5	24.0	26.5	29.0	31.5

Specification
MODEL	VOLTAGE V	NO LOAD		AT MAXIMUM EFFICIENCY				STALL
MODEL	VOLTAGE V	SPEED rpm	CURRENT A	SPEED rpm	TORQUE Kg.cm	CURRENT mA	OUTPUT mW	TORQUE Kg.cm	CURRENT mA
D372-200210	12.0	17	0.13	13.5	20.0	450	2400	70.0	4000
D372-050050	24.0	140	0.15	130	5.0	520	6000	16.0	4000
D372-045030	24.0	110	0.10	85	4.5	150	4200	16.0	1200
D372-100450	24.0	7.5	0.10	7.0	10.0	150	700	70.0	1200
D372-050070	12.0	70	0.20	57	5.0	500	3000	50.0	4200
D372-035030	24.0	165	0.12	115	3.5	780	4100	25.0	3100

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
