I. CH Motion Co., Ltd. >> DC Gear Motor D422 (42MM) - Rectangle Shape

DC Gear Motor D422 (42MM) - Rectangle Shape

DC Gear Motor D422 (42MM) - Rectangle Shape
Price: US $ 4/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: D422
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 42mm
Voltage: 6--24V
Speed: 14--17rpm
Torque: 4--5kg.Cm
Current: 200--700mA
Output: 600--900MW

Product Description

I. CH MOTOR - DC Gear Motor D422(42MM) - Rectangle Shape

Specifications:
-Voltage: 6.0-24V
-Speed: 14-17RPM
-Torque: 4.0-5.0Kg. Cm
-Current: 200-700mA
-Output: 600-900mW

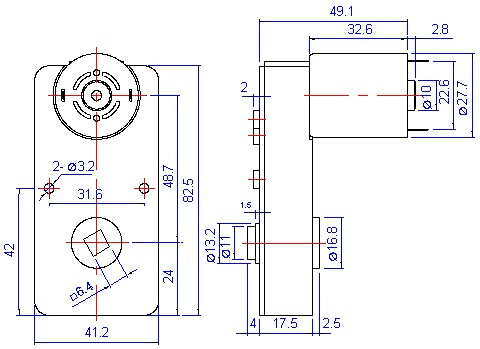

Drawing:
Gear ratio i and length L of gearbox
Gear ratio i1:252



                                                                                          Specification
  MODEL  VOLTAGE
V
NO LOADAT MAXIMUM EFFICIENCYSTALL
SPEED
rpm
CURRENT
mA
SPEED
rpm
TORQUE
Kg.cm
CURRENT
mA
OUTPUT
mW
TORQUE
Kg.cm
CURRENT mA
D422-0502526.023200175.070090022.02500
D422-04025212.019100144.030060019.0700
D422-04225224.01980144.220060016.0400
I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
