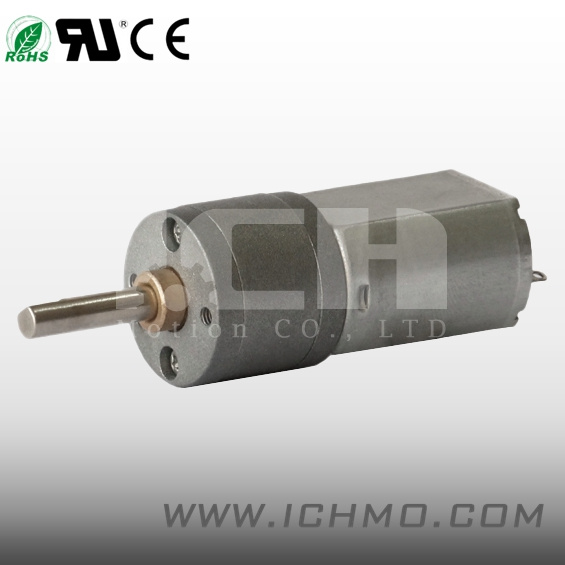

DC Gear Motor with High Ratio D202

Name: DC Gear Motor with High Ratio D202
Brand: all-electronics-online.com
SKU: 765125525
Availability: InStock
Rating: 4.3 (68 reviews)

Price:	US $ 4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	D202 SERIES
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	20mm
Voltage:	4.8-12V
Speed:	12-1000rpm
Torque:	0.15-4kg.Cm
Current:	200-670mA
Output:	370-1500MW
Application:	Power Tools
Operating Speed:	Low Speed
Excitation Mode:	DC Gear Motor
Structure And Working Principle:	DC Gear Motor

Product Description

I. CH MOTOR - DC Gear Motor D202A1(20MM) - Central Axis

Specifications:
-Voltage: 4.8-12V
-Speed: 12-1000RPM
-Torque: 0.15-4Kg. Cm
-Current: 200-670mA
-Output: 370-1500mW

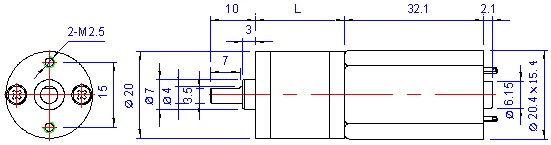

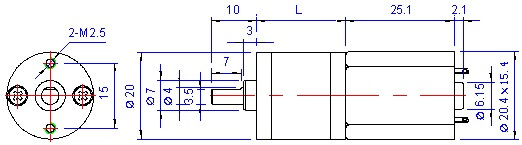

Drawing:

Number of stages	3	4	5	6	7
Gear ratio i	10	25	50	100	250
	12.5	31.25	62.5	125	312.5
			78.1	156.25	390.6
				195.3	488.3
Length of gearbox L (mm)	16.0		17.5	19.0	20.5

Specification
MODEL	VOLTAGE V	NO LOAD		AT MAXIMUM EFFICIENCY				STALL
MODEL	VOLTAGE V	SPEED rpm	CURRENT mA	SPEED rpm	TORQUE kg.cm	CURRENT mA	OUTPUT mW	TORQUE Kg.cm	CURRENT mA
D202-002010	12.0	1300	100	1000	0.15	350	1500	0.8	1500
D202-004025	6.0	270	140	200	0.35	450	750	1.5	1300
D202-004062	12.0	140	60	100	0.4	200	410	2.5	500
D202-010156	6.0	65	90	50	1.0	400	500	4.5	1300
D202-012195	6.0	36	60	28	1.2	200	370	6.0	800
D202-040312	4.8	24	150	16	4.0	670	650	8.0	1800
D202-030488	6.0	15	80	12	3.0	290	370	8.0	900

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
