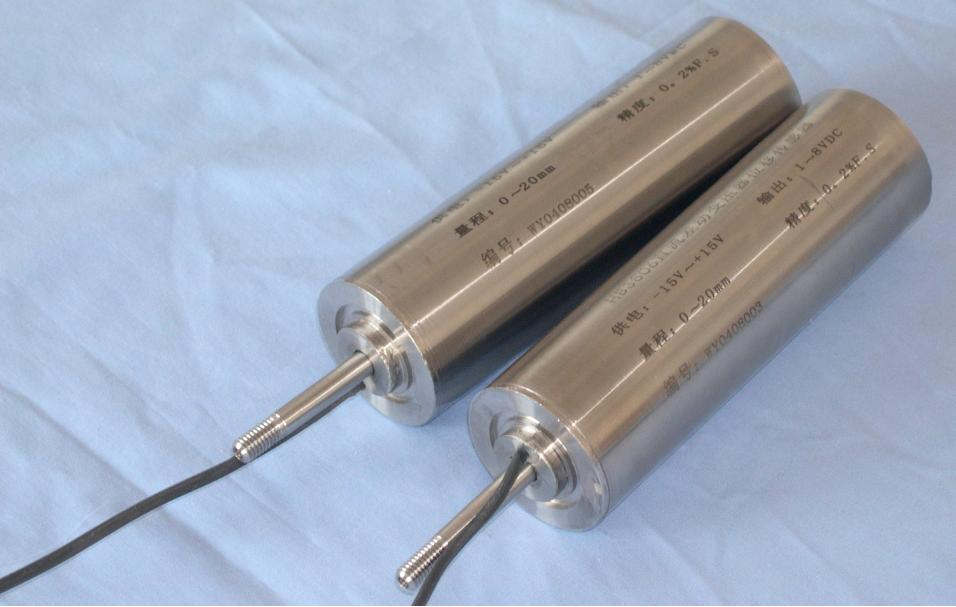

DC Lvdt Displacement Transmitter (LVDT)

Name: DC Lvdt Displacement Transmitter (LVDT)
Brand: all-electronics-online.com
SKU: 678180802
Availability: InStock
Rating: 4.9 (60 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HB3806
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

LVDT displacement transmitter has high standard of environmental adaptability, long working life and high sensitivity & resolution. Power supply between ± 12V - ± 18V, standard output signal applicable to working with four and a half digital meter. The transmitters are easy to carry and suitable to working in the environment without AC power. DC-LVDT has strong anti-interference ability, could work under the harsh environment such as wet, large current or strong magnetic field.

Measure range: 10 - 600mm(± 5 - ± 300mm)
Accuracy: 0.1%F. S, 0.2%F. S, 0.5%F. S
Power supply: 24VDC\± 12VDC - ± 18VDC
Output signal: 4 - 20mADC, 1 - 5VDC
Connecting thread: M6
Dimension: Φ 21mm & Φ 38mm.

HB3806	HB3806 Series Displacement Transmitter(LVDT)
	Code	Measure Range
	Code	Measure Range			Dimension	Weight
	5	± 5(0 - 10)			190× φ 21	220
	10A	± 10(0 - 20)			220× φ 21	240
	10B	± 10(0 - 20)			123× φ 38	500
	15	± 15(0 - 30)			240× φ 21	260
	20	± 20(0 - 40)			245× φ 21	270
	25	± 25(0 - 50)			250× φ 21	280
	30	± 30(0 - 60)			255× φ 21	285
	35	± 35(0 - 70)			255× φ 21	290
	50	± 50(0 - 100)			350× φ 21	420
	75	± 75(0 - 150)			370× φ 21	423
	100	± 100(0 - 200)			445× φ 21	450
	125	± 125(0 - 250)			465× φ 21	454
	150	± 150(0 - 300)			581× φ 21	611
	200	± 200(0 - 400)			581× φ 21	611
	250	± 250(0 - 500)			830× φ 21	840
	300	± 300(0 - 600)			840× φ 21	845
		Code	Output
		I	4 - 20mADC
		V	1 - 5VDC
			Code	Rebound
			N	non-rebound model
			H	rebound model

Shenyang Academy of Instrumentation Science Co., Ltd. Was derectly belonging to Ministry of Machinery Industry as a large comprehensive scientific research academyt, now is subject to China National Machinery Industry Corporation (SINOMACH). Name listed in national comprehensive technology ability 100 research academies & institutes, AAA class credit enterprise in Liaoning province. One of the national high-tech enterprises, focus on sensor and instrument' S research, develop and manufacture.

After 40 years' Development, we have accomplished 626 scientific research items and 159 awards in state, province, ministry and city, of which there are 20 National Invention Awards and Science and Technology Progress Awards, 56 various awards in province and ministry and 80 patents and know-hows.

The main products are including:

- Pressure sensor die/wafer

- Pressure sensor & transmitter

- Dew-point transmitter

- Wafer dicing machine

- Metal bellows(Hydroformed & Electroformed)

- Optical filter & optical reflector

- Current sensor & gauss meter

We are the only manufacturer for silicon piezoresistive pressure wafer/die, and the only national research center in China.

We are the only manufacturer for electroformed metal bellows in China.

We are the largest manufacture for optical filter in China

We has passed the GB/T19001-2000. Elastic components and transducers has passed GJB9001A-2001.

We gain class AAA in both enterprise credit and banking credit.

SAIS has established a nationwide marketing network, and the products are widely employed in such military and civil industries as spaceflight, aviation, navigation, petrochemistry, Metallurgy, Heat Supply, Thermoelectricity, Hydroelectricity, Coal, Light Industry, Architecture and Pharmacy. Some of the products are exported to overseas market.

We would like to creat HB name brand, collect time elite, introduce others' Merits. It is our responsibilities to constantly increase more advanced techniques to HB products. We also strictly abide by the marketing ideology of faithfulness, carry through quality policy, innovating in products by science and technology, guarantee quality by strict administration, reduce cost by elaborated accounting, reassure clients by gualified services. We seriously complete the sales management mode of Whole Course Credit Administration, repay our clients with profound enterprise cultures, outstanding management, strong core competition abilities and qualified credit.
