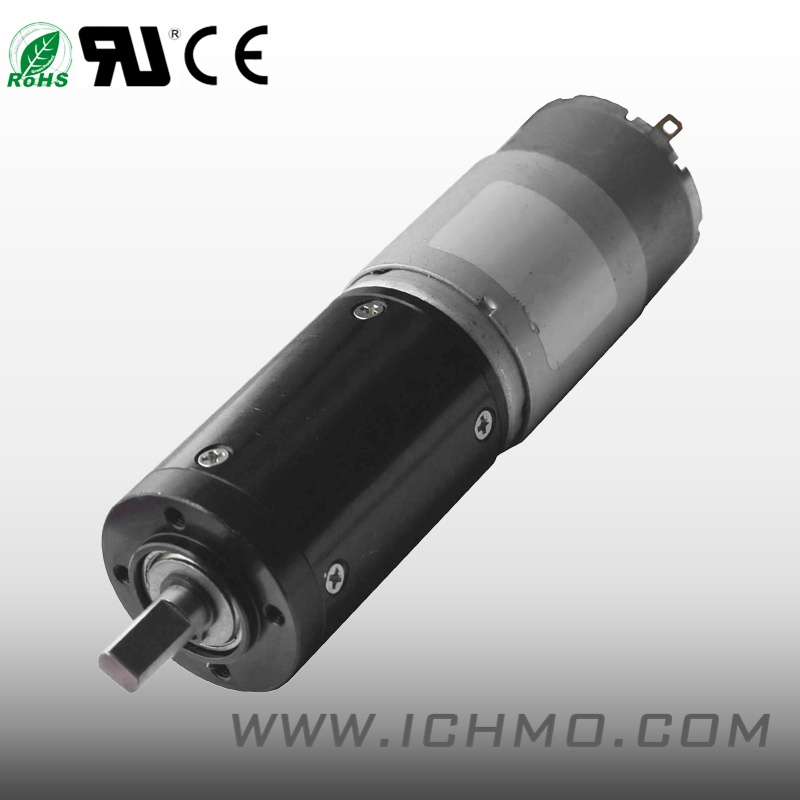

DC Planetary Gear Motor D283-3A with Low Noise

Name: DC Planetary Gear Motor D283-3A with Low Noise
Brand: all-electronics-online.com
SKU: 768769535
Availability: InStock
Rating: 4.3 (52 reviews)

Price:	US $ 8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	D283
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	28mm
Rated Torque:	0.36--30kgcm
Rated Speed:	6.5--1830

Product Description

I. CH motion supply China DC Planetary Gear Motor

I. CH planetary gearbox make use of high precision cutting gears that the most important parts of the planetary gearbox, Our micro DC Planetary Gear Motor are characterized by high precision, high reduction gear ratio, low noise, long service life, large bearing capacity and excellent interruption resistance and quality can replace imports with high-end models in Europe, America, Japan product.

DC Planetary Gear Motor widely applied in office automation, intelligence furniture, production automation, medical equipment, financial machinery and game machine sector, such as automatic window opener, glass curtain wall, auto curtain, bank ATM, automatic cash register, note vending machine, stage lime light and other automatic devices.

Type	Ratio		1: 3.7	1: 5	1: 16	1: 19	1: 27	1: 51	1: 79	1: 100	1: 139	1: 190	1: 253	1: 305	1: 352	1: 408	1: 516	1: 596	1: 721	1: 1012
D283	Rated torque	kg. cm	0.36	0.49	1.4	1.6	2.3	4	6	7.5	11	13	18	21	25	29	30	30	30	30
D283	Rated speed	rpm	1830	1360	425	357	251	133	86	68	48	35	26	22	19	16	13	11.5	10	6.5
Gearbox	Instantaneous torque	Kg. cm	10		20			30				40
	Allowable torque	Kg. cm	5		10			20				30
	Length	mm	28		35			42				49
	Backlash	O	0.7		0.8			1				1
	Weight	g	120		150			180				210

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
