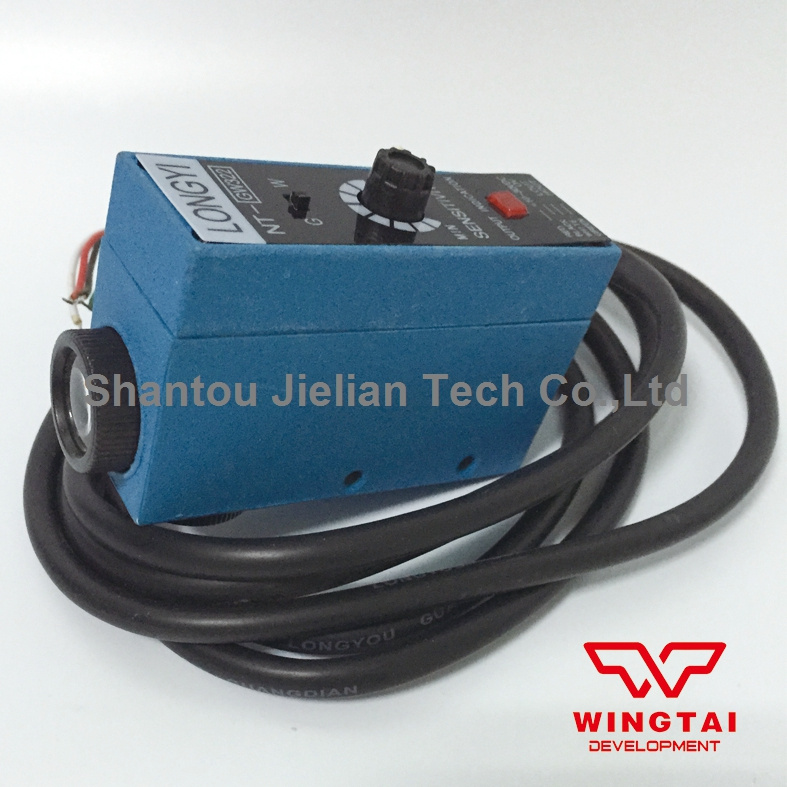

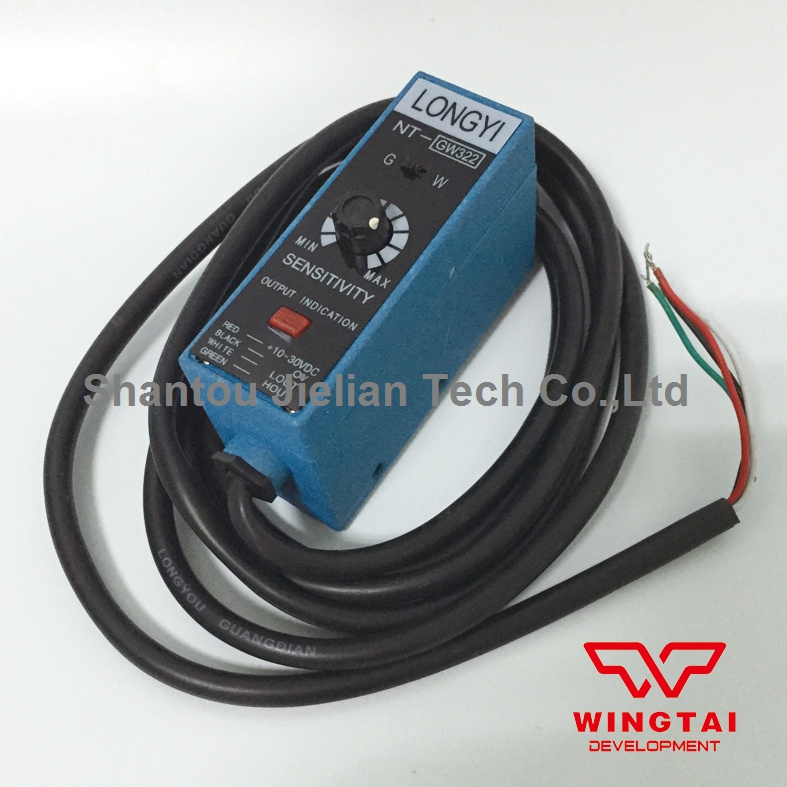

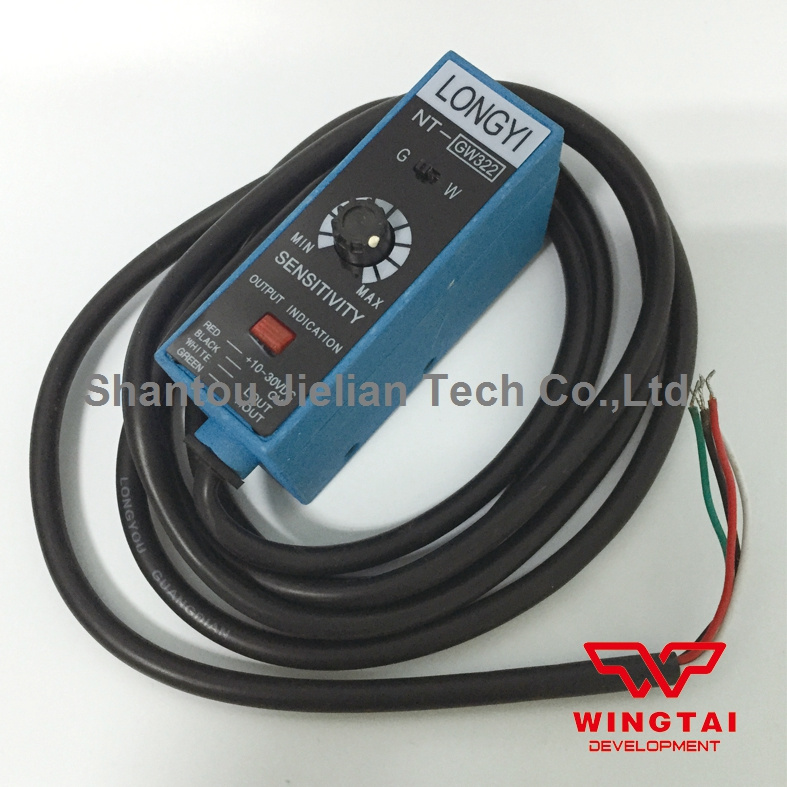

DC10-30V Ketai Nt-Gw322 Photoelectric Sensor
| Price: |
US $ 48-53/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
NT-GW322 |
| Checking Mode: |
Co-Axial |
| Checking Distance: |
12mm±2mm |
| Output Indication: |
Red LED |
| Shell Material: |
Metal |
| Power Supply Voltage: |
DC10-30V |
Product Description
DC10-30V Ketai NT-GW322 Photoelectric SensorBrand Name: LONGYI
Origin: China
Model: NT-GW322
Light color : Green light, White light
Light spot shape: Round shape
NT series color mark sensor is widely used in all kinds of packaging, bag making, printing and other mechanical equipment. This product is double color light source changeable (red, green, blue, white---are alternative). Llight spot shape has two option: round or rectangle. It is 0.1~1 ms high response speed, mainly used for all kinds of packaging, food machine, bag making machine and printing machine color code tracking.
Technical Parameter
Detection mode | Coaxial reflex |
Detection distance | 12mm±3mm |
Power supply voltage | DC10-30V±10% corrugated≤10% |
Current consumption | Under 45 ma |
Light source | Red, green, blue, white optional |
Light point | Round or rectangle (optional) |
Detection angle | The light and analyte value allowable deviation ±15 |
Response time | 0.1-1ms |
Output mode | Both light and dark move |
Output instruction | Red LED |
Output voltage | High level Vs-(≤1.5) Low level≤1.2V |
Load Current | 100mA |
Analog output | 0-10mA |
Circuit protection device | VS voltage has reverse polarity protection, output has short-circuit protection.At the same time with arbitrary wrong line protection. |
Sensitivity | Adjustable |
Resistance to the ambient light | Incandescent light bulb 3000Lx Sunlight 10000Lx |
Protection class | IP67 (moistureproof and dustproof) |
Outside material | Metal |
Outgoing line | Four-core shield cable: diameter 0.6 / length: 2m |
