| Prod Model: |
Z3J-DS50E3 |
| Checking Mode: |
Co-Axial |
| Checking Distance: |
10mm +/- 2mm |
| Output Indication: |
Red LED |
| Shell Material: |
Metal |
| IP Rating: |
IP64 |
Product Description

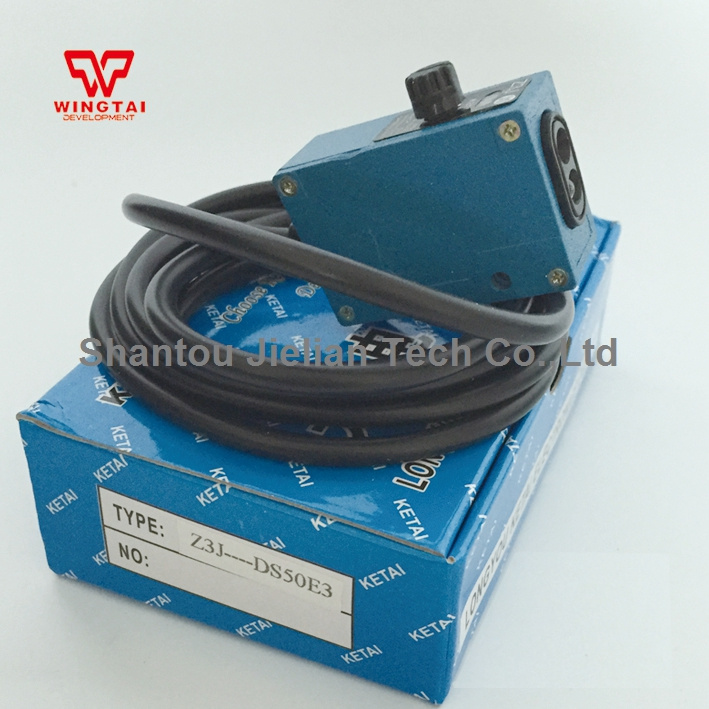

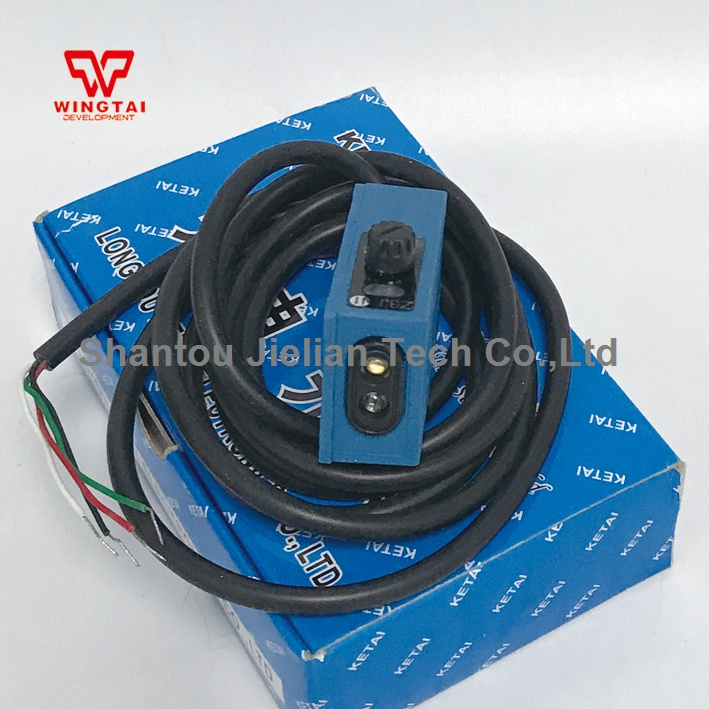

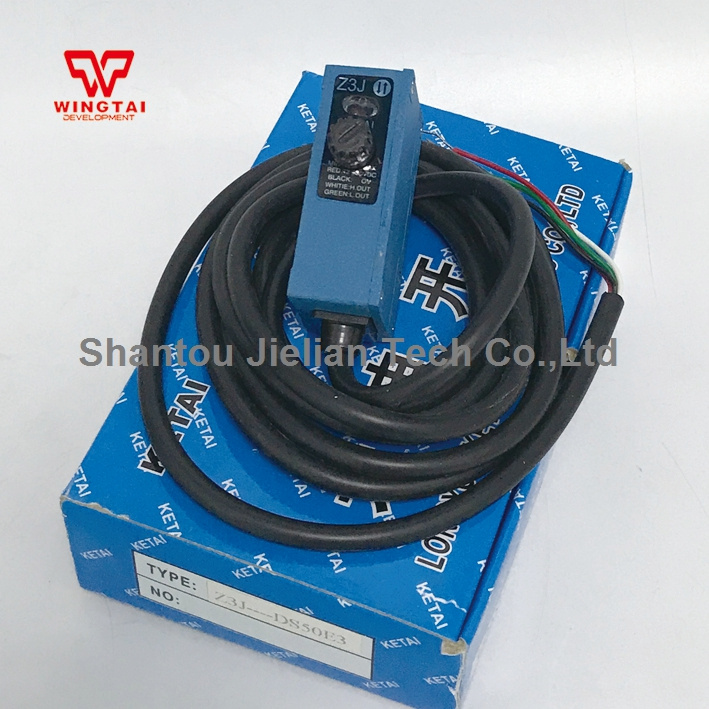

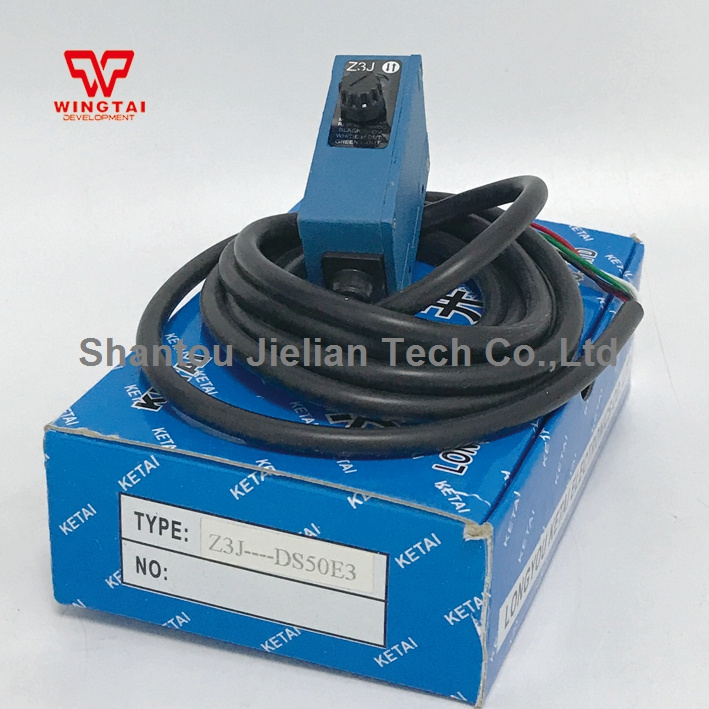

Ketai Z3J-DS50E3 Photocell Eye For Bag Macking Machine
Place of Origin: China
Model Number: Z3J-DS50E3
Z3J-Infrared series
Containing a small amplifier that can absorb 100mA bright or dark current, output control convenience
Metal interference ability
Operation Steps:
Infrared photoelectric switches, photoelectric switch is on the object to be detected, adjust the sensitivity knob to adjust the detection distance photoelectric switches, sensing distance can be increased to the detection distance of the model from 0mm
Connecting Method
Red---Positive
Black---Negative
Green---Output (Bright moving)
White---Output (Dark moving )
Main Technical Data:
Power Supply | DC12-24V 1±0% Ripple <10% |
Current Consumption | Under 45mA |
Standard Sensing Object | 5~5cm white paper |
On Load Current | 100mA |
Output Pressure Rise | 1V (max) |
Response Time | 2ms |
Sensitivity | Adjustable Lap |
Output Method | Both bright or dark moving |
Output Indicate | Red LED |
Level of Protection | IP64 |
Light Source Spectrum | Infrared Ray |
Material | Metal |
Outgoing Line | Diameter 5.4 PVC Shield Cable |
Environment Temperature | Working -15ºC~55ºC |
Attentions:
1. Be sure to check before energizing the power supply fits DC12-24V ± 10%, t does not exceed 30V, otherwise it may damage the photoelectric switch
2. Adjust the sensitivity, use a small screwdriver and should not be excessive force, otherwise it may damage the potent knob affect photoelectric switch
3. The installation should prevent direct glare into the optical lens or take appropriate measures blackout.
4. The working environment temperature, humidity, vibration, shock and other corrosive gases, are likely to affect the work of the photoelectric switch
5. Usually pay attention to protect the optical lens clean, try to avoid facing up when you install the lens erected to reduce dust.
Model Number
Type | Light Source |
Z3J-DS15E3 | Infrared |
Z3J-DS30E3 | Infrared |
Z3J-DS50E3 | Infrared |
