| Prod Model: |
KS-WG22 |
| Checking Mode: |
Co-Axial |
| Checking Distance: |
12mm±2mm |
| Output Indication: |
Red LED |
| Shell Material: |
Metal |
Product Description

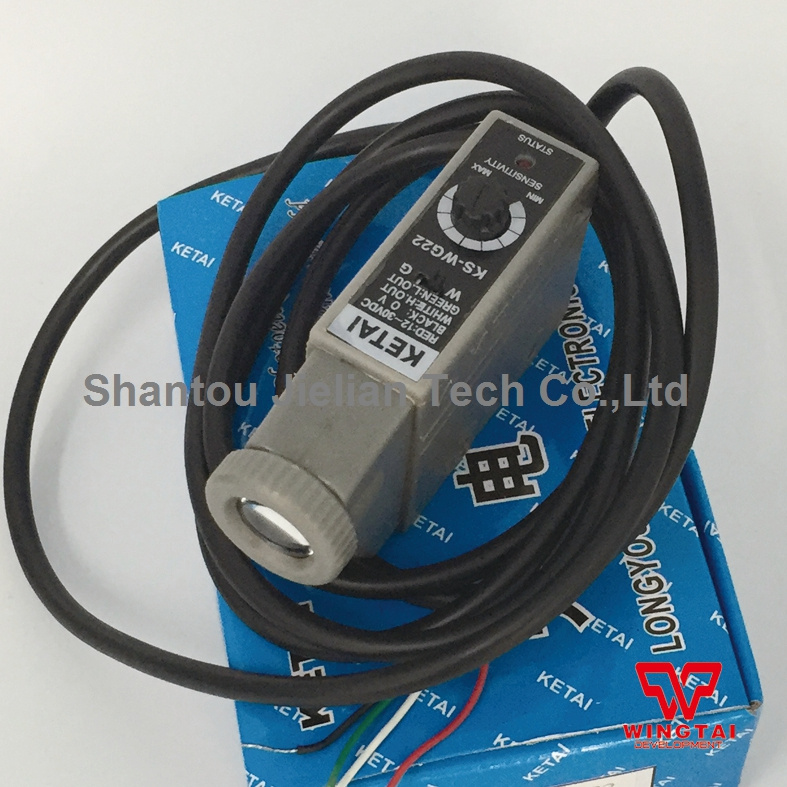

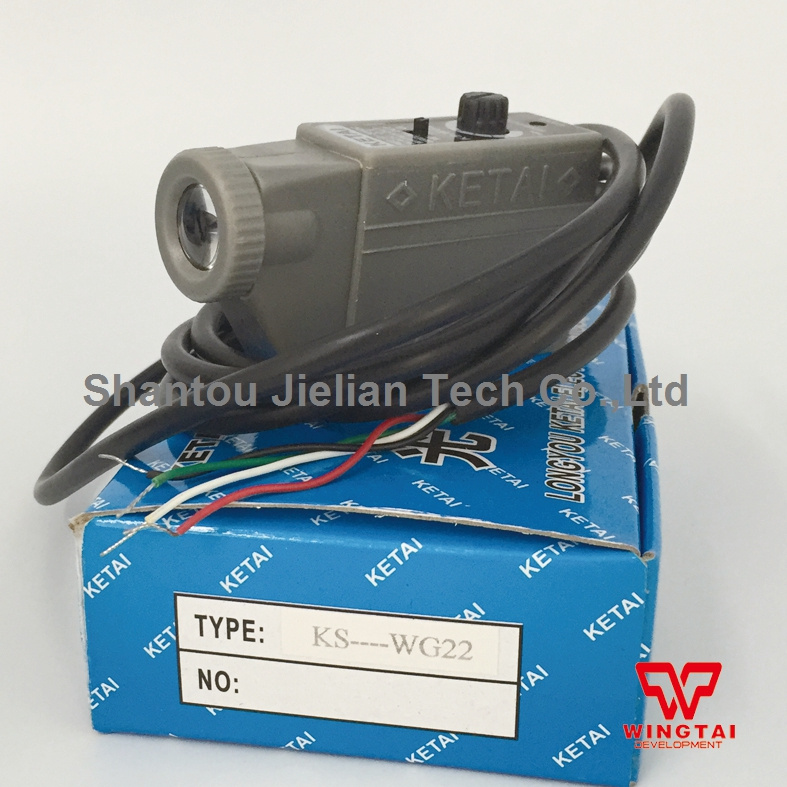

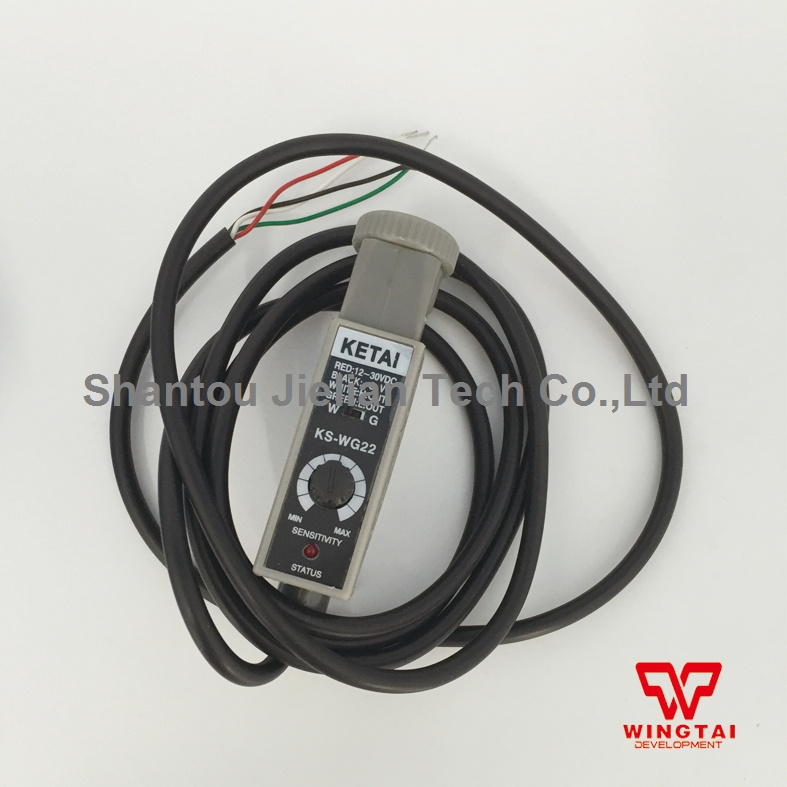

Ketai Color Marking Sensor KS-WG22 For Bag Making Machine
Place of origin:China
Brand:KETAI
Model:KS-WG22
Light source:WG(White and green)
Size:L88mm*H45.5mm*W22mm
Applicable:Packing machine,bag making machine,control need of printing machinery.
KS series mark detection photoelectric switch is the new products redesigned based on the original Z3N series.It has more reasonable internal circuit and optical structure, the product performance will be more stable.
KS series of mark detection photoelectric switch is issued by its own source oflight and scanning on the object surface. Different surface colors cause the different amount of light reflected back, so as to achieve the identification of the mark.
Feature:
1.Coaxial optical path design,more flexible on the surface with high reflection coefficient(Such as aluminum foil etc)
2.With blue, green, red and other light source, easy to distinguish different colors.
3.Small light ponit,extremely high resolution.
4.0.1-1ms higher response speed,suitable for various packing machine, bag making machine and the control need of printing machinery.
5.Excellent internal circuit design, resistance to all kinds of electromagnetic, stray light interference.Excellent performance, stable operation, error-free action.
6.With a sensitive adjustment knob, no need to use tools to adjust.
KS series technical parameter:
Detection Mode | Coaxial reflex | Detection Distance | 12mm±2mm |
Power Supply | DC10-30V±10%Corrugation≤10% | Current Consumption | <45mA |
Light Source Spectrum | Red,Green,Blue | Light Point | 0.5-1.5 or bar type |
Detection Angle | Light is perpendicular to the object surface ,allowable variation is ±15 | Circuit Protection Device | Vs voltage has reverse polarity protection, output short circuit protection and arbitrary wrong line protection |
Response Time | 0.1-1ms | Output Mode | Both bright flash and dark flash |
Output Indication | Red LED | Output Voltage | High level Vs-(≤1.5)Low level≤1.2V |
Currency Load | 100mA | Analogue Output | 0-10mA |
Sensitivity | Single loop adjustable | Ambient Light Resistance | incandescent lamp3000Lx sunlight10000Lx |
IP Rating | IP67 | Operating Temp | Operation-15ºC-65ºC Save-25ºC-80ºC |
Shell Material | Plastic/Metal | Lead-Out Line | D6mm,5 cores sheathed shielded cable,standard length 2m |
Connection method:Red--positive pole,black--negative pole,green--output(bright flash),white--out put(dark flash)
