Shantou Jielian Tech Co.,Ltd >> Made in Taiwan Fotek Mt-48V-E Temperature Regulator

Made in Taiwan Fotek Mt-48V-E Temperature Regulator

Made in Taiwan Fotek Mt-48V-E Temperature Regulator
Price: US $ 58-63/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: MT-48V-E
Protection Class: IP 65
Operating Voltage: 10-30VDC

Product Description

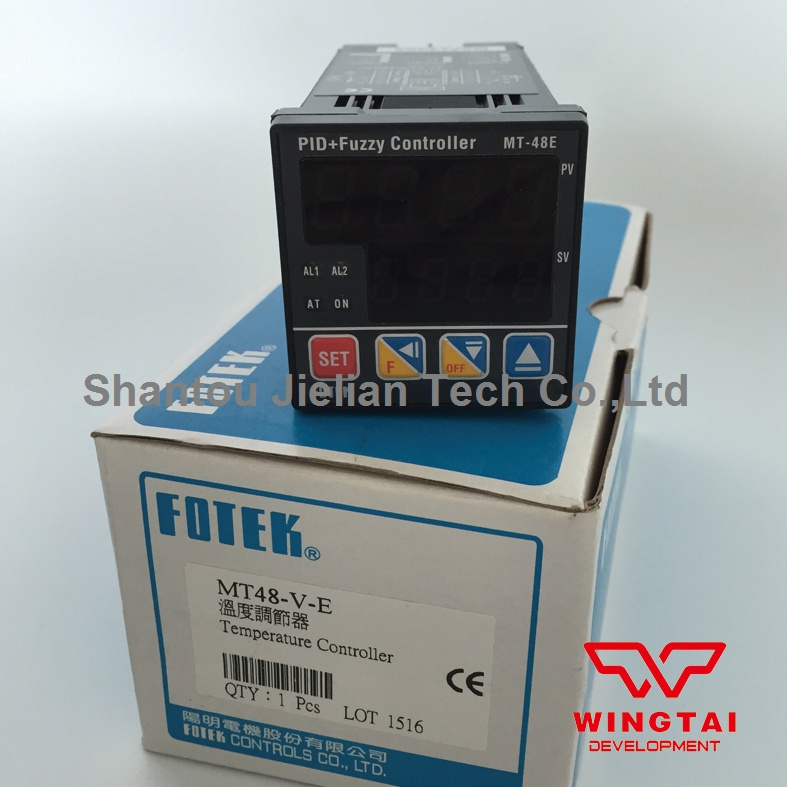

Made in Taiwan Fotek MT-48V-E Temperature Regulator



Model Number: MT48-V
Item Name: Intelligent Temperature Controller


Specification & CharacteristicData
Power Supply90 ~ 265 VAC 50/60 HZ
Power Consumption5VA max.
Sensor InputK / J / PT-100Ω selectable
Control OutputRelay3A / 250 VAC SPDT
Voltage12V / 50mA
Linear4~20 mA ; Load: 600Ωmax.
Alarm Output3A / 250 VAC SPDT
Control MethodFuzzy +PID or ON / OFF settable
Operating Circumstance-20°C ~ +75°C ; 25% ~ 85% RH
Display Accuracy±0.1% of FS + 1 digit
Cycle Time0 ~ 99 sec
Proportional Band (P)0 ~ 999
Integral Time (I)0 ~ 3999
Derivative Time (D)0 ~ 3999
Alarm Range-99 ~ 999
PV Sampling Time0.1 sec
Input Shift-99 ~ +99
AT Bias (TU)0 ~ 999
Memory MethodEEPROM
Insulation ResistanceOver 50MΩ / 500VDC
Dielecttric StrengthOver 2.5kV / 1 minute
EMC StandardESD: 8 KV Air Discharge (Level 3) / EN-61000-4-2
RF Interference: 10V/ M / ENV50140
Burst test: 2KV / EN61000-4-4





63
