| Prod Model: |
MT20-RE |
| Protection Class: |
IP 65 |
| Operating Voltage: |
10-30VDC |
Product Description

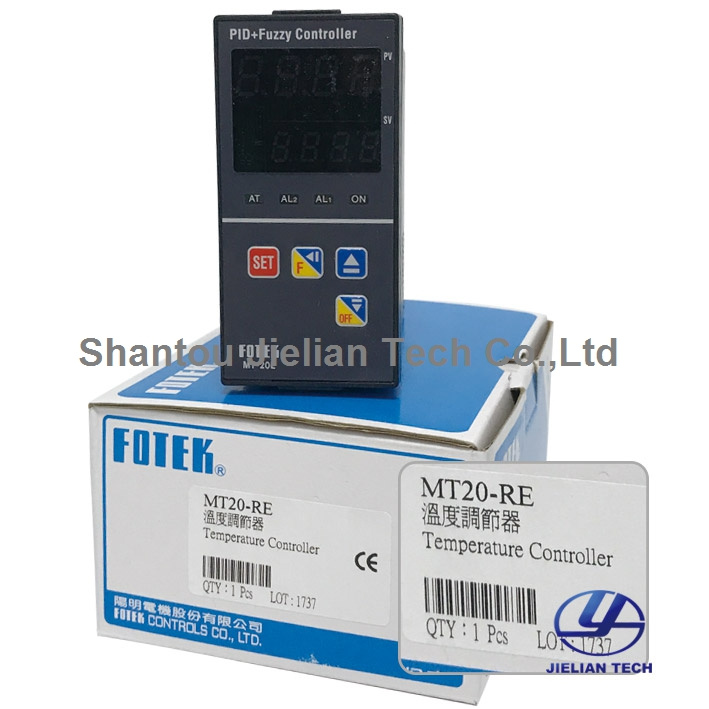

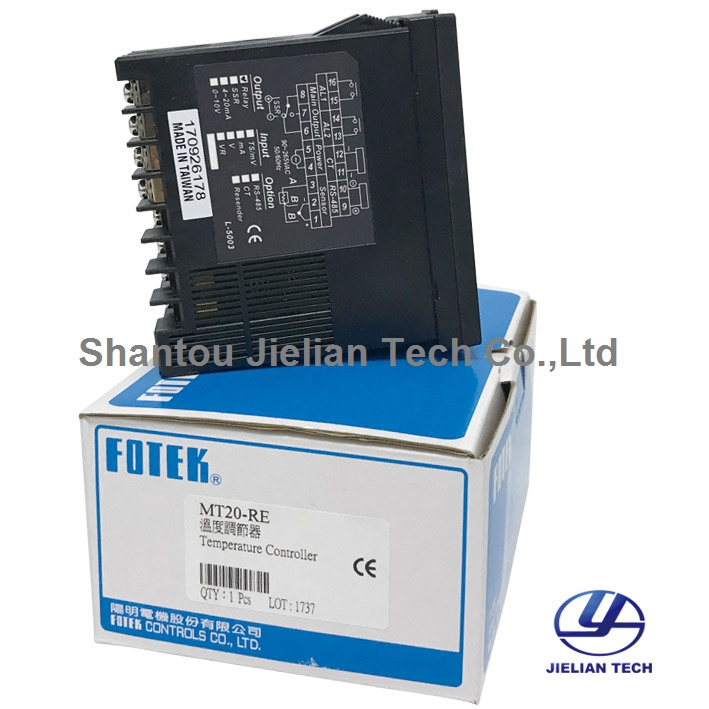

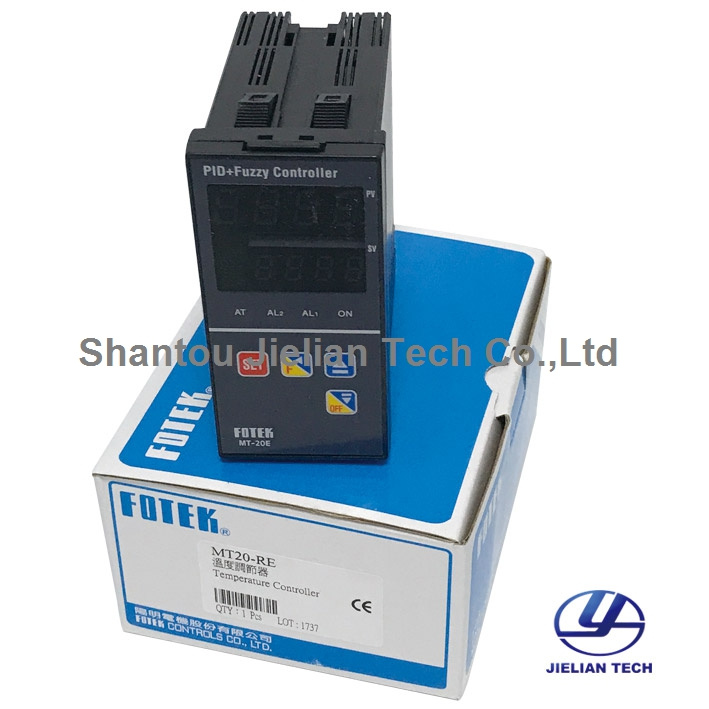

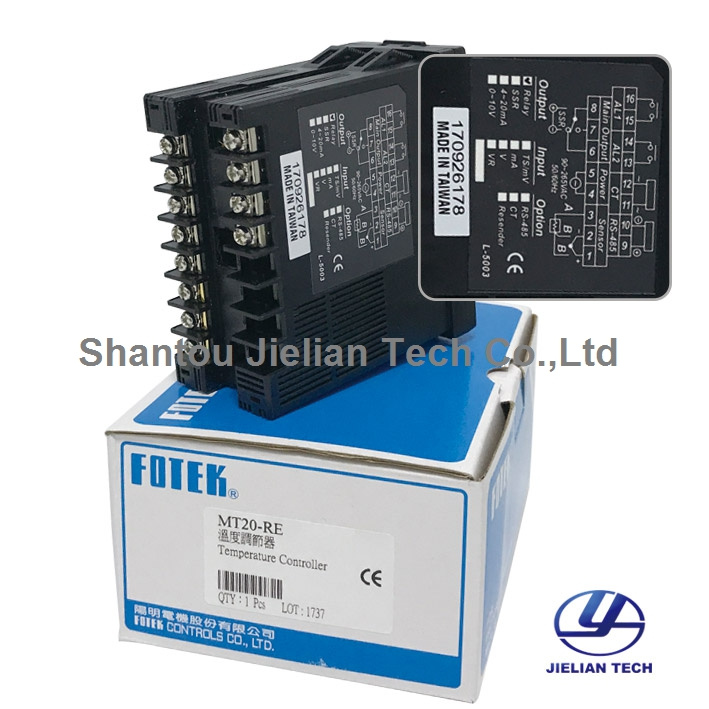

Taiwan Fotek MT20-RE Temperature Controller Fuzzy+ PID
Name:Temperature Controller MT-20-R/E
Size: 48 * 96
Brand: Taiwan FOTEK
Voltage: 220 v
Features:
1. Artificial intelligence FUZZY+PID microcomputer control mode.
2. AT automatic tuning function.
3. K, J and PT100 are free to switch and do not need to jump or replace the input module.
4. Fully equipped with 18 modes and dual alarm functions.
5, RUN/STOP/AT and other convenient functions, all in panel operation.
6. Equipped with RS-485 communication wires model (model is optional).
7. The whole machine is qualified for CE certification, safety and security.
Specification & Characteristic | Data |
Working voltage | 90 ~ 265 VAC 50/60 HZ |
Consumed current | 5VA max. |
Temperature sensing element | K / J / PT-100Ω selectable |
Control output | Electric relay | 3A / 250 VAC SPDT |
Voltage | 12V / 50mA |
Linear output | 4~20 mA ; Load: 600Ωmax. |
Alarm Output | 3A / 250 VAC SPDT |
Control mode | Fuzzy + PID or ON / OFF settable |
Work environment | -20°C ~ +75°C ; 25% ~ 85% RH |
Measurement accuracy | ±0.1% of FS + 1 digit |
action cycle | 0 ~ 99 sec |
Proportional band (P) | 0 ~ 999 |
Integral time (I) | 0 ~ 3999 |
Derivative time(D) | 0 ~ 3999 |
Alarm range | -99 ~ 999 |
Sampling time | 0.1 sec |
Automatic word correction | -99 ~ +99 |
Automatic calculus deviation(TU) | 0 ~ 999 |
Memory mode | EEPROM |
Insulation Resistance | Over 50MΩ / 500VDC |
Compressive strength | Over 2.5kV / 1 minute |
EMC standards | ESD: 8 KV Air Discharge (Level 3) / EN-61000-4-2
RF Interference: 10V/ M / ENV50140
Burst test: 2KV / EN61000-4-4 |
