Fuzzy+ Pid Fotek Mt72-R Temperature Controller for Chemical Industry
| Price: |
US $ 51-55/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
MT72-R |
| Protection Class: |
IP 65 |
| Operating Voltage: |
10-30VDC |
Product Description

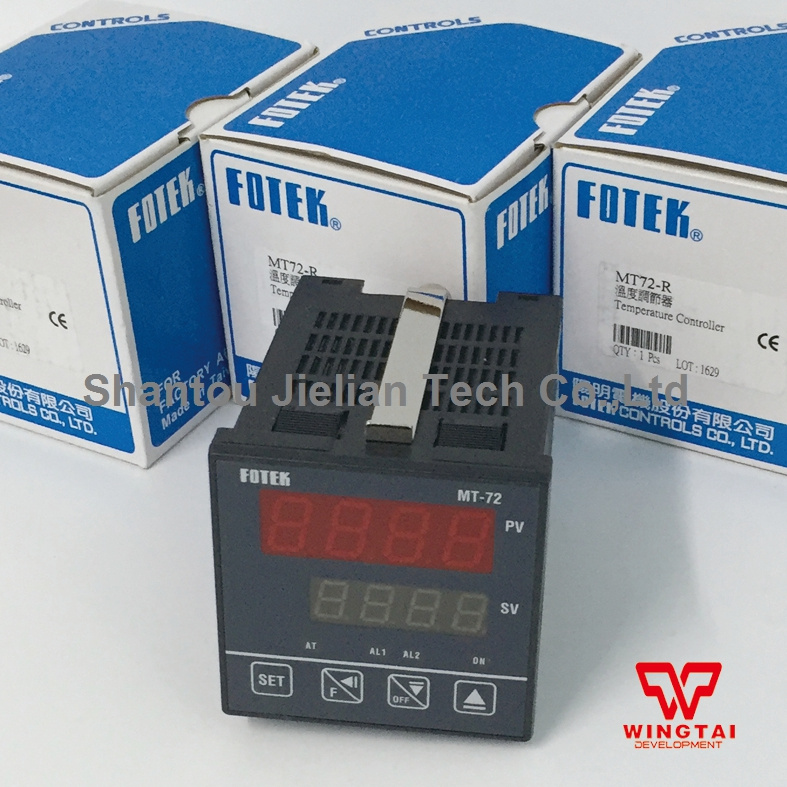

FUZZY + PID Fotek MT72-R Temperature Controller For Chemical Industry
MT series temperature controller is widely used in chemical, power plant, machinery and other temperature control industry. The Simple operation of dip setting can make the field operation easier and facilitates real-time monitoring of the current temperature with value temperature display.Technical parameter: | Specification&Characteristic | Date |
| Power supply | 90~265VAC 50/60Hz |
| Power consumption | 5VA max. |
| Sensor input | K/J/PT-100Ω selectable |
| Control output | Relay | 3A/250VAC SPDT |
| Voltage | 12V/50mA |
| Linear | 4~20mA; Load:600Ω |
| Alarm output | 3A/250VAC SPDT |
| Control method | Fuzzy+PID or ON/OFF settable |
| Operating circumstance | -20°C~+75°C ;25%~85%RH |
| Display accuracy | ±0.1% of FS + 1 digit |
| Cycle time | 0~99 sec |
| Proportional band(P) | 0~999 |
| Intergral time(I) | 0~3999 |
| Derivative time(D) | 0~3999 |
| Alarm range | -99~999 |
| PV sampling time | 0.1 sec |
| Input shift | -99~+99 |
| AT bias(TU) | 0~999 |
| Memory method | EEPROM |
| Insulation resistance | Over 50MΩ/500VCD |
| Dielecttric strength | Over 2.5kV/1 minute |
| EMC standard | ESD:8KV Air Discharge(Level 3)EN-61000-4-2 RF Interference:10V/M/ENV50140 Bursttest:2KV/EN61000-4-4 |
Feature:1.AI artificial intelligence FUZZY + PID microcomputer control mode
2.AT automatic tuning function
3.K, J, PT100 Ω can be converted freely and no need to use wire jumper or change input group
4.Various models With 18 kinds of patterns and Double set alarm function
5.With RUN/STOP/AT and so on facilitating function,only operating in the panel
6.Have RS-485 communication connection model.
7.All models are with CE, UL certified,ensuring security.
