Made in Taiwan Tc-96-AA Temperature Regulator
| Price: |
US $ 40-44/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
TC-96-AA |
| Protection Class: |
IP 67 |
| Operating Voltage: |
10-30VDC |
Product Description

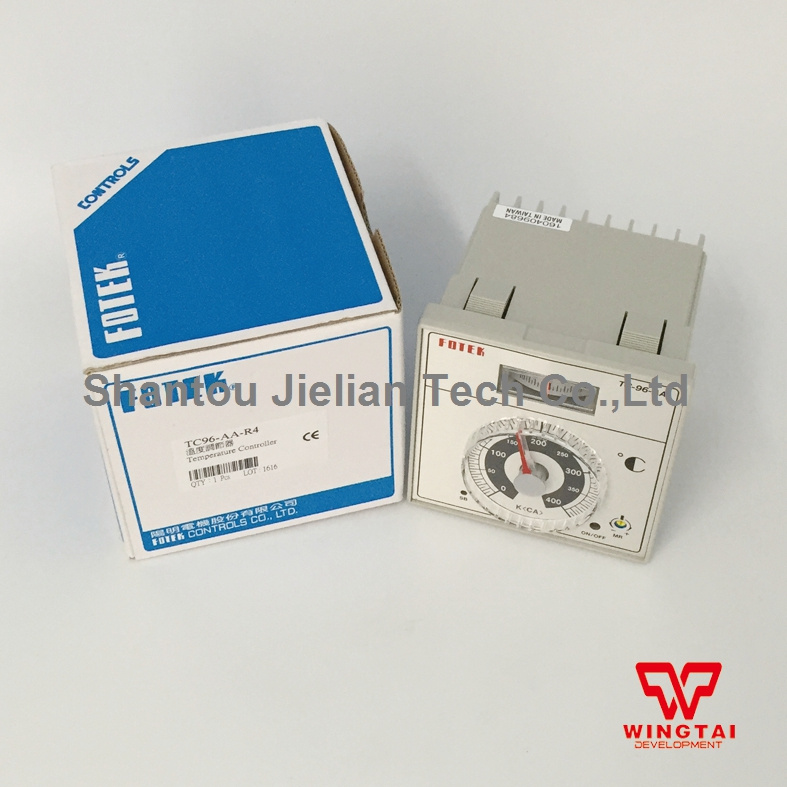

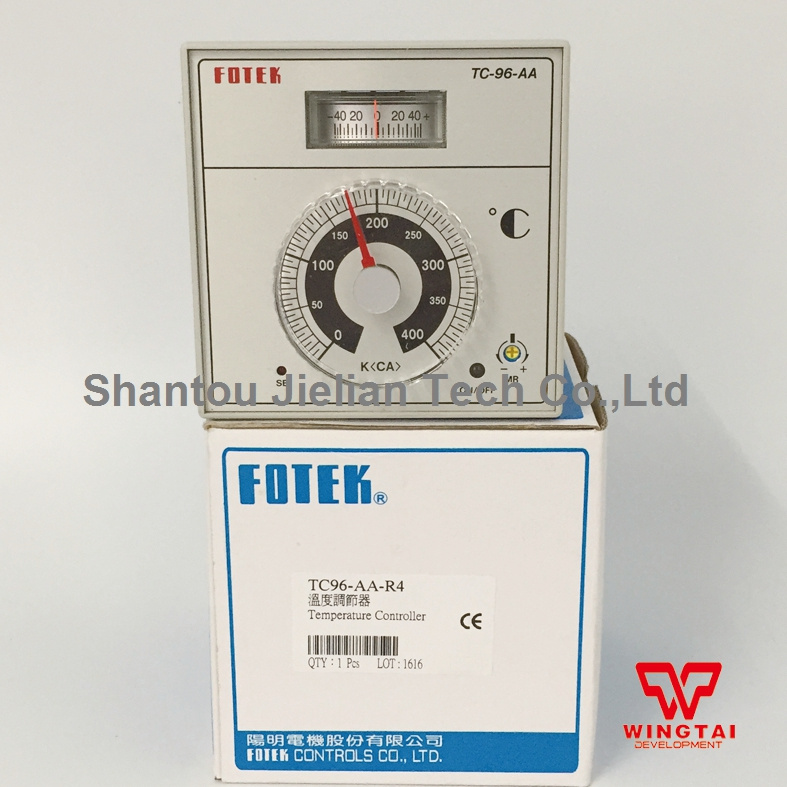

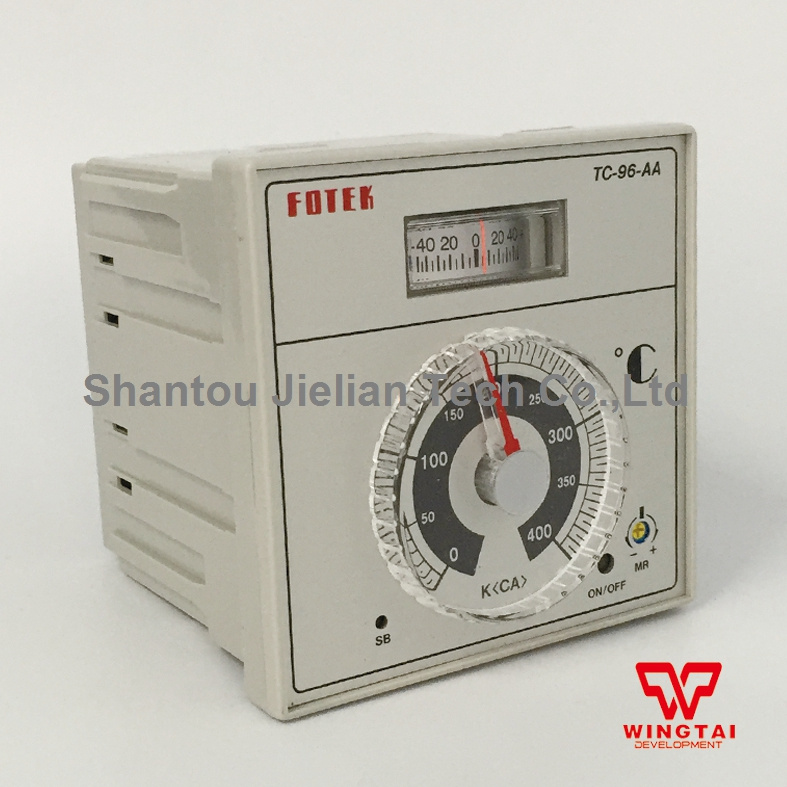

Made in Taiwan TC-96-AA Temperature Regulator
If customized:No
Brand :Fotek
Model:TC96-AA
Control type:Temperature
Tested Object:Oven,hot runner
Temperature range:0~400°C
IP Rating:IP67
Power Supply:110 / 220VAC
Control Method:P+D,ON/OFF or Proportion
Dimensions:96*96mm
Hole size:93*93(mm)
Feature:
1.High Rellability by S.M.T.&TQC.
2.With cold junction compensation,suited to operated at -20°C~+60°C.
3.All type with sensor break alarm LED.
4.With P+D control to control temperature easily.
5.High accuracy of Displaying & setting less than 0.5% of F.S.
6.With stand-by/over-heat alarm.(Optional).
7.With Heater break alarm.(Optional). | PRODUCT DESCRLPTLON |
| Alarm | Non | | Display | Method | Analog Deviation Meter | | Tolerance | 1.0% of F.S. | | Range | ±40°C | | Setting | Method | Trimmer(Variable Resister) | | Tolerance | 1.0% of F.S. | | Range | -50 ~ +50 , 0 ~ 100 , 0 ~ 200 , 0 ~ 400 , 0 ~ 600 or 0 ~ 1200 | | Sensor Type | K(CA) , J(IC) or PT-100Ω | | Output Method | Relay(5A/250VAC) , Voltage(20mA/12V) , Linear(4~20mA) | | Control Method | P+D ON/OFF , ON/OFF or Proportion | | Proportion Band | Appro 2.5% of F.S | | Cycle Time | 2 Sec or 20Sec (ON+OFF) | | Manual Reset | Trimmer: Range±10°C | | Unit of Degree | °C or °F | | Electrical Data | | Power Supply | 110 / 220VAC ±20% 50/60Hz | | Current Consumption | 2.5VA max. | | Insulation Resistance | Over 50MΩ/500VDC Between Power And Another Terminal | | Dielectrical Strength | Over 2.5KV /1min Between Power And Another Terminal | | Mechanical Data | | Operation Temp./Hum | -20°C ~ +60°C ; 35%~85% RH | | Vibration Resistance | 10 ~ 55Hz / 1.5mm , 2Hrs in X.Y.Z Direction | | Panel Thickness | 1.0 ~ 8.0mm |
|
| |
